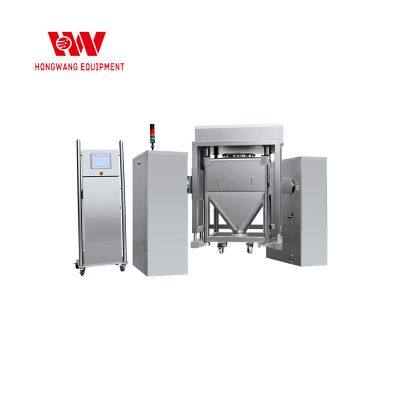

Help CenterZTH Automatic Lifting Hopper Mixer
Product Spotlights
Related Products
Application
The machine can automatically complete all actions including lifting, clamping, mixing, lowering, etc. An automatic lifting hopper mixer and several mixing hoppers of different specifications can meet the mixing requirements of large batches and diversified varieties of products. It is an ideal machine for mixing in pharmaceutical plants. It is also widely used in such industries as medicine, chemical industry, food, etc.
Principle
The machine is composed of machine base, gyrator, driving system, lifting system, braking system and control system. When it works, push the mixing hopper into the gyrator. Press the "confirm" button on the touch screen to automatically lift the mixing hopper to the designated position and automatically clamp it. After the pressure sensor receives the clamping signal, the mixing system will be driven to work and mixing will be carried out according to the set time and rotation speed. After the set parameters are reached, the gyrator will automatically stop vertically. At the same time, the braking system works and the mixing is finished. Then the lifting system will work. The mixing hopper in the gyrator will fall to the designated position and stop automatically, and process data will be printed. Then the mixing hopper is pushed out and transferred to the next procedure.
