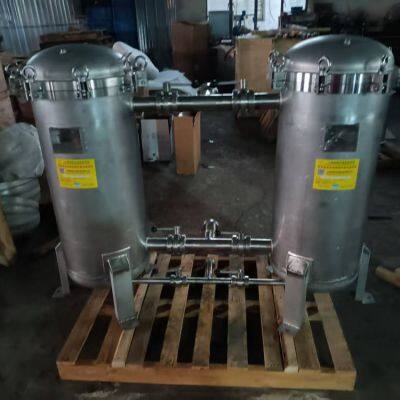

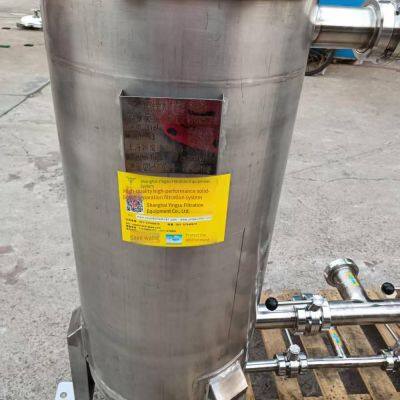

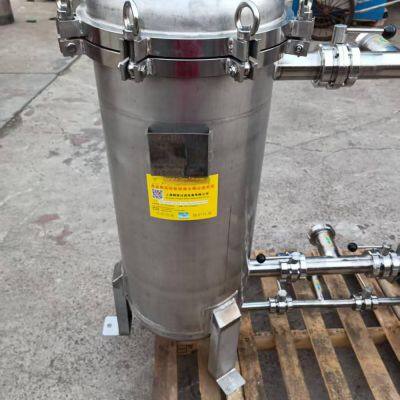

Help CenterPipe Filter Ylf-219-304-f50-400m Double Bag Filter, Etc.
Related Products
-
Air Storage Tank Ydf-s2-304-f50 Produced by Yingsu, Ytf-0110-316-f65NegotiableMOQ: 0 Piece -
Yjf-219-316l-k50 Scraper Self-cleaning Filter, Ydf-bn2-316-lw63p0.6NegotiableMOQ: 0 Piece
-
Yjf-0310-316-k80, Yjf-219-316l-k50 Yingsu Precision Filter, Stainless Steel FilterNegotiableMOQ: 0 Piece
-
8252510890 Stainless Steel Pipe Filter, Precision Filter Yjf-0110-304-20umNegotiableMOQ: 0 Piece
-
g4 Primary Bag Filters, Medium Efficiency Bag Filters, Primary Air Filters Produced by Yingsu, Etc.NegotiableMOQ: 0 Piece
Pipe filters are important devices installed on pipes to remove impurities from fluids, ensuring fluid purity and the normal operation of equipment. They play a crucial role in many industrial fields and daily life scenarios.
Definition and Function of Pipe Filters
A pipe filter is a device used to remove tiny particulate impurities from liquids or gases, usually composed of multiple layers of filter media. Its core function is to effectively intercept fine particles in the medium through filter elements of different materials and structures, thereby ensuring the stability of subsequent processes and product quality. In various industrial productions, the purity of the fluid in the pipeline is of great importance. The presence of impurities may cause equipment wear, blockage, affect product quality, and even lead to safety accidents. The pipe filter acts like a guard, blocking impurities outside and ensuring the purity of the fluid, enabling the entire system to operate normally and efficiently.
Structure of Pipe Filters
Pipe filters are mainly composed of a filter housing, filter elements, filter screens, flanges, and sewage outlets. The housing is usually made of stainless steel, which has the characteristics of corrosion resistance and high temperature resistance, and can adapt to various harsh working environments to protect the internal filter elements and filter screens. The filter element is the core component of the pipe filter. According to different filtering media and requirements, filter elements of different materials and precision can be selected. The filter screen is composed of multiple layers of filter nets of different materials, used to intercept solid particles and impurities in the fluid. The flange is used to connect various parts of the filter, ensuring the tightness and stability of the filter and preventing fluid leakage. The sewage outlet is used to discharge the impurities and dirt intercepted during the filtering process, facilitating regular cleaning and maintenance.
Working Principle of Pipe Filters
The filtering principle of pipe filters mainly uses the filter screen to directly intercept solid impurities in the fluid. When the fluid enters the pipe filter, it first passes through the coarse filter screen for preliminary filtration to remove larger particulate impurities. Then the fluid enters the fine filter screen for fine filtration to remove smaller particles and impurities. Due to the high precision of the filter screen, it can effectively remove tiny particles and impurities in the fluid, improving the purity and quality of the fluid. During the filtering process, impurities and dirt will gradually accumulate on the filter screen, causing the filtering efficiency of the screen to decline. In order to maintain the filtering effect and service life of the filter, the filter screen needs to be cleaned and replaced regularly. During cleaning, methods such as backwashing or chemical cleaning can be used to clean the impurities and dirt accumulated on the filter screen.
Common Types of Pipe Filters
Cartridge-type Precision Filters
Cartridge-type precision filters use filter cartridges as filter elements, with advantages such as high filtering precision, large throughput, and strong dirt-holding capacity. Their filter cartridges are usually made of materials such as PP melt-blown, wire-wound, and folded, and the appropriate precision and material can be selected according to different filtering requirements. They are widely used in liquid filtration in industries such as chemical, pharmaceutical, and food.
Bag-type precision filter
The bag-type precision filter uses filter bags as filter elements, featuring convenient replacement and a large filtration area. The filter bags are made of various materials, such as polypropylene and polyester, which can be selected according to different fluid properties and filtration requirements. It is commonly used in fields such as water treatment and oil filtration.
Multi-layer folded filter element filter
The filter element of the multi-layer folded filter element filter adopts a multi-layer folded structure, which increases the filtration area and improves the filtration efficiency. It can filter out most of the particles, so it is widely used in fine filtration and sterilization processes, and is more commonly used in industries with high filtration accuracy requirements, such as the pharmaceutical and microelectronics industries.
Technical parameters of pipeline filters
Filtration capacity
The filtration capacity is usually measured in T/H (cubic meters filtered per hour). The common filtration capacity range of pipeline filters is between 0.05 - 20T/H. Different application scenarios have different requirements for filtration capacity. For example, large-scale industrial production may require filters with a large filtration capacity, while small laboratory equipment has relatively lower requirements for filtration capacity.
Operating pressure
The operating pressure of the filter is generally between 0.1 - 0.6 mpa. When selecting a pipeline filter, it is necessary to determine the appropriate filter according to the actual pressure of the pipeline system to ensure that it can withstand the corresponding pressure and operate normally.
Number of filter elements in the filter machine
The common numbers of filter elements in the filter machine are 1, 3, 5, 7, 9, 11, 13, 15, etc. The number of filter elements affects the filtration area and filtration capacity of the filter. The more filter elements there are, the larger the filtration area and the stronger the filtration capacity.
Operating temperature
The operating temperature of the filter is generally between 5 - 55°C. In different working environments, the temperature of the fluid varies. Therefore, it is necessary to select a pipeline filter that can adapt to the corresponding temperature range to ensure its performance and service life.
Application fields of pipeline filters
Pharmaceutical industry
In pharmaceutical production, the requirements for the purity and sterility of drugs are extremely high. Pipeline filters are used in processes such as the filtration of water for injection and the filtration of medicinal liquids, which can effectively remove impurities such as tiny particles and microorganisms, ensuring the quality and safety of drugs.
Food industry
In the food processing process, pipeline filters can be used for the filtration of beverages and edible oils. For example, in beverage production, they remove impurities such as suspended solids and sediments to ensure the clarity and taste of beverages; in edible oil filtration, they remove impurities and odors to improve the quality of edible oils.
Chemical industry
Chemical production involves the processing and treatment of various chemical substances. Pipeline filters are used for the filtration of chemical raw materials and reaction liquids, preventing impurities from affecting chemical reactions and product quality. They can also protect chemical equipment and extend its service life.
Water treatment industry
In water treatment processes such as sewage treatment and drinking water purification, pipeline filters are indispensable equipment. It can remove impurities such as sediment, rust, and algae from water, improve water quality, and meet the needs of different users.
Electronics manufacturing industry
Electronics manufacturing has very high requirements for the purity of the production environment and raw materials. Pipeline filters are used for cleaning fluid filtration, coolant filtration, etc., to ensure the production quality of electronic components and reduce the defective rate caused by impurities.
Selection and maintenance of pipeline filters
Selection points
When selecting a pipeline filter, multiple factors need to be comprehensively considered. First, select a filter with suitable materials and structures according to the properties of the fluid, such as pH, temperature, viscosity, etc. Determine the filtration accuracy and filtration volume according to the filtration requirements to ensure that it can meet the needs of actual production. Also consider factors such as the brand, quality, price, and after - sales service of the filter.
Maintenance points
To ensure the long - term stable operation of the pipeline filter, regular maintenance is required. Regularly check the status of the filter element to avoid blockage. When the filter element is severely blocked, it should be replaced in time. Select a suitable sealing method and material according to the use environment to prevent leakage. Clean the filter screen according to the specified method and cycle. Methods such as backwashing or chemical cleaning can be used to keep the filter screen clean and extend the service life of the filter.
Pipeline filters play an important role in industrial production and daily life. Understanding knowledge about its structure, principle, type, application, and maintenance helps us correctly select and use pipeline filters, improve production efficiency, and ensure product quality.
