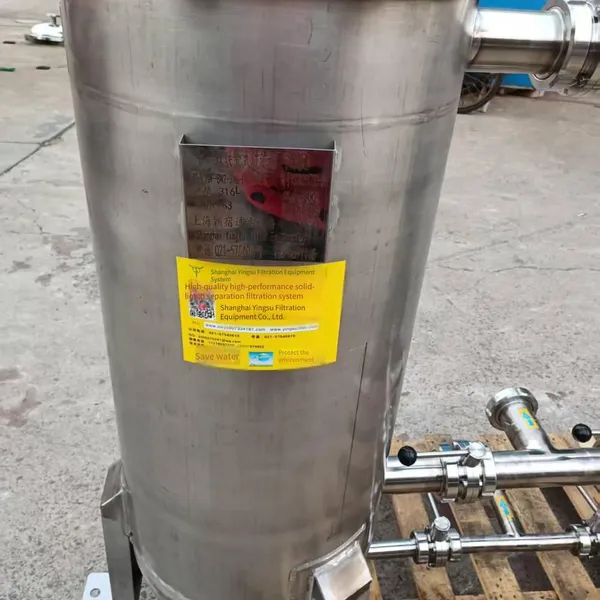

Help CenterParallel Bag Filter, Double Bag Filter, Model Ydf-bn2-316-lw63p0.6
Related Products
-
Pipe Filter Ylf-219-304-f50-400m Double Bag Filter, Etc.NegotiableMOQ: 0 Set -
Air Storage Tank Ydf-s2-304-f50 Produced by Yingsu, Ytf-0110-316-f65NegotiableMOQ: 0 Piece
-
Yjf-219-316l-k50 Scraper Self-cleaning Filter, Ydf-bn2-316-lw63p0.6NegotiableMOQ: 0 Piece
-
Yjf-0310-316-k80, Yjf-219-316l-k50 Yingsu Precision Filter, Stainless Steel FilterNegotiableMOQ: 0 Piece
-
8252510890 Stainless Steel Pipe Filter, Precision Filter Yjf-0110-304-20umNegotiableMOQ: 0 Piece
The double-bag filter is a highly efficient filtration device widely used in the industrial field. It is optimized and upgraded on the basis of the traditional bag filter, with a unique structure and excellent performance, capable of meeting the diverse filtration needs of different industries.
Structurally, the double-bag filter mainly consists of two filter tanks, bag filters, inlet and outlet pipes, valves and other components. The two filter tanks are connected in parallel. Through reasonable pipe connections and valve controls, they can be used alternately or simultaneously. This design allows the filter to continue normal operation in one tank while the other tank is being cleaned or the filter bag is being replaced, thus ensuring the continuity of the entire filtration process and greatly improving production efficiency. The filter bag is the core filtration component of the double-bag filter, usually made of materials such as polypropylene, polyester, and nylon. These materials have good chemical stability and filtration performance, and the appropriate precision and material can be selected according to different filtration requirements.
In terms of working principle, the double-bag filter uses physical interception to remove impurities in liquids or gases. When the fluid enters the filter, it first enters one of the filter tanks through the inlet pipe and then is filtered through the filter bag. The pores of the filter bag can effectively intercept solid particles, suspended solids, microorganisms and other impurities in the fluid, allowing the clean fluid to flow out of the outlet pipe after passing through the filter bag. As the filtration process progresses, impurities will gradually accumulate on the filter bag, resulting in an increase in filtration resistance. When it reaches a certain level, the fluid can be introduced into the other filter tank to continue filtration by switching the valve, and at the same time, the tank with accumulated impurities can be cleaned or the filter bag can be replaced. When cleaning the filter bag, methods such as backwashing and chemical cleaning can be used to remove the impurities on the filter bag and restore its filtration performance.
The double-bag filter has many advantages. It has high filtration precision. Different precision filter bags can be selected according to different needs, which can effectively remove tiny particle impurities and meet the needs of industries with high requirements for filtration precision, such as the pharmaceutical, food, and electronics industries. It has a large processing capacity. Due to the double design, the two tanks can work simultaneously or alternately, greatly improving the filtration efficiency and processing capacity. It is easy to operate. The alternate use and cleaning of the tanks can be easily achieved by switching the valves, reducing the labor intensity of the operators. It has low maintenance costs. The replacement of the filter bag is relatively simple and can be reused, reducing the operating costs.
In terms of application fields, the double-bag filter is widely used in many industries such as chemical, pharmaceutical, food, water treatment, and electronics. In the chemical industry, it can be used for the filtration of various chemical raw materials, solvents, coatings, etc., to remove impurities and ensure product quality. In the pharmaceutical industry, it can be used for the filtration of water for injection, oral liquids, bulk drugs, etc., to ensure the safety and purity of drugs. In the food industry, it can be used for the filtration of beverages, wines, edible oils, etc., to improve the taste and quality of food. In the water treatment industry, it can be used for the pretreatment of tap water, industrial wastewater, seawater desalination, etc., to remove suspended solids and impurities in water. In the electronics industry, it can be used for the filtration of cleaning fluids, electroplating solutions, etc., to ensure the production quality of electronic products.
The double-bag filter plays an important role in industrial production with its unique structure, high-efficiency filtration performance, and wide range of application fields. With the continuous progress of technology and the continuous development of the industry, the performance and application scope of the double-bag filter will also be continuously improved and expanded.
