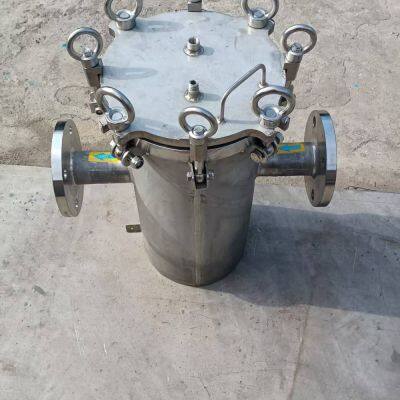

Help CenterYlf-219-304-f50-400m Basket Filters Produced by Yingsu, Pipeline Basket Filters, Etc.
Related Products
-
Parallel Bag Filter, Double Bag Filter, Model Ydf-bn2-316-lw63p0.6NegotiableMOQ: 0 Piece -
Pipe Filter Ylf-219-304-f50-400m Double Bag Filter, Etc.NegotiableMOQ: 0 Set
-
Air Storage Tank Ydf-s2-304-f50 Produced by Yingsu, Ytf-0110-316-f65NegotiableMOQ: 0 Piece
-
Yjf-219-316l-k50 Scraper Self-cleaning Filter, Ydf-bn2-316-lw63p0.6NegotiableMOQ: 0 Piece
-
Yjf-0310-316-k80, Yjf-219-316l-k50 Yingsu Precision Filter, Stainless Steel FilterNegotiableMOQ: 0 Piece
Pipe basket filters are common and practical filtration devices that play an important role in many industrial fields. They are mainly used in pipeline systems to filter fluids, removing impurities and solid particles to ensure the purity of the fluid, thereby guaranteeing the normal operation of the entire pipeline system and related equipment.
Structural Features
Pipe basket filters are mainly composed of a shell, a filter basket, and other parts. The shell is usually made of strong and durable materials such as carbon steel and stainless steel. Carbon steel has high strength and certain corrosion resistance, with relatively low cost, making it suitable for general industrial environments. Stainless steel has better corrosion resistance and can adapt to harsher working conditions, especially in industries with high requirements for hygiene and corrosion resistance, such as the food and pharmaceutical industries. The filter basket is the core component of the filter. It usually has a basket-shaped structure and is made of filter screens of different specifications. The filter screens are made of various materials, including stainless steel wires and copper wires. The pore size of the filter screen determines the filtration accuracy of the filter, which can be selected according to actual needs.
Working Principle
When the fluid enters the pipe basket filter, it first contacts the filter basket. Due to the interception effect of the filter screen, impurities and solid particles in the fluid are blocked inside the filter basket, while the clean fluid continues to flow in the pipeline through the filter screen. As the filtration process continues, impurities in the filter basket will gradually accumulate. When the accumulation reaches a certain level, the pressure difference between the inlet and outlet of the filter will increase. At this time, the filter basket needs to be cleaned or replaced to ensure the normal operation of the filter.
Application Fields
Petrochemical Industry
In the processes of petroleum refining and chemical production, the fluid in the pipeline often contains various impurities and solid particles. Pipe basket filters can be installed at different positions in the pipeline to filter crude oil, chemical raw materials, products, etc., preventing impurities from entering downstream equipment such as pumps, valves, and heat exchangers, avoiding equipment wear and blockage, and ensuring the stable operation of the production process.
Food and Beverage Industry
The production process of food and beverages has extremely high requirements for hygiene and quality. Pipe basket filters can be used to filter raw material liquids, additives, etc., removing impurities, suspended solids, microorganisms, etc., to ensure the purity and taste of the products. For example, in the beer brewing process, the filter can remove impurities such as wheat grains from the wort; in beverage production, it filters syrup, pigments, etc., to ensure the quality of the beverages.
Water Treatment Industry
Whether it is municipal water supply, sewage treatment, or industrial circulating water systems, pipe basket filters can play an important role. In the water supply system, the filter can remove impurities such as sediment and rust from the water to improve water quality; in sewage treatment, it pre - treats the influent water to reduce the burden on subsequent treatment equipment; in industrial circulating water systems, it filters impurities in the water to prevent scaling and corrosion of pipes and equipment.
Advantages and disadvantages
Advantages
The pipeline basket filter features a simple structure and convenient operation. Its installation and maintenance are relatively easy, and general operators can operate it after simple training. It has a large filtration area, can hold more impurities, and has high filtration efficiency. Moreover, the filter screen basket can be cleaned and replaced as needed, with a long service life and low operating cost.
Disadvantages
As the filtration time extends, the accumulation of impurities in the filter screen basket will increase the filtration resistance. The filter screen basket needs to be cleaned or replaced regularly; otherwise, it will affect the filtration effect and the normal flow of the fluid. Its filtration effect on some tiny particles may be inferior to that of some high-precision filtration equipment.
Selection points
Filtration accuracy
Select the appropriate filtration accuracy according to actual needs. Different application scenarios have different requirements for filtration accuracy. For example, in some industries with high requirements for product quality, filters with higher filtration accuracy should be selected; while in some occasions with relatively low requirements for impurity content, filters with lower filtration accuracy can be selected.
Material
Consider the properties of the fluid and the working environment, and select the appropriate materials for the shell and filter screen. For fluids with strong corrosiveness, corrosion-resistant materials should be selected; for high-temperature and high-pressure working environments, materials with corresponding high-temperature and high-pressure resistance performance are required.
Flow rate
Select a filter of the appropriate specification according to the flow rate of the pipeline system. The flow rate of the filter should match that of the pipeline system to ensure the normal operation of the filter and avoid poor filtration effects or equipment damage caused by excessive flow.
With its unique structure, working principle, and diverse applications, the pipeline basket filter plays an irreplaceable role in various fields of industrial production and daily life. In actual use, we need to select and use the filter reasonably according to specific circumstances to give full play to its advantages and ensure the safe and stable operation of the pipeline system.
