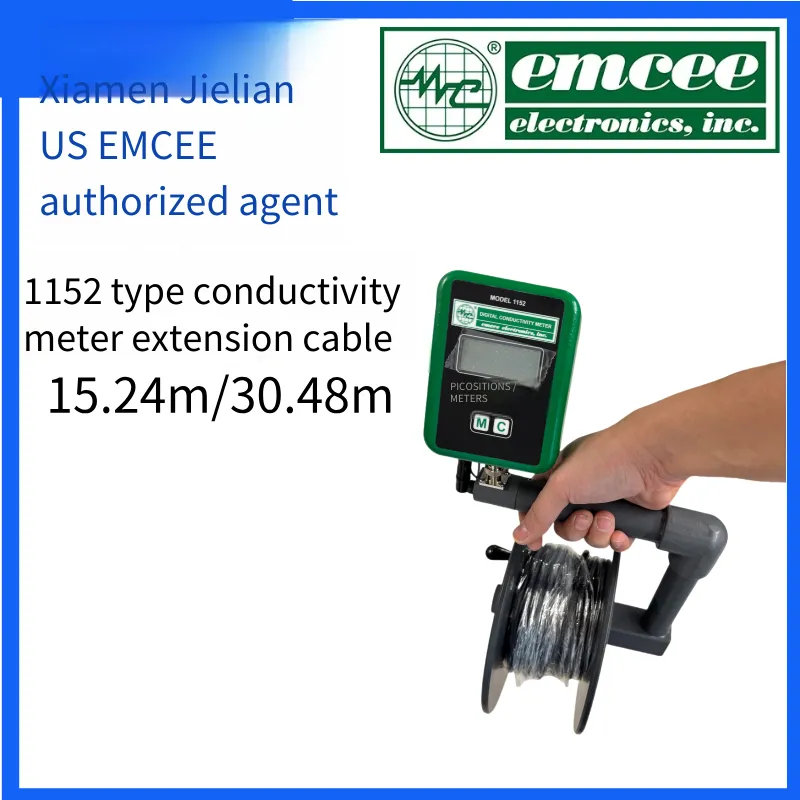

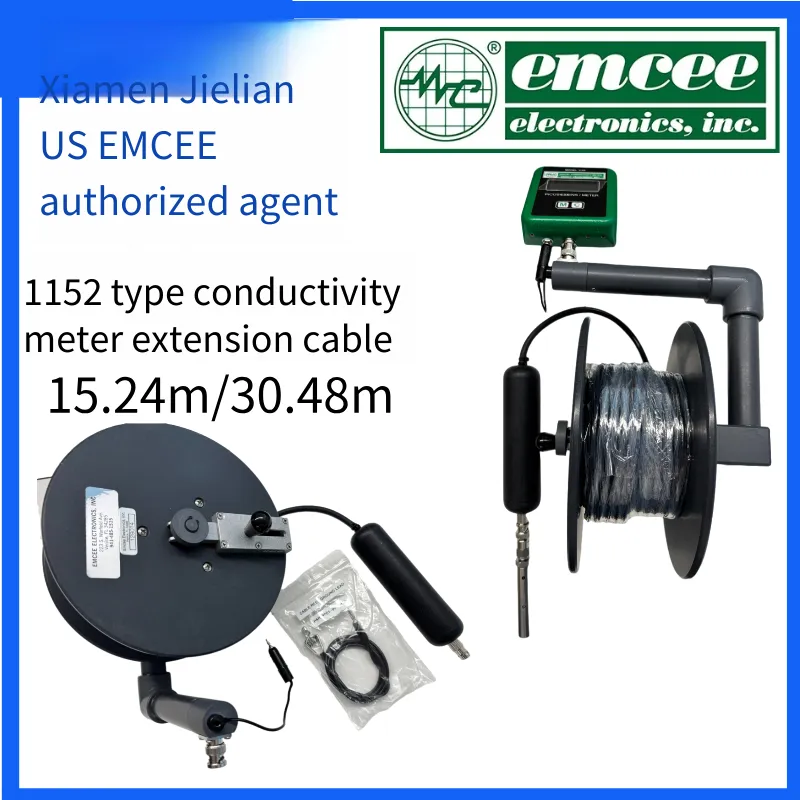

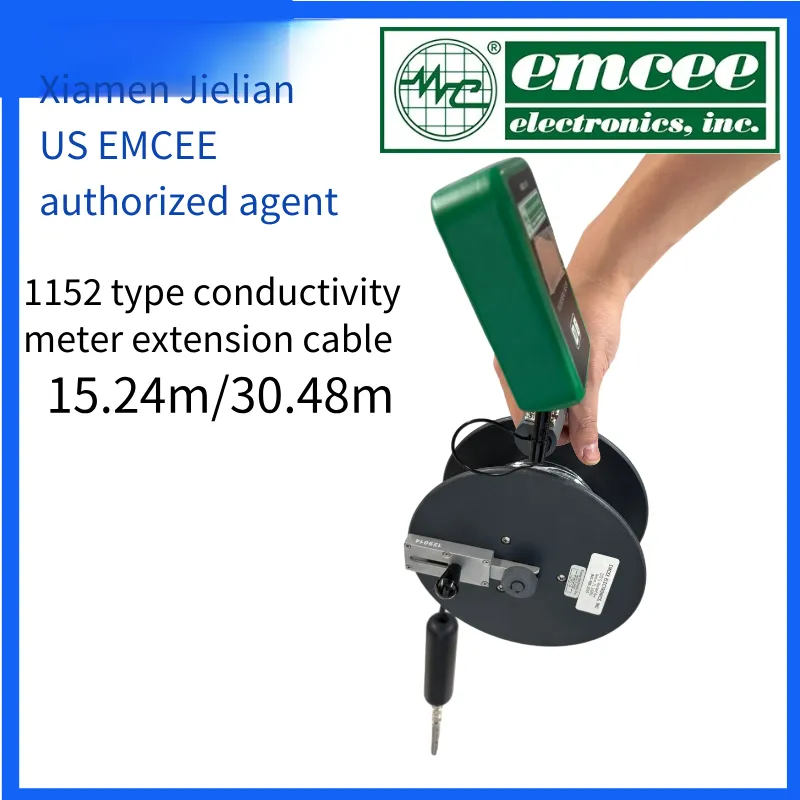

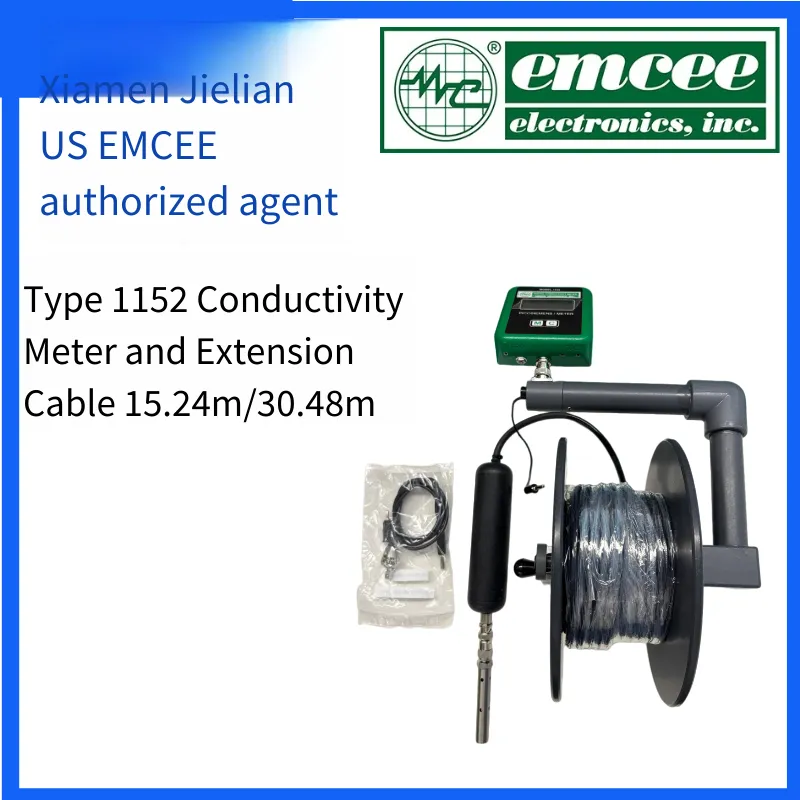

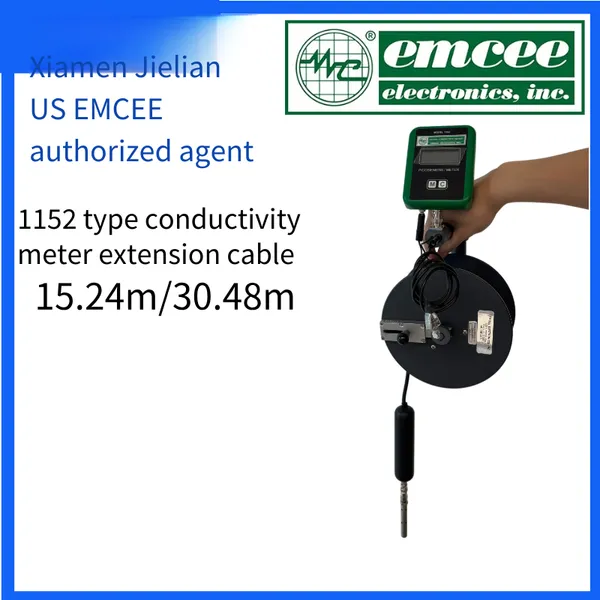

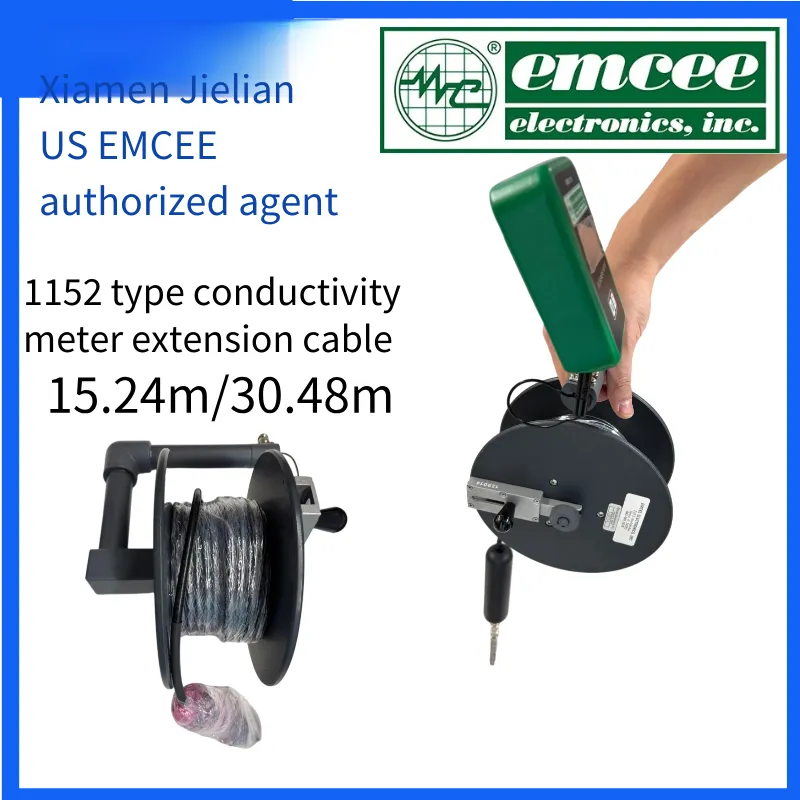

Cable Reel Kit for EMCEE 1152 Conductivity Meter from the United States
The Cable Reel Kit for the EMCEE 1152 Digital Conductivity Meter, which is sold by Xiamen Jielian Instrument & Equipment Technology Co., Ltd. as an authorized agent, is a supporting accessory specifically designed for on-site measurement of fuel conductivity in storage tanks, tank trucks, or deep wells. The core information is as follows:
✅ Model and Length
Model |
Cable Length |
Applicable Scenarios |
152-06-0003 |
50 ft (approx. 15 m) |
Small and medium-sized storage tanks, short-distance measurement |
152-06-0004 |
100 ft (approx. 30 m) |
Large storage tanks, deep wells, or long-distance measurement |
✅ Structure and Function
Reel body: Metal or reinforced plastic housing with a hand crank and cable guide port for easy and quick cable retraction and extension.
Cable type: Triaxial or composite shielded cable with an outer diameter of approximately 6 mm and a rated voltage of 300 V.
Counterweight design: The end of the cable is equipped with a stainless steel or lead counterweight to ensure the probe sinks vertically and avoid entanglement.
Connector: Matches the probe interface of the EMCEE 1152 main unit and has waterproof and anti-corrosion capabilities.
Operating temperature: -20 ℃ to +60 ℃, suitable for hydrocarbon fuel environments such as aviation kerosene and diesel.
✅ Application Scenarios
Used in conjunction with the Model 1152 Conductivity Meter, complying with ASTM D2624 standards.
Used to measure low-conductivity liquids such as jet fuel, diesel, and lubricating oil to prevent the risk of explosion caused by static electricity accumulation.
Suitable for hazardous areas such as refineries, airport oil depots, and ship fuel tanks (Intrinsic safety certification: UL/CSA/LCIE).
✅ Selection Suggestions
If the measurement depth ≤15 meters, choose 152-06-0003;
If the measurement depth is 15–30 meters or a long distance needs to be spanned, choose 152-06-0004;
If you need a longer cable or a special interface, you can contact the customer service for customization.
