TS 35069 LCD 1x8 ALPHANUM ASSY KIT (1×8 Character Alphanumeric LCD Display Assembly) Honeywell/Honeywell Gtex Rtex Otex LCD Display Assembly Honeywell/Honeywell TS 35069 UTI Special LCD Screen
Product Overview

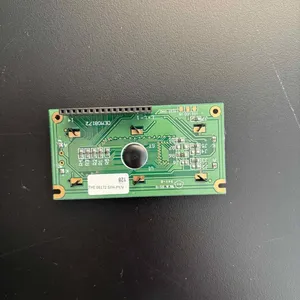

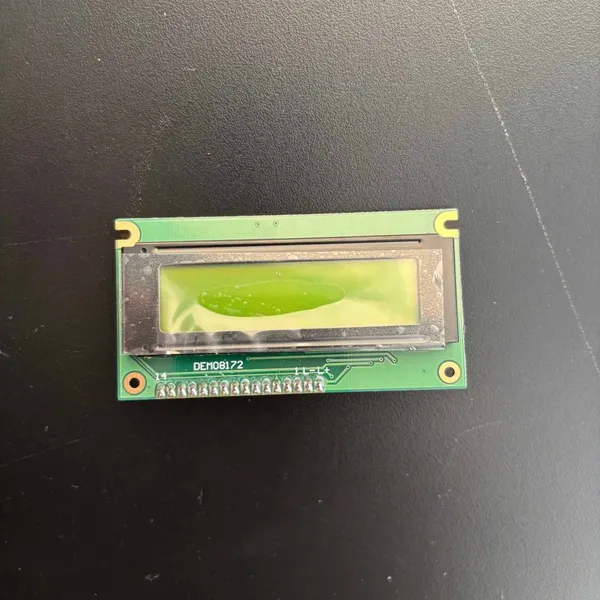

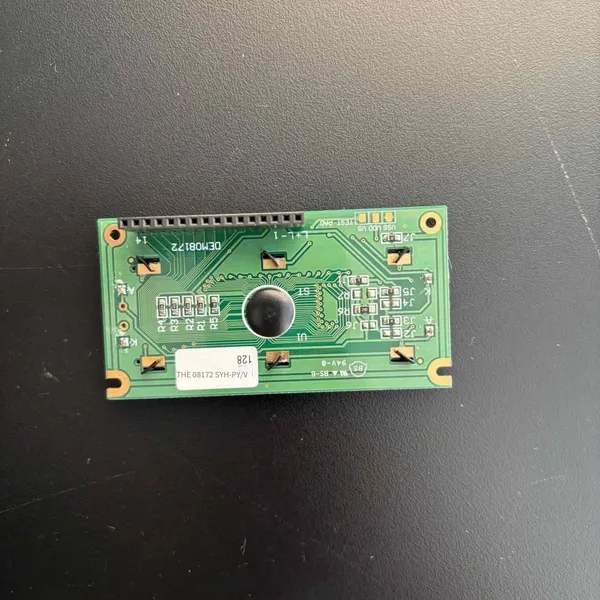

TS 35069 is a 1-row 8-character alphanumeric LCD display module assembly kit manufactured by Honeywell. It is mainly used in the UTImeter (Tank Gauge) series of equipment, especially in marine industrial liquid level measurement equipment such as HERMetic UTImeter Gtex/Rtex.
Main Specifications
Parameter |
Specification |
Model |
TS 35069 |
Manufacturer |
Honeywell / Honeywell Enraf |
Display Type |
LCD Liquid Crystal Display |
Display Format |
1 Row × 8 Characters (1x8) |
Character Type |
Alphanumeric |
Product Category |
Display Module Assembly Kit |
Application Area |
Marine Industrial Liquid Level Measurement Equipment |
Application Scenarios
This LCD display module is mainly used as the display component for the following equipment:
HERMetic UTImeter Gtex - Hermetic Tank Gauge
HERMetic UTImeter Rtex - Portable Liquid Level Measurement Equipment
Other positions in the parts list of Honeywell/Enraf marine measurement instruments

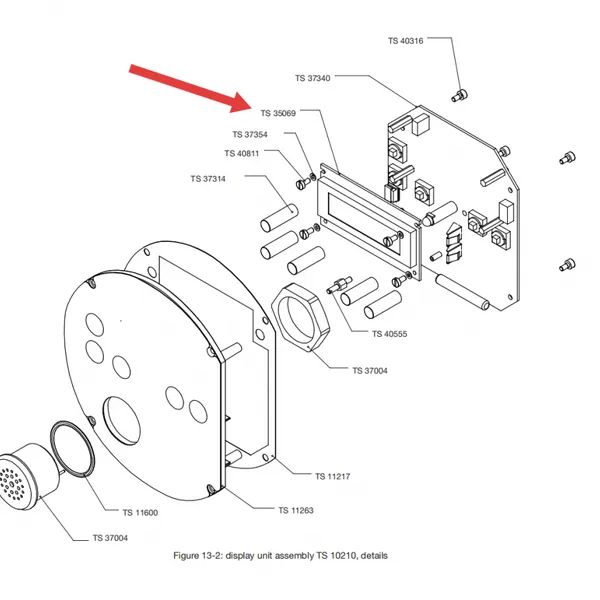

In the spare parts list of UTImeter equipment, TS 35069 is usually used in conjunction with the following components:
TS 37340 - PCB Display UTImeter Tested Assy (Display Circuit Board)
TS 11263 - Front face assembly (Front Panel Assembly)
TS 37004 - Buzzer
TS 37314 - Push Button Distancer (Button)
Market price reference
According to the information of the supplier (Xiamen Jielian Instrument & Equipment Technology Co., Ltd.): 1452 RMB (tax included)
The detailed technical information of this part can be found in the following documents:
MGUTI-50454-MASTER - HERMetic UTImeter Gtex Operation and Service Manual
HERMetic RTex Spare Parts Manual
Summary
TS 35069 is a dedicated LCD display module specially designed for Honeywell marine measurement equipment. It has the ability to display alphanumeric characters in 1 row and 8 characters. It is one of the important spare parts for UTImeter series equipment. If you need detailed technical specifications (such as operating voltage, interface definition, dimensions, etc.), it is recommended to directly contact Honeywell official or authorized dealers to obtain the complete data manual.
