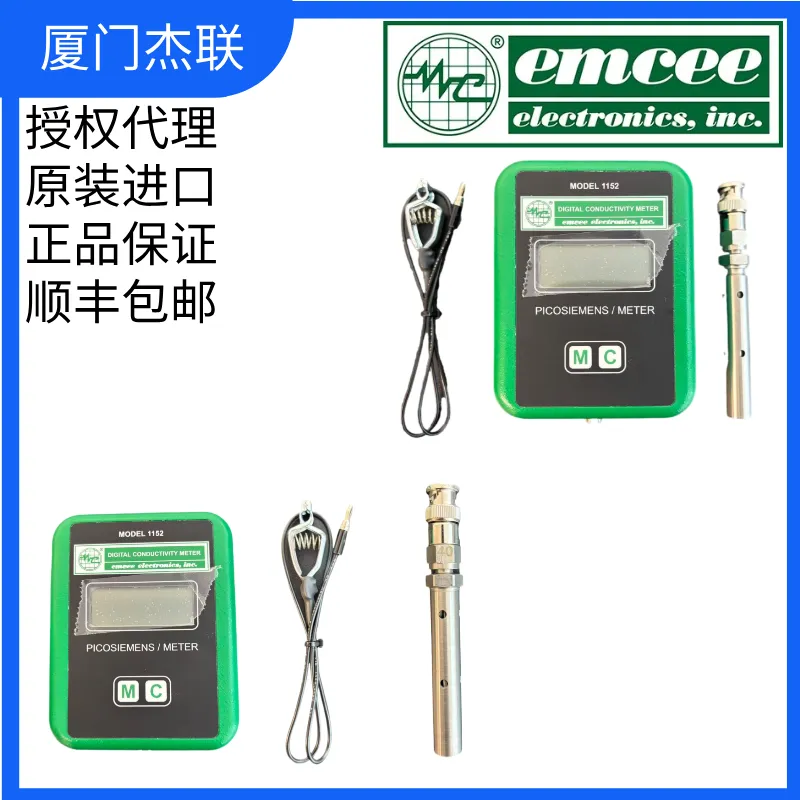

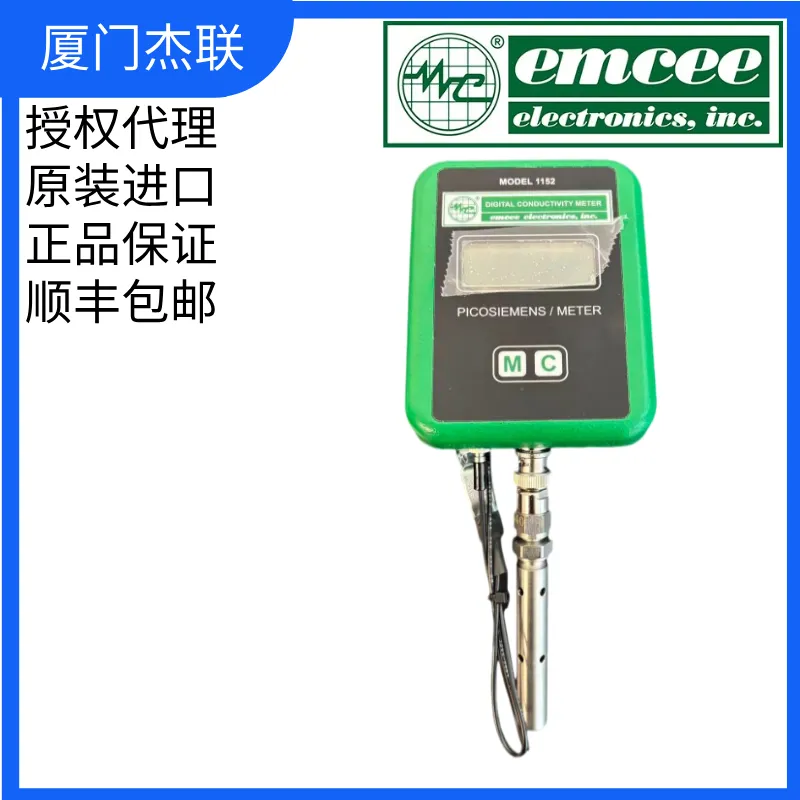

Conductivity meter, portable, handheld, digital display, sensor electrode probe 1152, American EMCEE
The American EMCEE 1152 conductivity meter, distributed by Xiamen Jielian Instrument and Equipment Technology Co., Ltd., is a portable digital conductivity meter specifically designed for measuring liquid conductivity. It is widely used in various fields such as petrochemical industry, aviation, and laboratories.
Below is a detailed introduction to the instrument:
Product Features

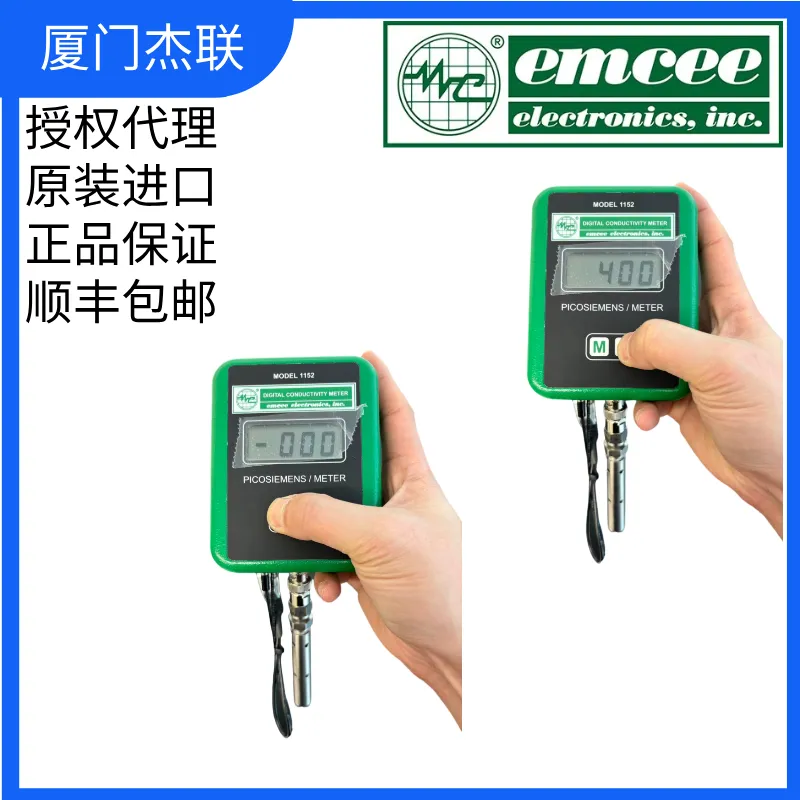

Digital display and convenient operation: Equipped with a large digital LCD screen, it offers easy operation, requiring only two buttons to complete measurement and calibration tasks.
Automatic calibration function: Equipped with an internal automatic calibration function, it allows for on-site adjustments to ensure the accuracy of measurement results.

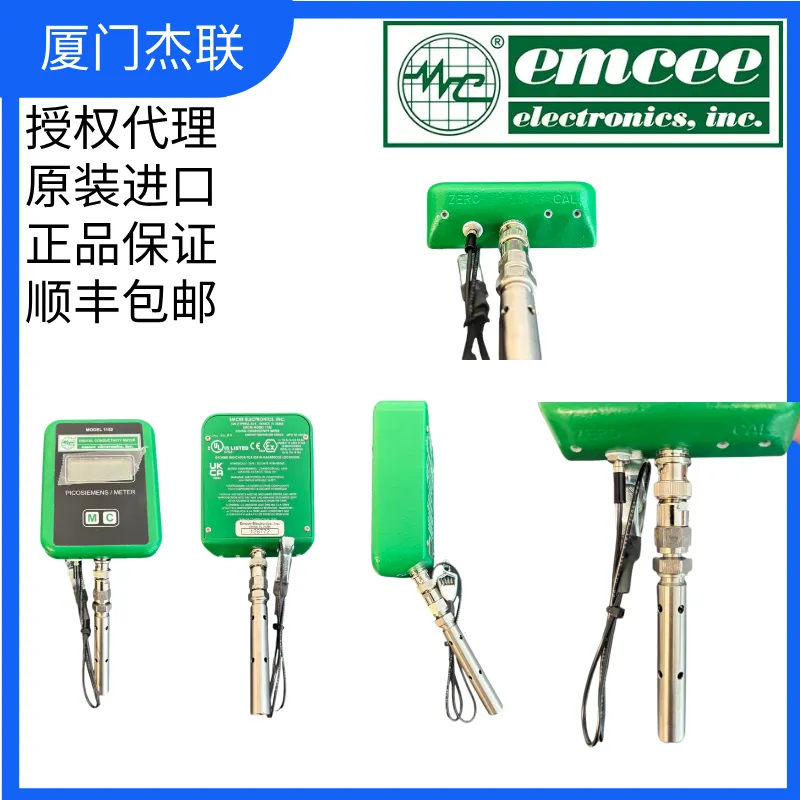

Robust and Durable Design: The electronic components are housed within a sturdy cast aluminum enclosure, which is coated with a solvent-resistant paint. Equipped with a detachable stainless steel probe, it is suitable for use in harsh industrial environments.
Intrinsically safe design: It has passed safety certifications from institutions such as Underwriters Laboratories (UL), Canadian Standards Association (CSA), and LCIE, making it suitable for use in hazardous environments.

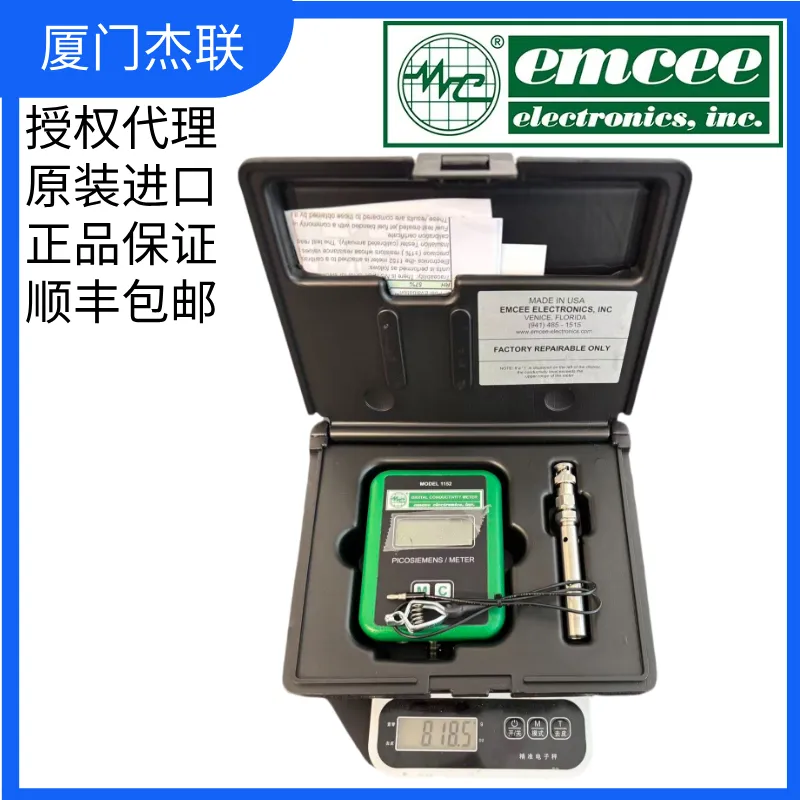

Portability and Long Battery Life: The main unit weighs only 1.2 kilograms, and with a detachable 3-meter cable and stainless steel probe, it can be easily packed into a portable case. It supports power supply from 3 alkaline batteries, with a battery life of up to 200 hours.
Technical Specifications
Measurement range: 0 to 1999 pS/m.
Resolution: 1 pS/m.
Accuracy: 2% of the reading ± 1 pS/m.
Display: 3½-digit LCD display.
Power supply: 3 x 6V alkaline batteries.
application field
Petrochemical industry: Measure the conductivity of hydrocarbon fuels (such as jet fuel, diesel, etc.) to assess their electrostatic accumulation and explosion risk.
Aviation: Ensure that the conductivity of aviation fuel meets safety standards to prevent fires and explosions caused by static electricity.
Laboratory: Used for high-precision conductivity measurement, supporting scientific research and quality control.
Industrial process control: Monitor the conductivity of fluids during the production process to ensure product quality and production safety.
working principle
The instrument consists of electronic components and a detachable stainless steel probe. The probe resembles a capacitor with concentric electrodes. When immersed in a fluid, it measures conductivity through the weak direct current between the electrodes and displays the result on a liquid crystal display.
The American EMCEE 1152 conductivity meter, with its high precision, portability, and reliability, has become a standard equipment in industries such as chemical, energy, and aviation, from the laboratory to the production line.
152-00-0010 MODEL 1152 DIGITAL CONDUCTIVITY METER X1
152-00-0011 MODEL 1152 DIGITAL CONDUCTIVITY METER X10
152-00-0012 MODEL 1152 DIGITAL CONDUCTIVITY METER X100
152-00-0013 MODEL 1152 DIGITAL CONDUCTIVITY METER X1,000
152-00-0014 MODEL 1152 DIGITAL CONDUCTIVITY METER X10,000
001-90-9347 GROUND CABLE ( SAME AS MODEL 1153)
152-90-9904 CU SUBSTITUTION BOX (X1) , 100/500 PS/M
152-90-9905 CU SUBSTITUTION BOX (X10) , 1000/5000 PS/M
152-90-9906 CU SUBSTITUTION BOX (X100) , 10,000/50,000 PS/M
152-90-9907 CU SUBSTITUTION BOX (X1,000) , 100,000/500,000 PS/M
152-90-9908 CU SUBSTITUTION BOX (X10,000) , 1,000,000/5,000,000 PS/M
152-90-9910 CU SUBSTITUTION BOX , 10/50 PS/M
152-09-0000 PROBE SUB-ASSEMBLY
152-09-0001 PROBE CLEANING KIT ( FOR MODEL 1152 & 1153 DCM)
001-90-7102 BLACK MOLDED CARRYING CASE
001-90-7903 PROBE CENTERING WASHER
900-99-6251 STAINLESS STEEL SCREWS (SOLD W/001-90-7903)
001-90-9110 20 FT. TRIAX CABLE WITH CONNECTORS
001-90-9111 15 FT. TRIAX CABLE WITH CONNECTORS
001-90-9112 25 FT. TRIAX CABLE WITH CONNECTORS
001-90-9113 10 FT. TRIAX CABLE WITH CONNECTORS
001-90-9114 5 FT. TRIAX CABLE WITH CONNECTORS
152-06-0003 50 FT. CABLE REEL W/WEIGHT
152-06-0004 100 FT. CABLE REEL W/WEIGHT
001-90-9313 CABLE REEL GROUND LEAD
001-90-9314 CABLE, 12" BLACK 1866-12-103 BK H.H
152-25-0000 3.5ML SM.STAINLESS STEEL SAMPLE FUEL CONTAINER
152-26-0000 250ML LG.STAINLESS STEEL CONTAINER
001-90-4711 ADAPTOR FOR ABOVE CONTAINERS
