TS 10190 Electronic Box Assy (Electronic control box assembly)
The TS 10190 Electronic Box Assy (Electronic control box assembly) sold by Xiamen Jielian Instrument & Equipment Technology Co., Ltd. is one of the core spare parts of the HERMetic UTImeter Gtex series of portable oil tank measuring instruments (UTI) produced by Honeywell / Enraf Tank System.
Product overview
TS 10190 is the electronic control box assembly of the HERMetic UTImeter Gtex oil dipstick, and the exact part number in the official spare parts catalog is TS 10190.
System where it is located
This electronic control box is the core electronic component of the UTImeter Gtex handheld oil dipstick, responsible for: Connecting and controlling the sensor (TS 10207 Ultra Sensor)
Communicating with the display unit (TS 10210 Display Unit Assy)
Managing the signal transmission of the tape measure (Tape)
Processing key components of liquid level, interface and temperature measurement data

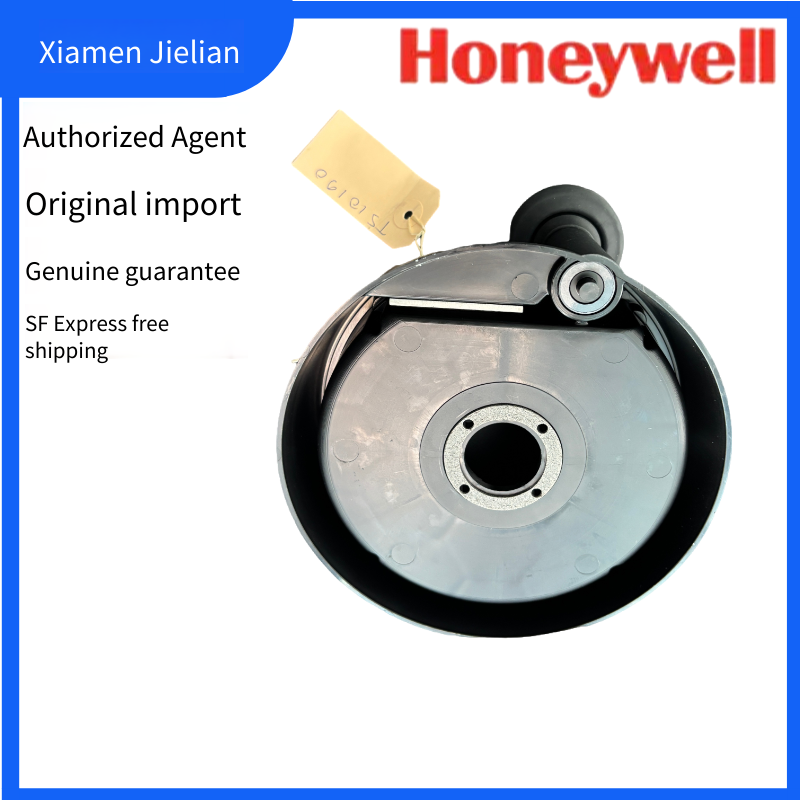

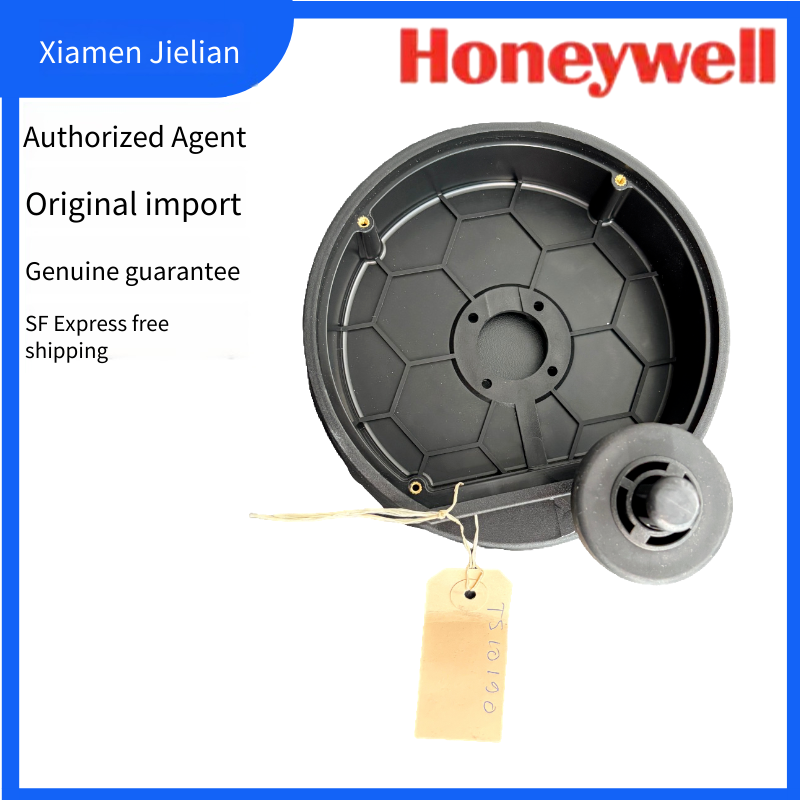

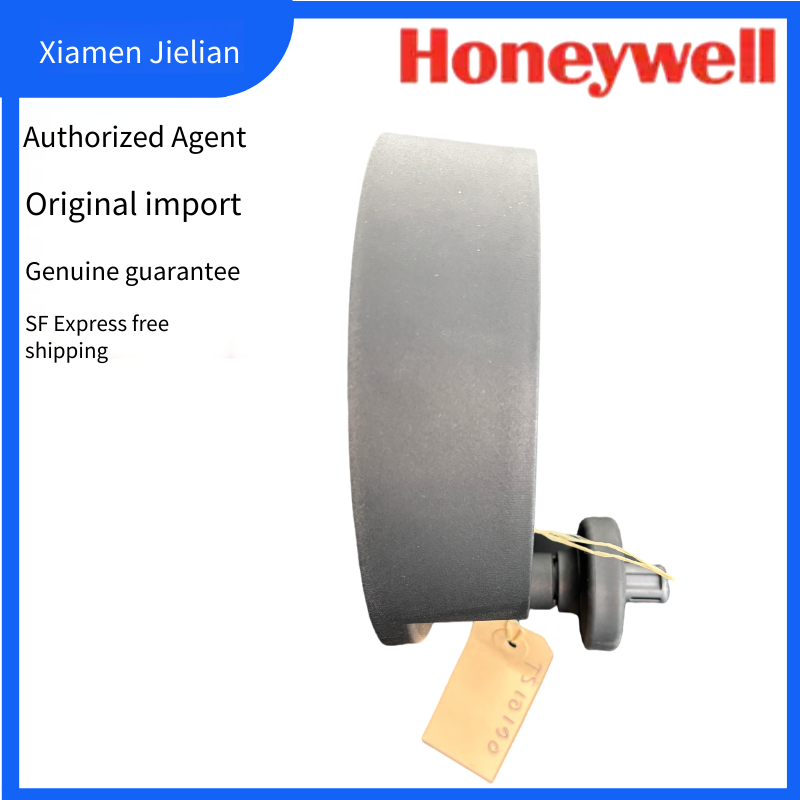

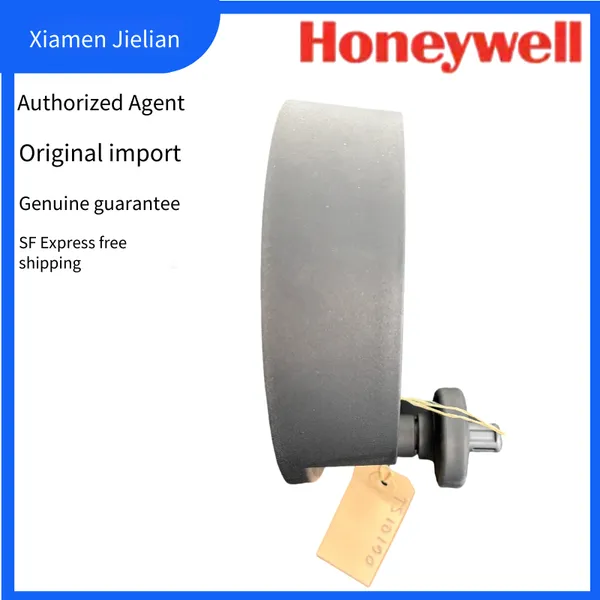

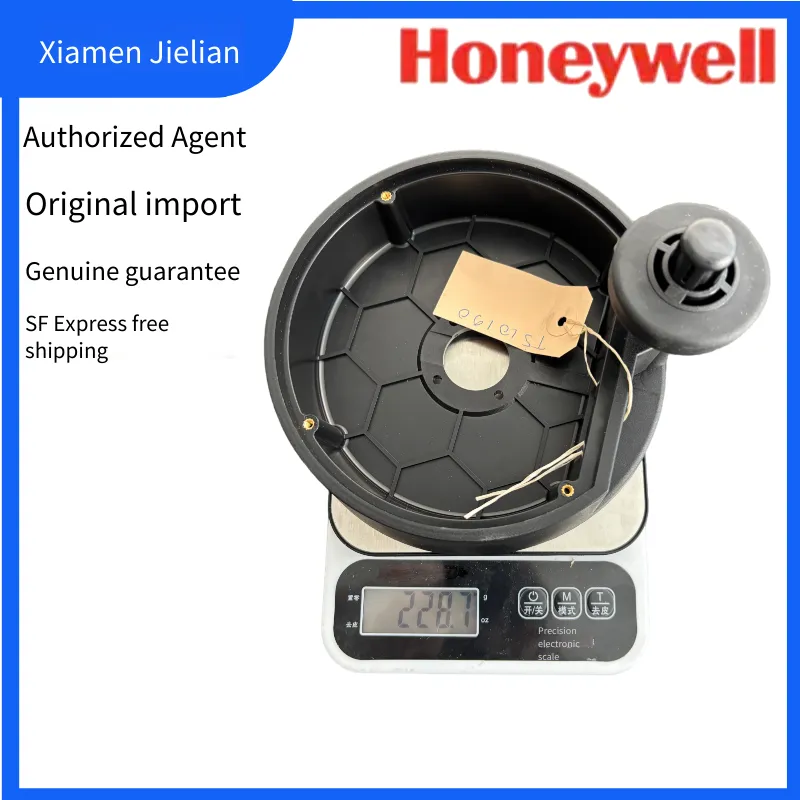

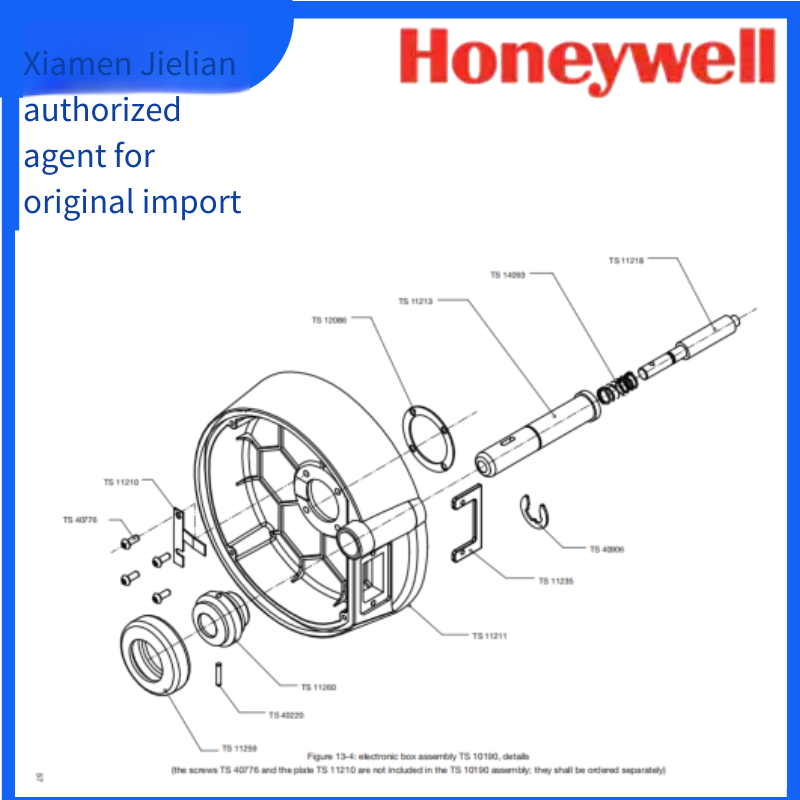

According to the disassembly diagram in the maintenance manual, the TS 10190 assembly mainly includes:
Part number |
Description |
Remarks |
TS 11210 |
Tape holder |
Not included in TS 10190, needs to be ordered separately |
TS 40765 |
Screw |
Not included in TS 10190, needs to be ordered separately |
TS 11211 |
Electronic box |
Main component |
TS 11213 |
Button handle |
Safety component, original accessories must be used |
TS 11214 |
Connecting lever |
Mechanical connection parts |
TS 11216 |
Spacer |
For installation |
TS 11217 |
Gasket for electronic unit |
For sealing |
TS 11218 |
Finger for handle |
Operating part |
TS 11223 |
Knob |
Operating part |
Environment and certification - Explosion-proof certification: ATEX II 2G Ex h IIB T6
Operating temperature: -20°C ～ +60°C
Air tightness: 0.3 bar (4.4 psi) Gas-tight working condition
Applicable environment: Supporting systems in dangerous areas such as oil tankers and chemical ships
TS 10190 must be used in combination with the following parts to complete the whole set of measurement functions: TS 10210 - Display Unit Assy
TS 10207 - Ultra Sensor
TS 10191/10229/10193 - Double-scale tape measure (15m/25m/35m) Maintenance and replacement
Notes for replacement: There is no need to recalibrate the temperature when replacing the electronic control box.
The button handle (TS 11213) is a safety part. Original genuine parts must be used. Incorrect replacement may affect the safety of the equipment.
All maintenance work must be carried out by personnel with experience in intrinsically safe equipment.
It is strictly prohibited to open the instrument or carry out maintenance and replacement in dangerous areas. Steps summary: Disconnect the tape measure from the sensor.
Remove the 2 screws of the battery box (TS 10189).
Remove the 4 screws of the display unit (TS 10210).
Disconnect the connection plug and remove the display unit.
Remove the 2 screws and the grounding wire of the tape measure bracket.
Install the new electronic control box in the reverse order. Market price reference
According to the quotation of Xiamen Jielian Instrument & Equipment Technology Co., Ltd., the price of TS 10190 Electronic Box Assy is about ￥3600.00 (excluding tax) / ￥3800.00 (including tax) RMB.
