TS 35069 LCD 1x8 ALPHANUM ASSY KIT (1×8 Character Alphanumeric LCD Display Module Assembly Kit) Honeywell/Honeywell
Product Overview

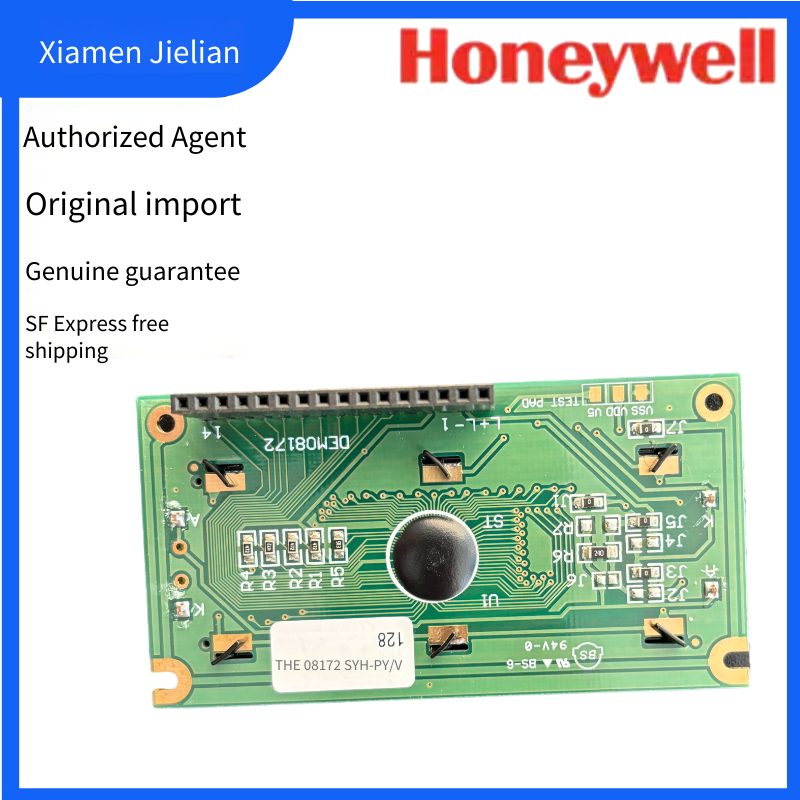

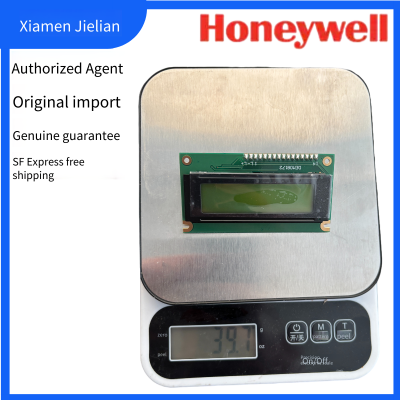

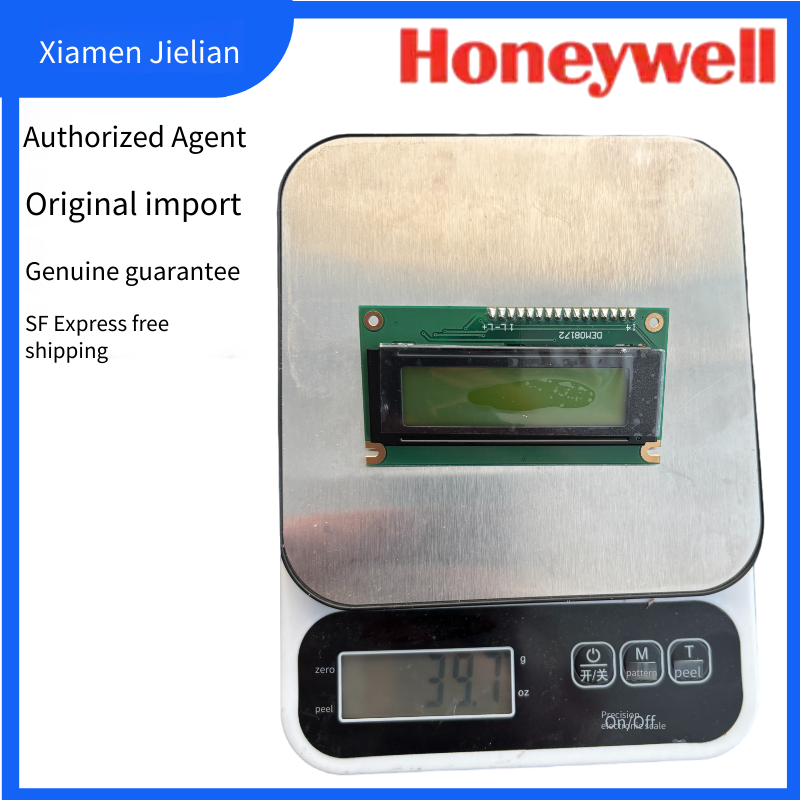

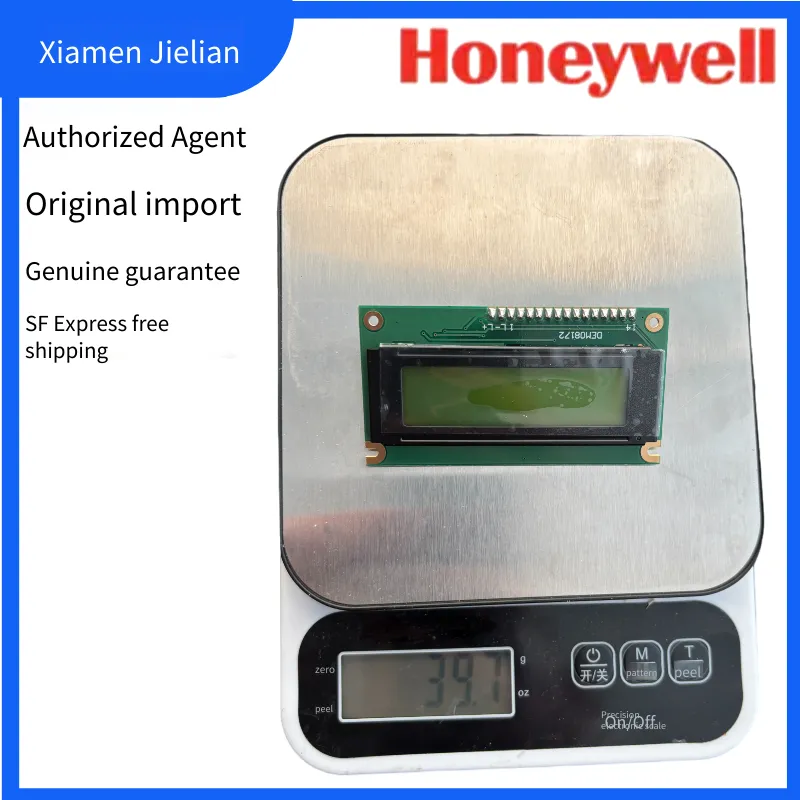

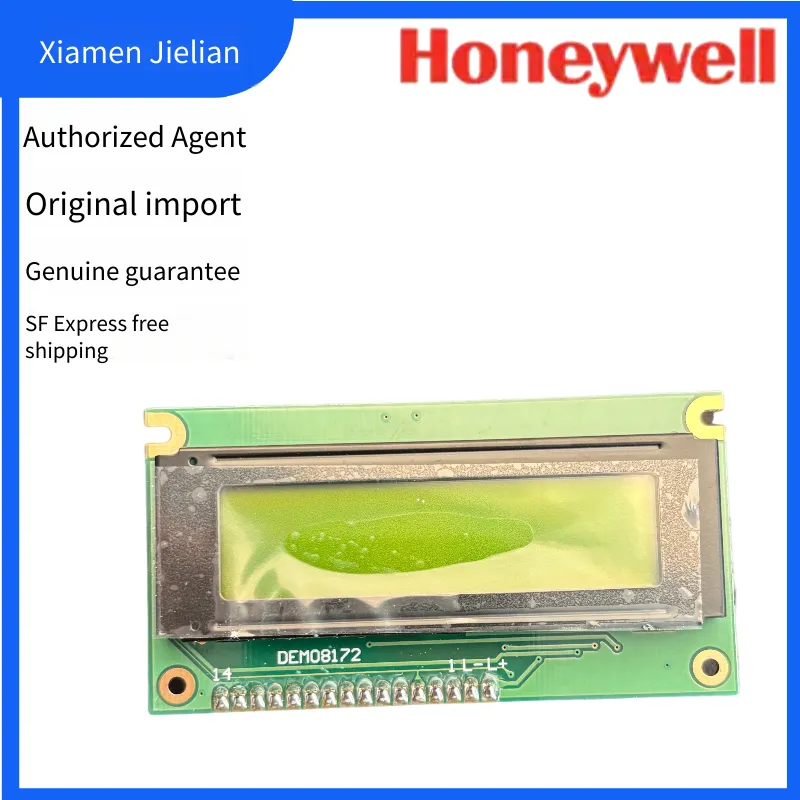

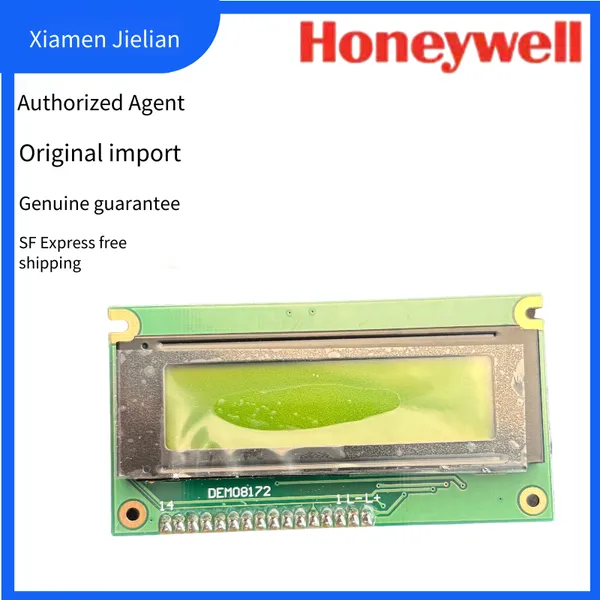

TS 35069 is a 1-row 8-character alphanumeric LCD display module assembly kit manufactured by Honeywell. It is mainly used in the UTImeter series of equipment, especially in marine industrial liquid level measurement equipment such as HERMetic UTImeter Gtex/Rtex.
Main Specifications
Parameter |
Specification |
Model |
TS 35069 |
Manufacturer |
Honeywell / Honeywell Enraf |
Display Type |
LCD Liquid Crystal Display |
Display Format |
1 row × 8 characters (1x8) |
Character Type |
Alphanumeric |
Product Category |
Display Module Assembly Kit |
Application Field |
Marine Industrial Liquid Level Measurement Equipment |
Application Scenarios
This LCD display module is mainly used as the display component of the following equipment:
HERMetic UTImeter Gtex - Hermetic Oil Tank Measuring Instrument
HERMetic UTImeter Rtex - Portable Liquid Level Measuring Equipment
Other positions in the accessory list of Honeywell/Enraf marine measuring instruments

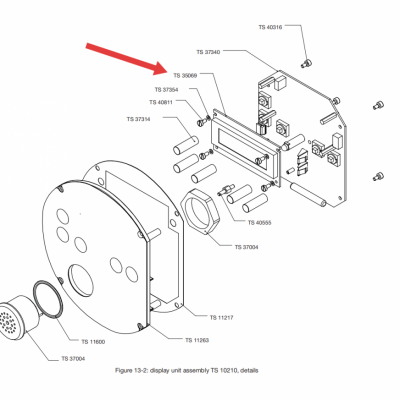

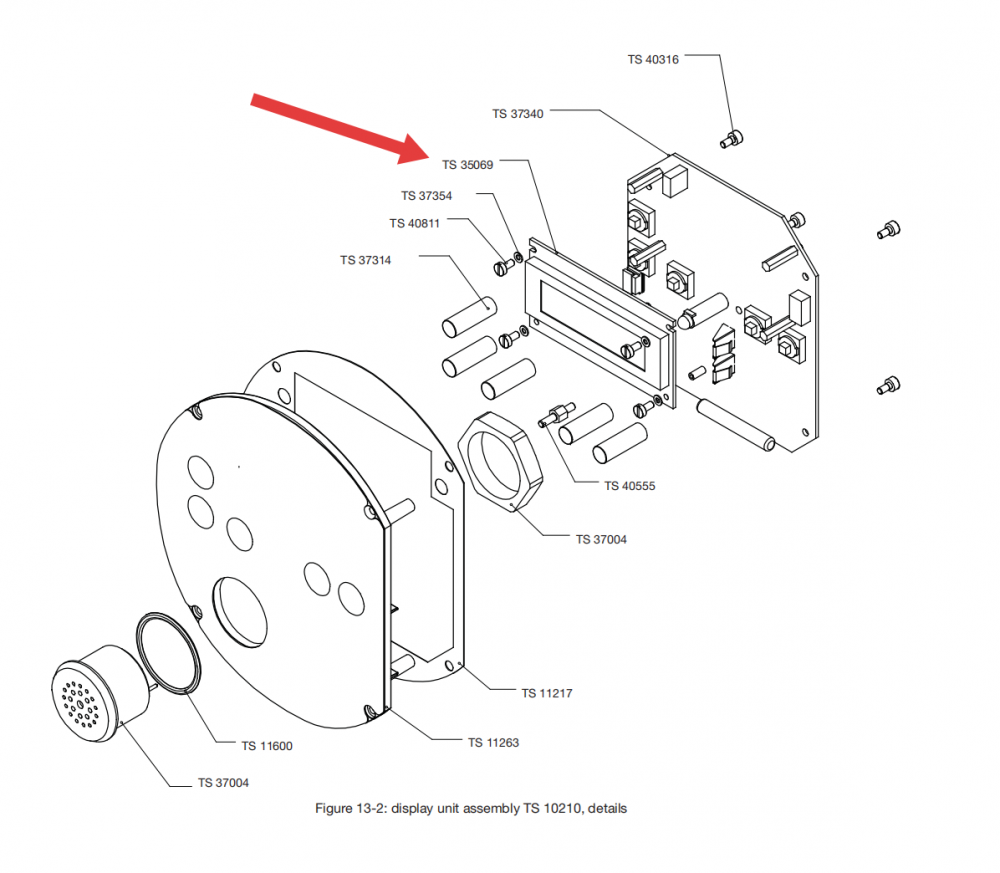

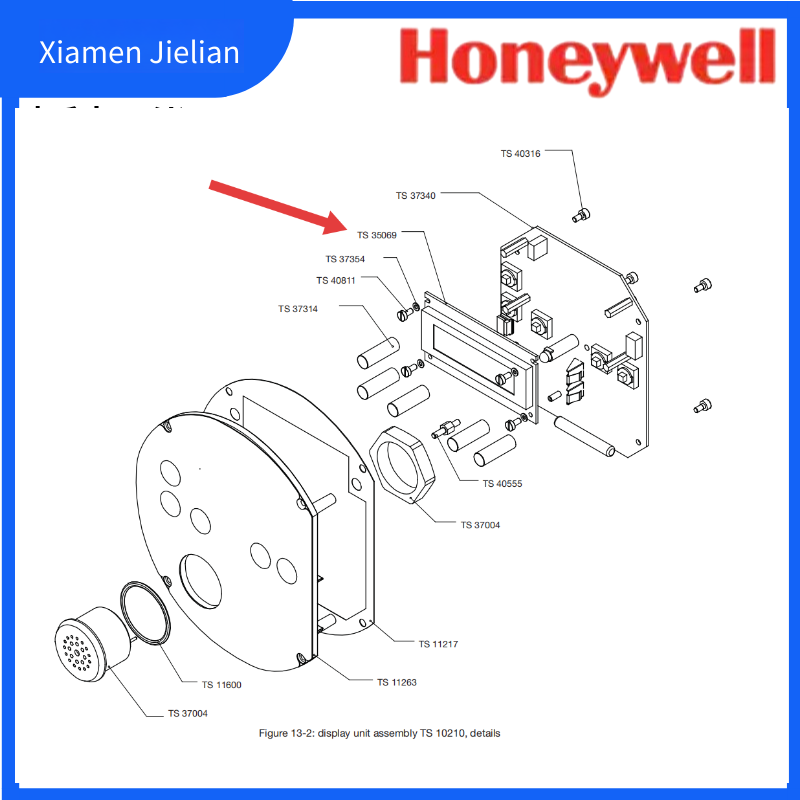

In the spare parts list of UTImeter equipment, TS 35069 is usually used in conjunction with the following components:
TS 37340 - PCB Display UTImeter Tested Assy (Display Circuit Board)
TS 11263 - Front face assembly（Front panel assembly）
TS 37004 - Buzzer（Buzzer）
TS 37314 - Push Button Distancer（Push button）
Market price reference
According to the information of the supplier (Xiamen Jielian Instrument & Equipment Technology Co., Ltd.): 1452 RMB (tax included)
Detailed technical information about this part can be found in the following documents:
MGUTI-50454-MASTER - HERMetic UTImeter Gtex Operation and Service Manual
HERMetic RTex Spare Parts Manual
Summary
TS 35069 is a dedicated LCD display module specifically designed for Honeywell marine measurement equipment. It has the ability to display alphanumeric characters in 1 line of 8 characters and is one of the important spare parts for the UTImeter series of equipment. For detailed technical specifications (such as operating voltage, interface definition, dimensions, etc.), it is recommended to directly contact Honeywell official or authorized dealers to obtain the complete data manual.
