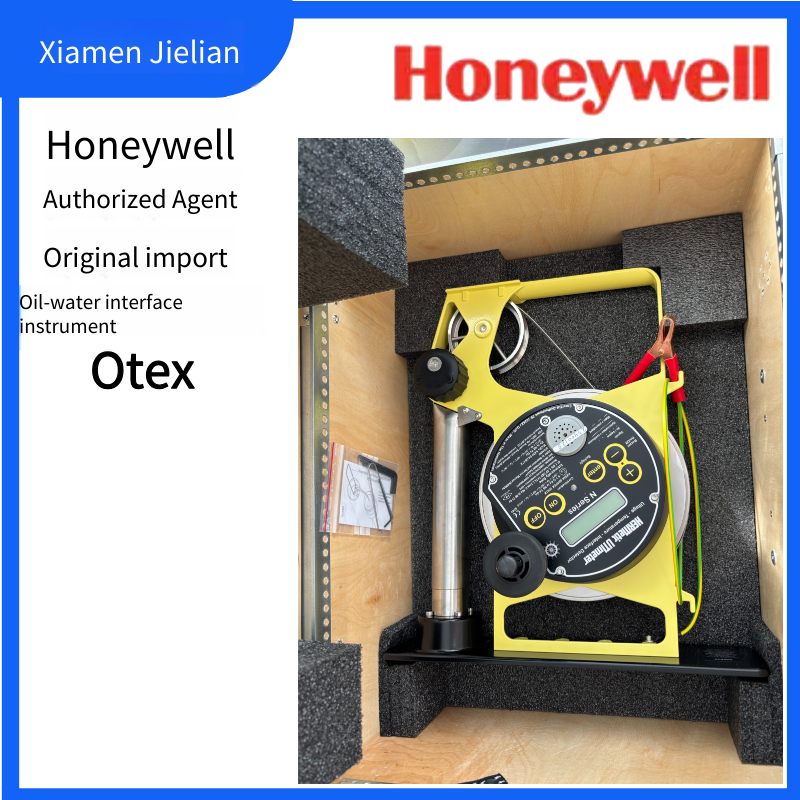

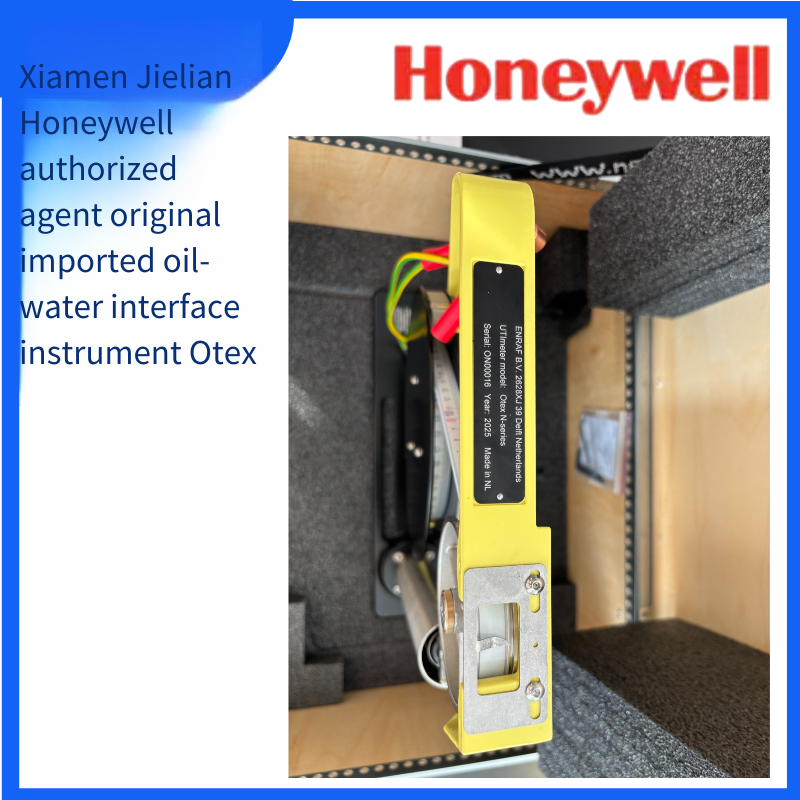

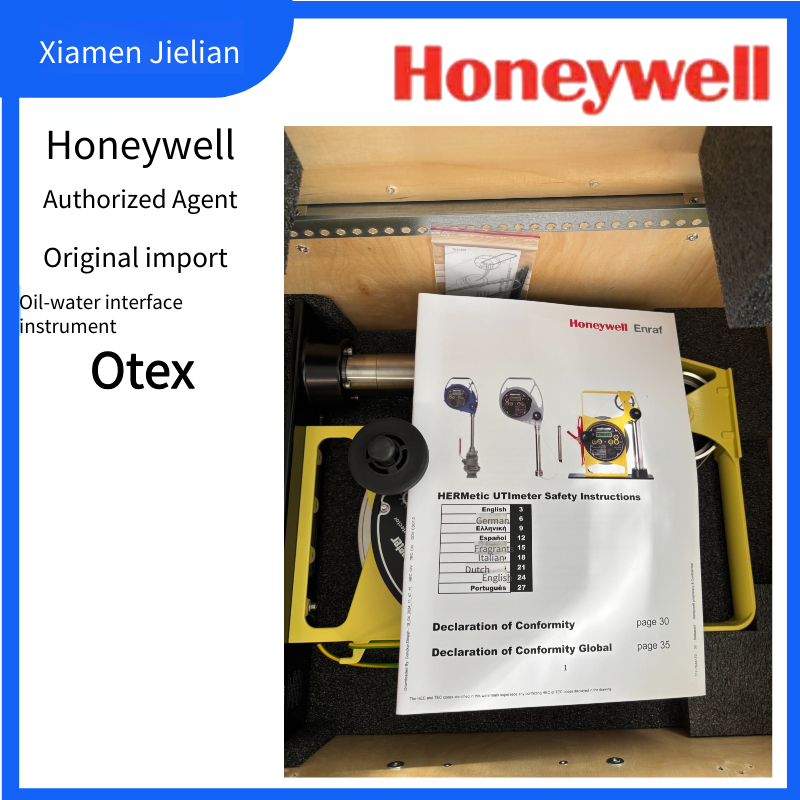

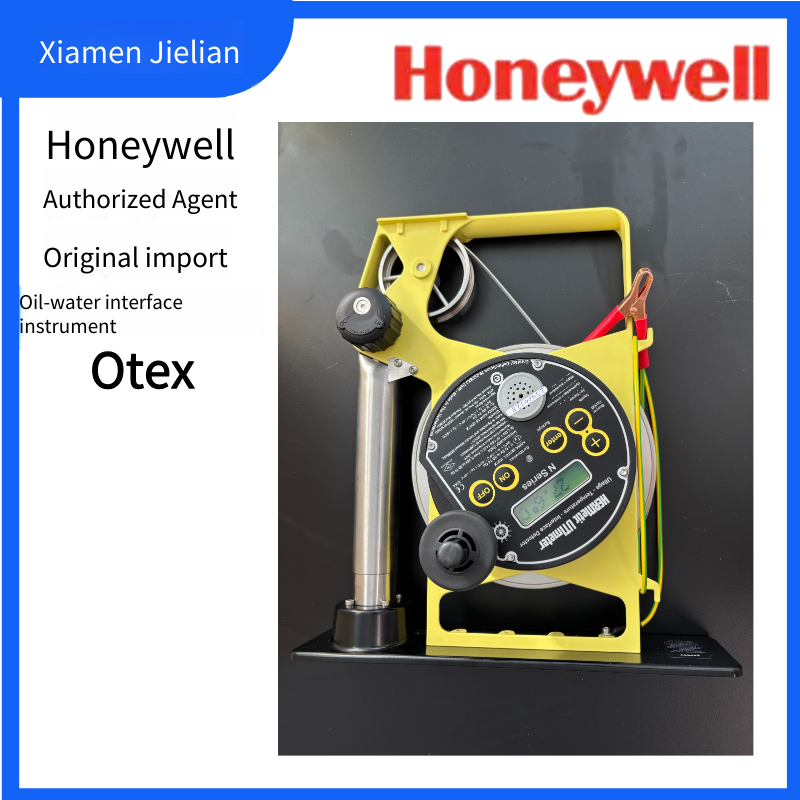

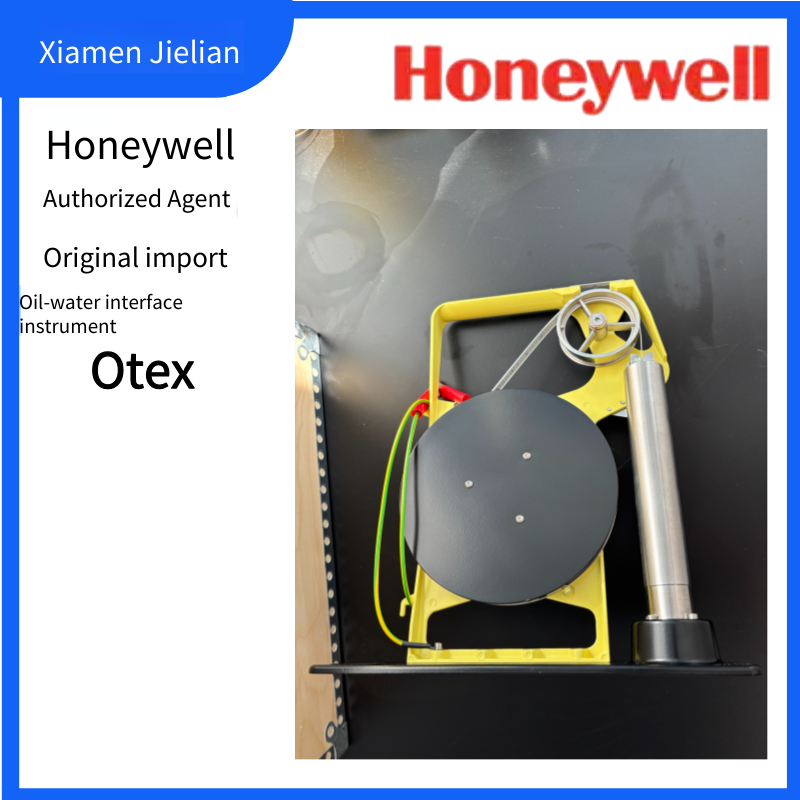

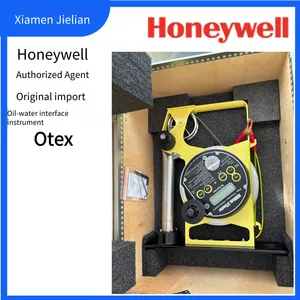

Honeywell Otex Oil-Water Interface Meter
I. Core Functional Features
The Honeywell Otex Oil-Water Interface Meter (model prefix HERMetic UTImeter Otex), authorized and distributed by Xiamen Jielian Instrument & Equipment Technology Co., Ltd., is a portable open metering device specifically designed for liquid level measurement in oil and chemical storage tanks. Its core functions include:
· Integrated multi-parameter measurement: One operation can complete ullage measurement (distance from the top of the storage tank to the liquid surface), temperature measurement (real-time liquid temperature), oil-water interface detection (position of the oil-water stratification). The Visc type also supports actual height measurement (distance from the liquid surface to the tank bottom), meeting the needs of trade handover and inventory control.
· Sensor protection and convenience: It is equipped with a special sensor protection device to prevent the probe from being damaged when it contacts the tank bottom. The battery (9V alkaline battery) can be easily replaced, with a battery life of about 400 hours. The tape cleaning device, display window wiper, etc. are standard accessories.
· Calibration-free design: The sensor is pre-calibrated before leaving the factory. The parameters of the temperature probe (RTD element) are stored in the sensor chip. There is no need to recalibrate when replacing the sensor or the tape, reducing maintenance costs.
II. Model Classification and Differences
The Otex series is mainly divided into basic type and Visc type, and further subdivided by tape length (15M/25M/35M). The specific models are as follows:
Series |
Model Example |
Core Features |
Applicable Scenarios |
Otex Basic Model
SS1-Q2 15M/25M/35M
1-inch sensor probe with FKM gasket, suitable for conventional hydrocarbon media (such as crude oil, diesel)
Low-viscosity oil storage tanks, open metering ports
Otex Visc Model
SS2-Q2 15M/25M/35M
2-inch weighted probe, supporting high-viscosity media (such as asphalt, heavy oil) and corrosive liquids, and the reference point can be manually detected
High-viscosity chemical products, viscous crude oil storage tanks
III. Key Technical Parameters
Parameter Category |
Specific Indicators |
Measurement Accuracy |
Liquid level: ±2mm (±0.08 inches); Temperature: ±0.1℃ (0℃~70℃), ±0.2°F (32°F~158°F) |
Measurement Range |
Tape length: 15M/25M/35M; Temperature sensor: -40℃~90℃ (display range -40℃~90.0℃) |
Environmental Adaptability |
Operating temperature: -20℃~50℃; Protection level is suitable for open tank farms, non-explosion-proof design (a closed device is required for use in hazardous environments) |
Physical Characteristics |
Weight: 4.4kg (including 15M tape); Tape scale: metric/imperial (resolution 1mm/1/16 inches) |
Power Supply and Battery Life |
DC 9V alkaline battery, low standby power consumption, battery life of about 400 hours (continuous use) |
IV. Application Scenarios
1. Onshore Storage Tank Metering: Suitable for land-based storage tanks (such as crude oil tanks and refined oil tanks) in petroleum and chemical enterprises, used for inventory counting, trade handover, and free water detection.
2. Open Measurement Scenarios: It needs to be operated at the open metering port and is suitable for non-explosion-proof or low-risk environments (such as refined oil depots and non-hazardous chemical storage tanks).
3. Monitoring of High-Viscosity Media: The Visc type can be used for liquid level measurement of viscous liquids such as asphalt and heavy oil. The weighted probe ensures the accuracy of contacting the liquid surface.
V. Compliance and Standards
It complies with multiple standards such as those of the International Maritime Organization (SOLAS, MARPOL Conventions), API MPMS, ISO 4512/3170, and the EU EMC Directive, ensuring the authority and legitimacy of metering data.
The Honeywell Otex series, with open portable metering as the core, has become an efficient tool for daily operations of onshore storage tanks through modular design and calibration-free features, especially suitable for rapid multi-parameter detection in non-explosion-proof environments.
