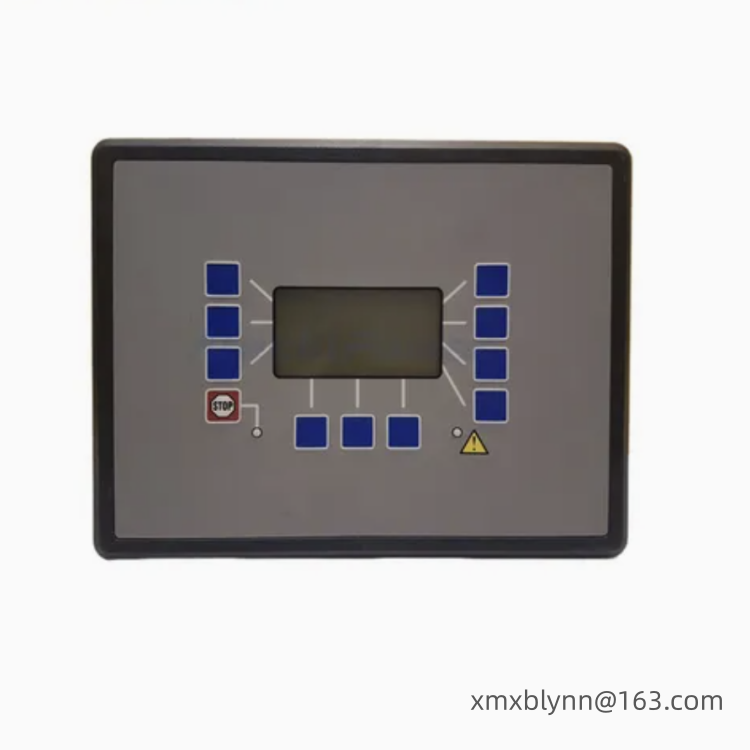

WOODWARD 8440-2080 Generator set controller
The WOODWARD 8440-2080 model belongs to Woodward's easYgen-2000 series generator controller (specifically, the easYgen-2300-5 model is often a more specific sub-model).This is a multi-functional generator control and protection device.
Main Functions
Generator Control: Supports single-unit operation or parallel operation of multiple generators (up to 16 units in parallel).
Load Distribution and Synchronization: Features automatic synchronization and active/reactive load distribution to ensure smooth operation of multiple generators when connected to the grid or in parallel.
Comprehensive Protection:
Generator Protection: Over/under voltage, over/under frequency, overload, reverse power, etc.
Engine Protection: Monitoring for overspeed, low oil pressure, high water temperature, etc.
Automation Management: Built-in LogicsManager allows users to customize control logic using logic gates (AND/OR/XOR), reducing the need for an external PLC.
Communication Capabilities: Equipped with a CANbus interface (for inter-generator or ECU communication), RS-485 serial interface, and supports Modbus RTU protocol for easy integration into building automation or monitoring systems.
RMS Measurement: Employs True RMS (Real Effective Value) measurement of voltage and current to ensure accuracy even in complex power environments (with harmonics).
Email: xmxblynn@163.com
Phone: +86 18059884797
Application Scenarios: Backup Power Systems: Automatic Backup Power Systems (AMF) in hospitals, data centers, or factories automatically start generators and switch loads when the mains power fails. Island Operation: Managing multiple generator sets to supply power and balance loads in remote or off-grid areas. Peak Shaving: Controlling generators to operate alongside the grid to reduce the cost of purchasing electricity from the grid when electricity prices are high during peak periods. Mobile Power Stations/Rental Units: Due to their robust design and flexible configuration, they are often used in control cabinets for rented generator sets.
Key Parameter Overview: Parameter Item Specification Details Power Supply Voltage 12/24 VDC (range 8-40 VDC) Current Transformer (CT) 5A Input Operating Temperature -20°C to +70°C Protection Rating Panel Mount Typically IP65 (with sealing ring) Logic Manager Supports Custom Logic Programming
Email: xmxblynn@163.com
Phone: +86 18059884797
