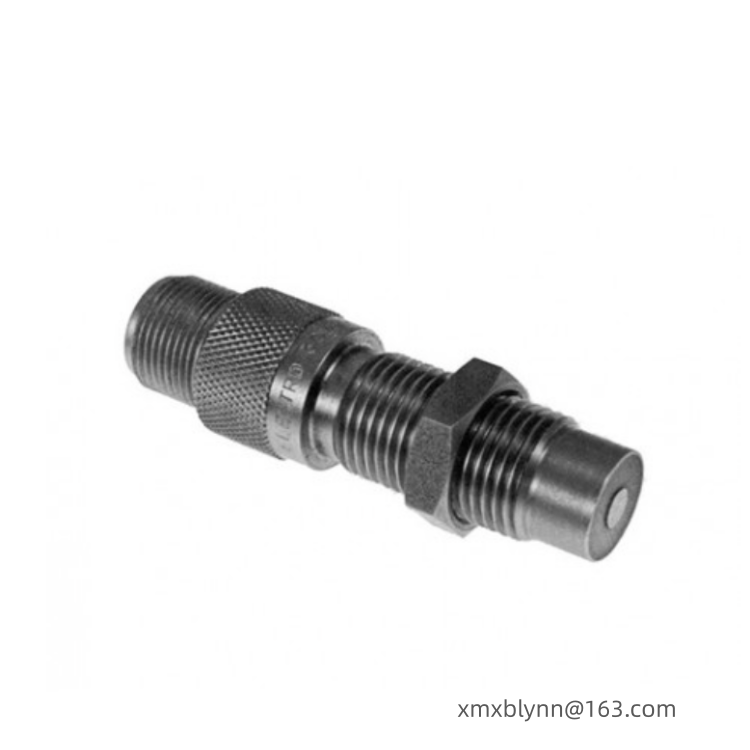

WOODWARD 1680-631 Magnetic Pickup
Core Functions
Speed Sensing: This device is essentially an electromagnetic sensor. It is installed near the engine flywheel or gears, using changes in magnetic flux to sense the passage of gear teeth.
Signal Conversion: It converts the mechanical motion of a rotating object (gear rotation) into an alternating current (AC) voltage signal. The signal frequency is proportional to the object's rotational speed.
Passive Operation: This type of sensor is typically passive, meaning it does not require an external power source. Instead, it generates an induced current by cutting magnetic lines of force using internal coils and magnets.
2. Main Applications
Engine Speed Control: Transmits the sensed speed signal to an electronic governor (such as the Woodward 2301A, 723 series, etc.) to control fuel supply, thereby maintaining a constant engine speed.
Overspeed Protection: As part of a monitoring system, it triggers an emergency shutdown when the detected speed exceeds a safe setting, preventing equipment damage.
Data Display: Provides raw data for the tachometer on the control panel or a digital monitoring system.
Email: xmxblynn@163.com
Phone: +86 18059884797
Technical Specifications (Reference)
According to Woodward's standard parameters, this model typically has the following characteristics:
Mounting Thread: 5/8-18 UNF (common size).
Length: Approx. 4.5 inches (approx. 114mm).
Resistance: Internal coil resistance is typically around 250 ohms.
Durability: Designed for harsh industrial environments, featuring shock resistance, oil resistance, and high-temperature resistance.
4. Common Applications
Industrial diesel/gas engines (e.g., generator sets).
Steam turbines or gas turbines.
Power systems for heavy machinery.
