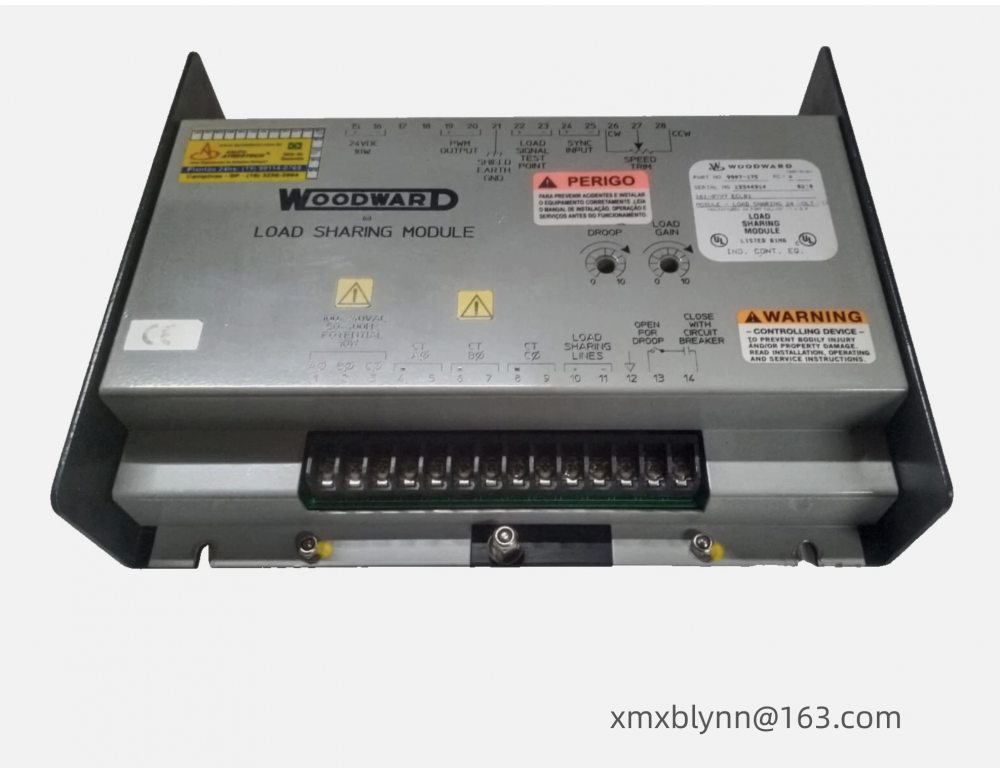

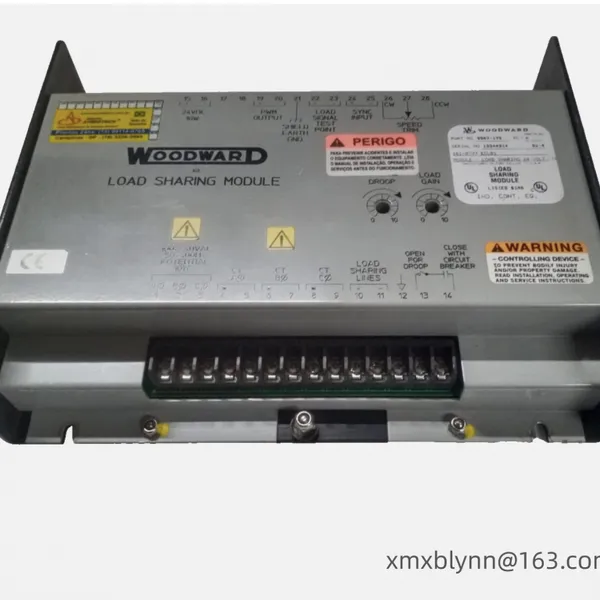

WOODWARD 9907-175 Load Sharing Module
The core function of the 9907-175 is to integrate non-Woodward-controlled generators (especially Caterpillar generators with PWM inputs) into Woodward's parallel control system.
PWM Signal Conversion: This module receives voltage and current sensing signals from the generators and converts them into PWM (Pulse Width Modulation) control signals required by the Caterpillar digital speed controller.
Synchronous Load Sharing: Supports isochronous load sharing between multiple generator sets, ensuring that each generator shares the load proportionally to its capacity.
Droop Control: Provides a droop control mode for parallel operation with the public grid or other different types of control systems.
Compatibility Bridge: Allows seamless load sharing between Caterpillar generator sets and those using controllers such as the Woodward 2301A.
2. Core Technical Parameters
Output Type: PWM (Optimized for Caterpillar controllers).
Power Input: DC 24V (typically 18-32 Vdc).
Inductive Input: * PT (Potential Transformer): Three-phase 100–240 Vac.
CT (Current Transformer): 3–7 Arms (at full load).
Adjustment Range: Equipped with load gain and stability adjustment potentiometers.
Email: xmxblynn@163.com
Phone: +86 18059884797
This module is widely used in industrial and commercial applications requiring high power stability:
Parallel Backup Power: When multiple Caterpillar generator sets are operating in parallel in data centers, hospitals, or factories, the 9907-175 ensures current balance among the units.
Mixed Unit Grid Connection: If your site has both Caterpillar generators and other brands using Woodward controllers, this module is crucial for enabling communication and load balancing between them.
Marine Power Systems: Used in marine power plants to manage power distribution among multiple propulsion or auxiliary generators.
Isolation Operation: Manages microgrids composed of multiple generator sets in remote mining areas or oil and gas fields without mains power.
Installation and Precautions
Electrostatic Discharge Protection: This type of electronic module is sensitive to electrostatic discharge; proper grounding is required during installation.
Shielded Cable Use: When connecting the PWM output and current sensing signal, shielded twisted-pair cable must be used to prevent electromagnetic interference that could cause speed fluctuations.
Compatibility: Please confirm that your Caterpillar controller accepts PWM speed setting signals (commonly seen with ADEM controllers).
