Help CenterCustomized Development of Hydrogen Fuel Cell Automatic Screen Printing Machine
Related Products
-
Customized Development of Dual-head Vision Dispensing Machine for Hydrogen Fuel CellsNegotiableMOQ: 0 Set -
Customized Development of Automated Production Line/assembly Line for Hydrogen Fuel Cell StacksNegotiableMOQ: 0 Set
-
Customized Development of Hydrogen Fuel Cell Stack Test BenchNegotiableMOQ: 0 Set
-
Customized Development of Automatic Sealing Line for Hydrogen Fuel Cell Bipolar Plates - Dispensing / Bonding / Curing / Airtightness TestingNegotiableMOQ: 0 Set
-
Air Tightness Testing Machine for Flow Battery Diaphragms, Providing Customized Development of All-vanadium Flow Battery Equipment and Production Lines. Flow Display Accuracy: 0.01 SccmNegotiableMOQ: 0 Set
Production Line Overview

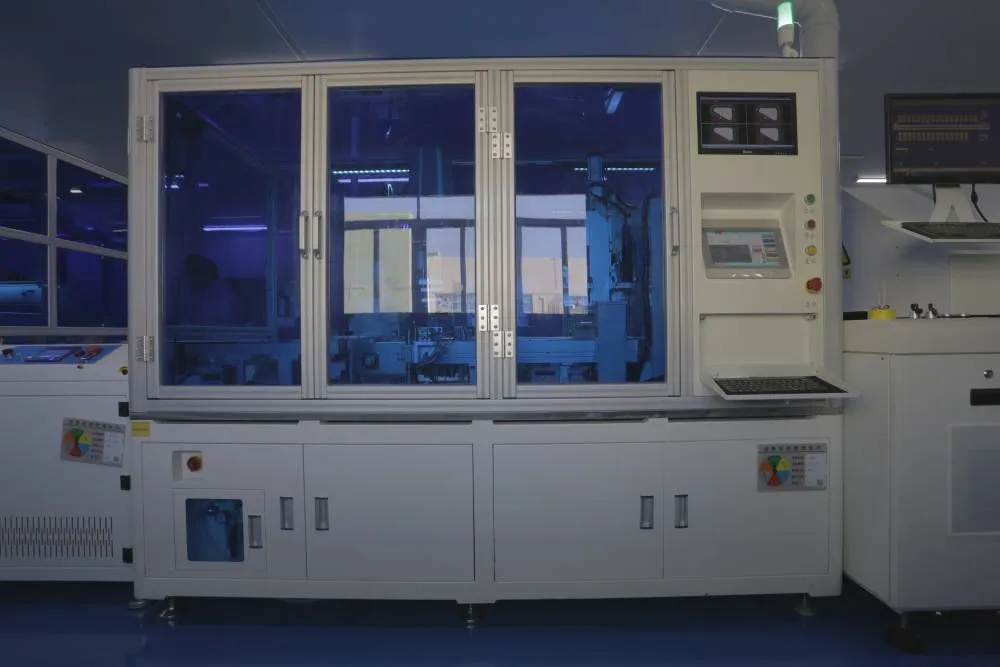

The automatic screen printing machine uses screen printing for the sealing glue path of single plates. After lamination and curing, the waterway sealing of bipolar plates is completed. This equipment can achieve functions such as automatic material positioning, automatic alignment and lamination, and automatic loading and unloading. It features vertical lifting of the printing plate, no backflow of glue, and the ability to print with a small amount of glue. Screen printing has advantages such as high precision and high production efficiency.
Advantages and Features:
• Printing speed: 15s/pcs
• Printing plate frame size: 760x360mm
• Scraper air pressure: 0.6MPa
• Adhesive film thickness deviation: 15μm± 0.5μm
• Flatness of the printing platform: ≤0.02mm
Company Introduction
Huizhou Lyubao Technology Co., Ltd. was established in 2017 with a registered capital of 42.68 million yuan. It is a holding enterprise of Jingshan Light Machine Holding Co., Ltd. (Jingshan Light Machine Group). It is a high-tech enterprise dedicated to the R & D and manufacturing of hydrogen energy intelligent equipment, providing customers with a full set of hydrogen energy R & D, testing equipment, and a highly competitive intelligent overall solution for hydrogen energy whole factories. Adhering to the management and technical advantages of Jingshan Light Machine Group, Huizhou Lyubao Technology Co., Ltd. has an excellent talent structure, with over 60% of its employees having a bachelor's degree or above; it has efficient organizational management, with an annual production of 300 sets of hydrogen fuel cell equipment; it is rich in technical experience and has obtained 59 patents related to hydrogen fuel cell equipment. It has built hydrogen fuel cell laboratories, testing equipment, and intelligent production lines for many hydrogen energy enterprises and research institutions.
