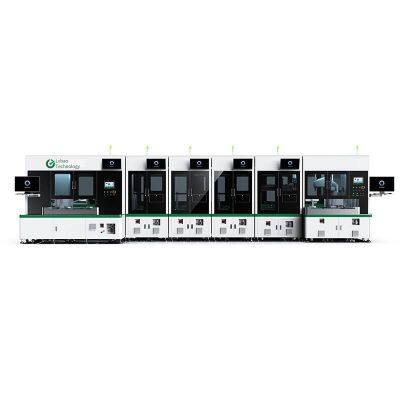

Production line overview:

The automatic inspection scope for the incoming bipolar plates includes: warpage, air tightness, color difference between the front and back sides, creases, scratches, white spots, dirt, black spots, film peeling, etc. After comprehensively inspecting the incoming bipolar plates, the first-pass yield of the finished electric stacks has been greatly improved. All incoming materials are scanned and identified, and various inspection data are recorded and analyzed to achieve digital and intelligent production.



Advantages and highlights:

Bipolar plate warpage detection

•   Adopt non-contact 3D line scanning measurement method

•   Inspection range: 0~5mm

•   Inspection accuracy: 0.02mm


Bipolar plate air tightness detection

•   Pressure accuracy: ±1%FS

•   Displacement accuracy: 0.02mm

•   Flow accuracy: 0.8%RD+0.2FS

•   Flow range: 0.01~10sccm

•   Flatness of the fixture: ≤±0.02mm

•   Parallelism of the fixture: ≤±0.04mm


Bipolar plate appearance defect detection

•   Minimum detectable defect size: 0.5mm

•   Types of detectable defects: ≥14 kinds

•   Pixel of the linear array camera: ≥16K

•   Pixel size: 3.5μm

•   The software has deep learning function





Company introduction

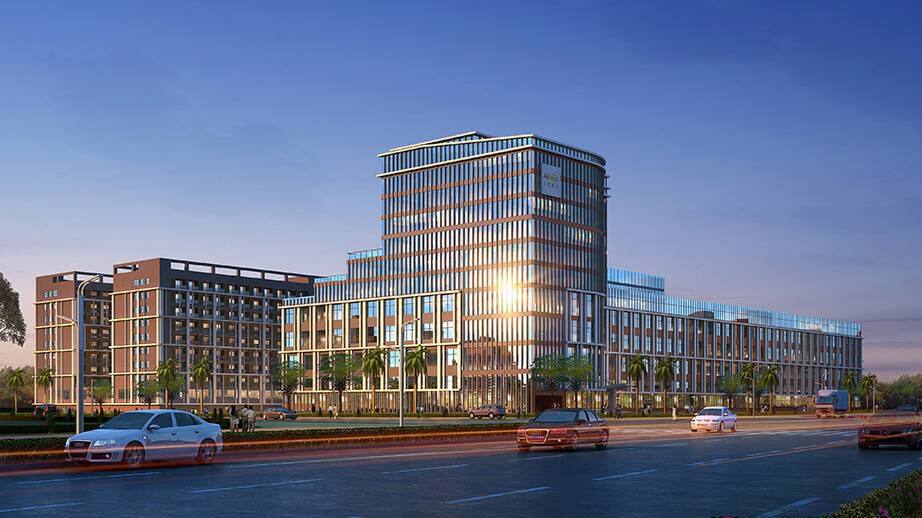

Huizhou Lyubao Technology Co., Ltd. was established in 2017 with a registered capital of 42.68 million yuan. It is a holding enterprise of Jingshan Light Machine Holding Co., Ltd. (Jingshan Light Machine Group). It is a high-tech enterprise focusing on the R & D and manufacturing of hydrogen energy intelligent equipment, providing customers with a full set of hydrogen energy R & D, test and inspection equipment and a highly competitive intelligent overall solution for the whole hydrogen energy factory. Inheriting the management and technical advantages of Jingshan Light Machine Group, Huizhou Lyubao Technology Co., Ltd. has an excellent talent structure, with more than 60% of its employees having a bachelor's degree or above; it has an efficient organizational management system, with an annual production capacity of 300 sets of hydrogen fuel cell equipment; it has rich technical experience and has obtained 59 patents related to hydrogen fuel cell equipment. It has built hydrogen fuel cell laboratories, inspection equipment and intelligent production lines for many hydrogen energy enterprises and scientific research institutions.

Product Tags: Bipolar plate warpage detection , Bipolar plate air tightness detection , Bipolar plate flow channel detection , Bipolar plate appearance defect detection , Bipolar plate front and back detection
