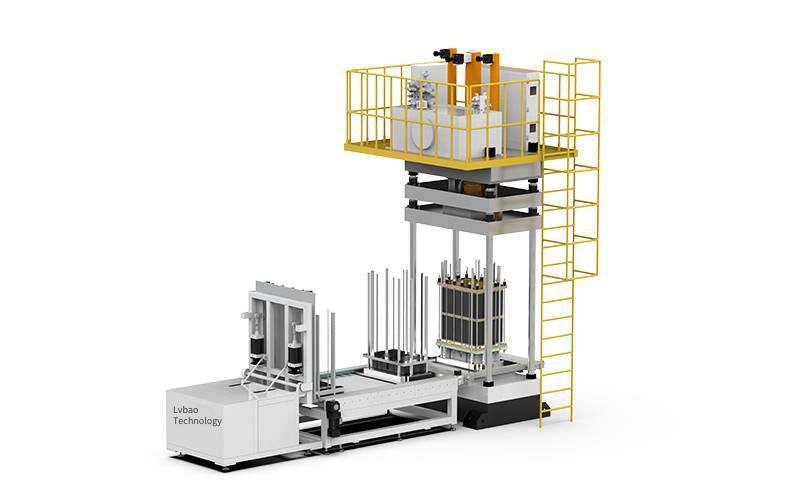

Flow Battery Stack Press-fitting Machine, Providing Customized Development of All-vanadium Flow Battery Equipment and Production Lines. Pressure Accuracy: ±0.5%f.s.NegotiableMOQ: 0 Set
-
Green Protection Technology - Membrane Electrode Automatic Detection Line, Which Can Automatically Detect Defects Such as the Thickness, Airtightness, Front and Backside Contamination, and Carbon Paper Damage of Membrane ElectrodesNegotiableMOQ: 0 Set
-
Green Protection Technology - Customized Development of Visual Dispensing Machine for Hydrogen Fuel Cell Dual Machine BoardsNegotiableMOQ: 0 Set
Production Line Overview:

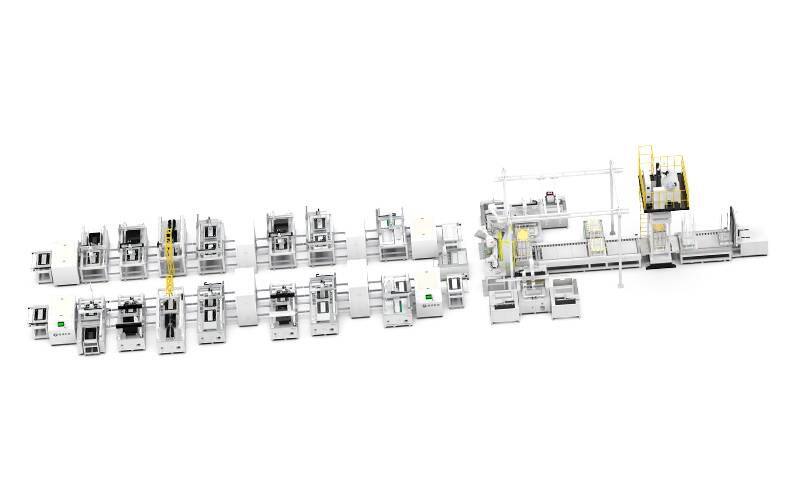

This production line is used for the automatic assembly and production of flow battery stacks. It consists of equipment such as flow frame feeding and dispensing, cover plate bonding, curing and inspection, sealing line dispensing and inspection, carbon felt assembly, stack stacking, stack pressing, tie rod tightening, and stack offline. The total length of the whole line is about 34 meters. The MES system is used to control the whole line, including online SOP kanban, data collection, data storage, data analysis, and full - process traceability, to achieve digital and intelligent production.
Advantages and Highlights:
• Stack size: 880*552*880mm Stack weight: about 1000KG
• Dispensing accuracy of flow frame cover plate: 0.01ml
• Detection accuracy of flow frame glue line contour: 0005mm
• Bonding accuracy of flow frame cover plate: 0.02mm
• Stacking accuracy: ±0.25mm
• Repeat positioning accuracy: ±0.05mm
• Annual stack production: 1500 units
• Daily production capacity: 6 units
