Home > Flow Battery Stack Press-fitting Machine, Providing Customized Development of All-vanadium Flow Battery Equipment and Production Lines. Pressure Accuracy: ±0.5%f.s.
Flow Battery Stack Press-fitting Machine, Providing Customized Development of All-vanadium Flow Battery Equipment and Production Lines. Pressure Accuracy: ±0.5%f.s.
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Huizhou, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Green Protection Technology - Membrane Electrode Automatic Detection Line, Which Can Automatically Detect Defects Such as the Thickness, Airtightness, Front and Backside Contamination, and Carbon Paper Damage of Membrane ElectrodesNegotiableMOQ: 0 Set -
Green Protection Technology - Customized Development of Visual Dispensing Machine for Hydrogen Fuel Cell Dual Machine BoardsNegotiableMOQ: 0 Set
-
Green Protection Technology - Customized Development of Pem Hydrogen Production Electrolyzer and Fuel Cell Power Generation Stack Two-in-one Test BenchNegotiableMOQ: 0 Set
-
Green Protection Technology - Customized Development of Tilted Press-fitting Machine for Hydrogen Fuel Cell StacksNegotiableMOQ: 0 Set
-
Green Protection Technology - Hydrogen Fuel Cell Stack Air Tightness Detection EquipmentNegotiableMOQ: 0 Set
Production Line Overview:

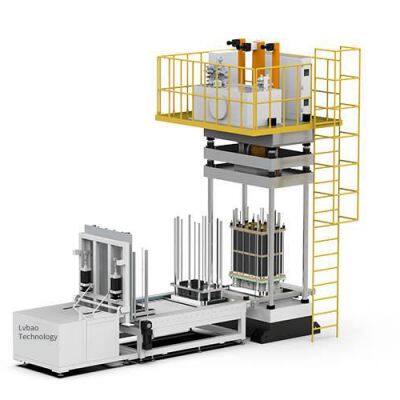

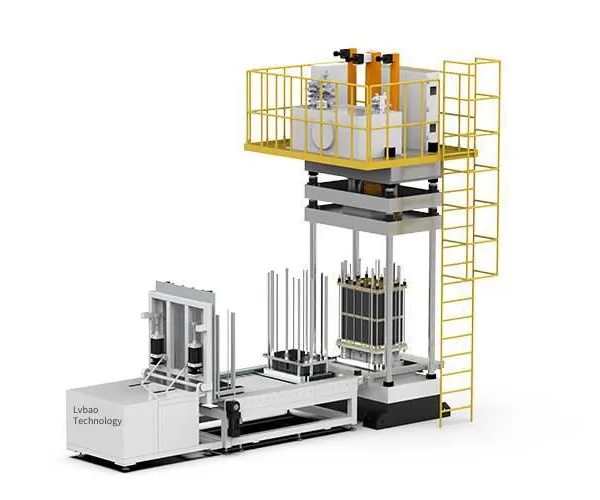

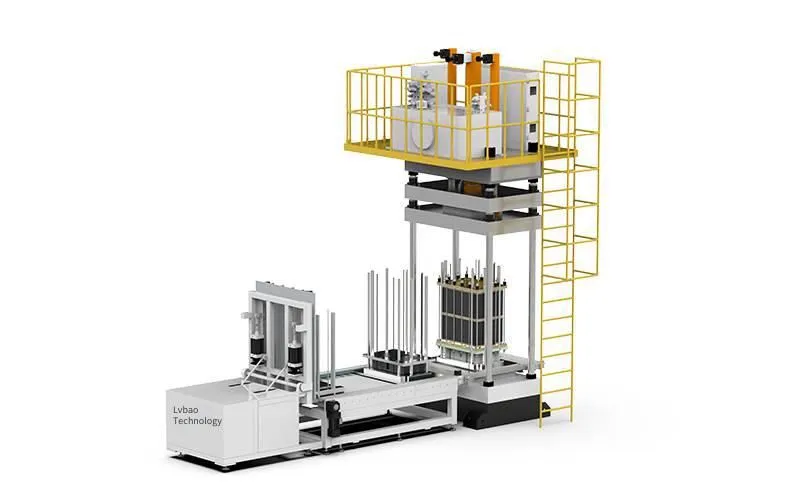

This equipment is used for the stacking and pressing of flow battery stacks. It consists of a servo four-column hydraulic press, stacking stations, hydraulic systems, stack pressing mechanisms, conveying connection lines, stack turning and offline mechanisms, etc. It is compatible with multiple product specifications and adaptable to product upgrades.
Advantages and Highlights:
• Stacking accuracy: ±0.25mm
• Press pressure: 120T (dual pressure heads)
• Press stroke: 1500mm
• Opening distance: 2000mm
• Pressure accuracy: ±0.5%F.S
• Press positioning accuracy: ±0.05mm
• Tightening torque: 20N.m
• Tightening accuracy: ±5%FS
