Home > Flow Battery Flow Frame Rubber Line Contour Detector, Providing Customized Development of All-vanadium Flow Battery Equipment, With a Detection Accuracy of 0.005mm
Flow Battery Flow Frame Rubber Line Contour Detector, Providing Customized Development of All-vanadium Flow Battery Equipment, With a Detection Accuracy of 0.005mm
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Huizhou, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lübao Technology - Customized Development of Flow Battery Separator Slitting and Testing Line, All-vanadium Flow Battery EquipmentNegotiableMOQ: 0 Set -
Liquid Flow Frame Cover Plate Bonding Dispenser, Providing Customized Development of All-vanadium Redox Flow Battery Equipment and Production Lines. Glue Output Accuracy: 0.01mlNegotiableMOQ: 0 Set
-
Automated Production Line for Flow Battery Stacks - Customized Development by Green Protection TechnologyNegotiableMOQ: 0 Set
-
Hydrogen Fuel Cell Multi-functional Airtightness Detector Capable of Detecting Bipolar Plates, Membrane Electrodes, and Electric StacksNegotiableMOQ: 0 Set
-
Green Protection Technology - Online Detection of Warpage, Air Tightness, Front and Back Color Difference, Creases, Scratches, White Spots, Dirt, Etc. on the Bipolar Plate Automatic Detection LineNegotiableMOQ: 0 Set
Production line overview:

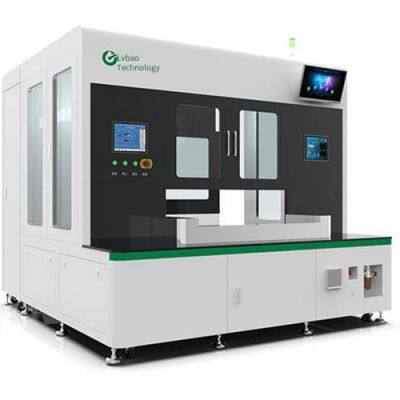

This equipment is used for the contour detection of the glue line of the liquid flow frame. The laser line contour system is mounted on the three-axis robotic arm module to scan and inspect the glue line contour. For the NG glue lines, the three-axis robotic arm module picks them up and places them on the NG unloading platform, while the OK products are sent to the next workstation for operation to ensure the quality of the glue line contour.
Advantages and highlights:
• Conveying width: 1300mm
• Conveying length: 1800mm
• Conveying speed: 3000mm/min
• Board picking stroke: 1600mm*150mm
• Board loading stroke: 1000mm*800mm
• Detection method: Visual detection
• Detection accuracy: ±0.005mm
• Equipment dimensions (L*W*H): 3000*1800*2000mm
