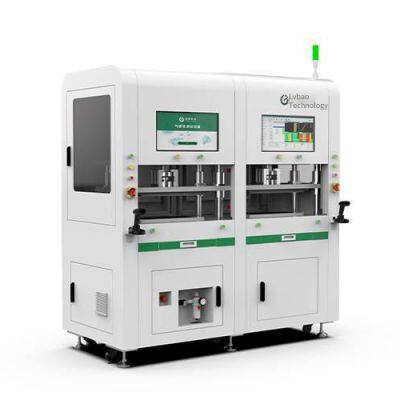

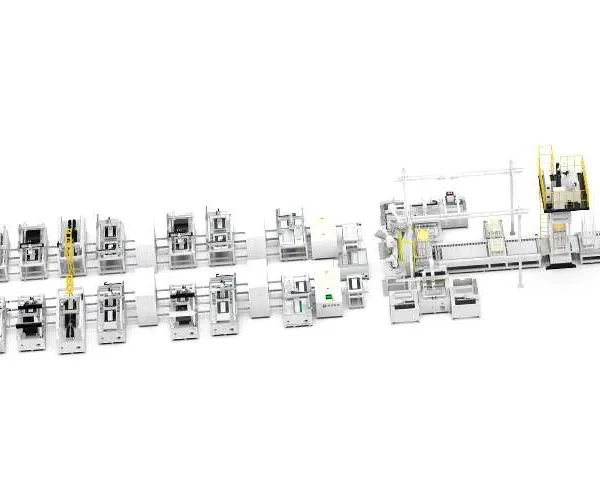

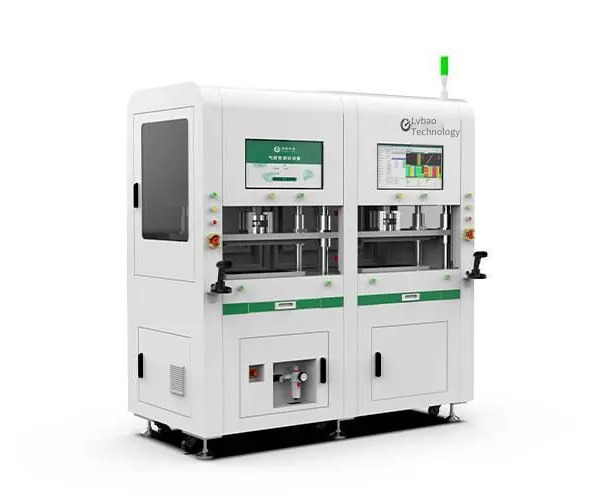

Home > Liquid Flow Frame Cover Plate Bonding Dispenser, Providing Customized Development of All-vanadium Redox Flow Battery Equipment and Production Lines. Glue Output Accuracy: 0.01ml
Liquid Flow Frame Cover Plate Bonding Dispenser, Providing Customized Development of All-vanadium Redox Flow Battery Equipment and Production Lines. Glue Output Accuracy: 0.01ml
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Huizhou, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automated Production Line for Flow Battery Stacks - Customized Development by Green Protection TechnologyNegotiableMOQ: 0 Set -
Hydrogen Fuel Cell Multi-functional Airtightness Detector Capable of Detecting Bipolar Plates, Membrane Electrodes, and Electric StacksNegotiableMOQ: 0 Set
-
Green Protection Technology - Online Detection of Warpage, Air Tightness, Front and Back Color Difference, Creases, Scratches, White Spots, Dirt, Etc. on the Bipolar Plate Automatic Detection LineNegotiableMOQ: 0 Set
-
Flow Battery Stack Press-fitting Machine, Providing Customized Development of All-vanadium Flow Battery Equipment and Production Lines. Pressure Accuracy: ±0.5%f.s.NegotiableMOQ: 0 Set
-
Green Protection Technology - Membrane Electrode Automatic Detection Line, Which Can Automatically Detect Defects Such as the Thickness, Airtightness, Front and Backside Contamination, and Carbon Paper Damage of Membrane ElectrodesNegotiableMOQ: 0 Set
Production Line Overview:
This equipment is used for dispensing on the liquid flow frame. It scans and locates the dispensing position of the product through a three-axis robotic arm module equipped with a vision positioning system. An imported precision screw valve is used for dispensing to ensure the dispensing accuracy of the frame sealing glue.
Advantages and Highlights:
• Conveyor Width: 1300mm
• Conveyor Length: 1800mm
• Conveyor Speed: 3000mm/min
• Board Picking Stroke: 150mm
• Board Feeding Stroke: 1600mm
• Dispensing Method: Screw Valve
• Glue Output Accuracy: 0.01ml
