Help CenterYG-JG Silicon-based Irradiance Sensor Solar Panel Irradiance Data Temperature for the Photovoltaic Power Generation Industry Output RS485, 0-20 mV
Related Products
-
TBQ-HW Near-Infrared Radiometer Solar Radiation Meteorological System Sensor Output 4～20 mA and RS485NegotiableMOQ: 1 Piece -
Class A High Real-Time Monitoring Solar Pyranometer Sensor 2000w Rs485 0-20ma for Weather StationNegotiableMOQ: 1 Piece
-
TBD-1 Diffuse Radiation Pyranometer Modbus RS485 Sensor Solar Pyranometer Sensor 2000W 4-20ma 0-20mv for Weather StationNegotiableMOQ: 1 Piece
-
JGXS-GF Scanning Snow Thickness Gauge for PV Power Stations DC12V 15W Modbus RS485 SensorNegotiableMOQ: 1 Piece
-
YG-WSD Temperature and Humidity Data Logger Modbus RS485 Sensor DC24V Power 3.6V Battery Monitor Ambient Temperature and Humidity Parameters.NegotiableMOQ: 1 Piece
I.Overview
The silicon-based irradiance sensor is a low-cost, high-reliability sensor developed by Jinzhou Sunshine Meteorological Technology Co., Ltd. specifically for the photovoltaic power generation industry, in accordance with the characteristics of solar panels. The sensor itself adopts a silicon-based structure that is highly similar to that of solar panels, making it an ideal reference system. In particular, its spectral response and tilt error are extremely close to those of solar panels, which provides a solid basis for using silicon-based sensors to accurately analyze the irradiance data of solar panels.
II.Principle
A silicon-based solar cell can serve as an irradiance sensor because its short-circuit current is proportional to irradiance. The monocrystalline silicon solar cells used in our sensor are connected in parallel. Thanks to the low resistance of the parallel connection, the operating current is almost identical to the short-circuit current. To minimize the impact of temperature on the measurement signal, a temperature sensor is integrated for data compensation. Mounted on the back of the solar panel, the temperature sensor delivers a reading that is approximately equivalent to the module temperature.
III.Features
1. Integrates monocrystalline silicon cells for measuring solar irradiance and module temperature
2. Equipped with an RS485 interface, supporting the Modbus RTU communication protocol
3. Enables high-quality long-distance data transmission
4. Usable either independently or in conjunction with Sunshine-brand photovoltaic environmental monitoring systems
5. Low power consumption and fast response speed
6. Compact size and easy installation
7. Supports multiple output modes including RS485, 0-20 mV and 4-20 mA
8. Extremely low failure rate, maintenance-free, suitable for long-term outdoor operation
9. Low cost and high accuracy
IV.Structural Composition
Monocrystalline silicon solar cells are embedded in ethylene vinyl acetate (EVA), and the laminated cells are integrated into a small aluminium-coated casing. The sensor is therefore highly similar in structure to standard photovoltaic (PV) modules. The cable interface is an IP67 waterproof connector. The mounting bracket features an adjustable angle, which only needs to be aligned with that of the PV module for operation.
V.Main Technical Parameters
Solar Cell | Monocrystalline Silicon (50mm×50mm) | Operating Temperature | -40℃ ~ +80℃ |
Protection Level | IP65 | Weight | 1 kg |
Overall Dimensions (L×W×H) | 187mm×120mm×78mm | Communication Protocol | Standard Modbus Protocol |
Output Interface | RS485 / 0-20 mV / 4-20 mA (Optional) | Power Supply | DC 12V |
Power Consumption | 10 mA | Measuring Range | Solar Irradiance: 0-2000 W/m² |
Response Time | 0.15 s | Module Temperature: -40~80℃ | |
Stability | 5% | Nonlinear | 0.10% |
Accuracy | 5% | Offset | 1 W/m² |

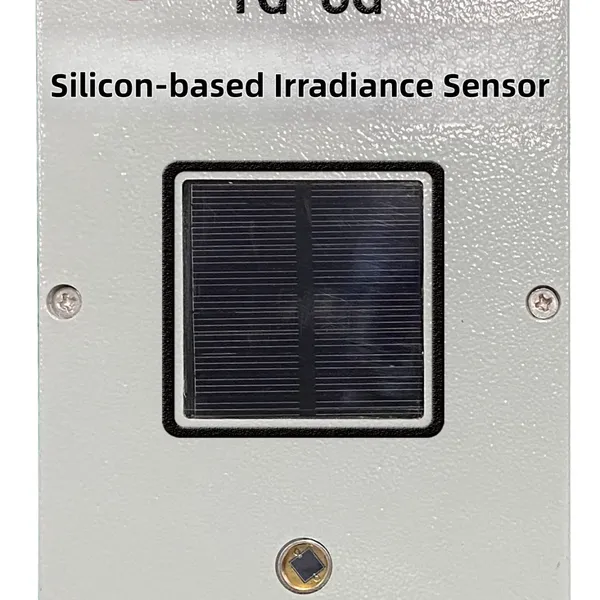

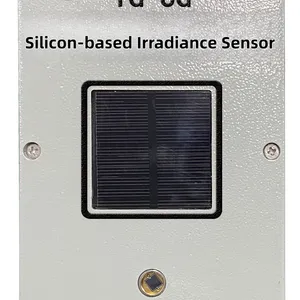

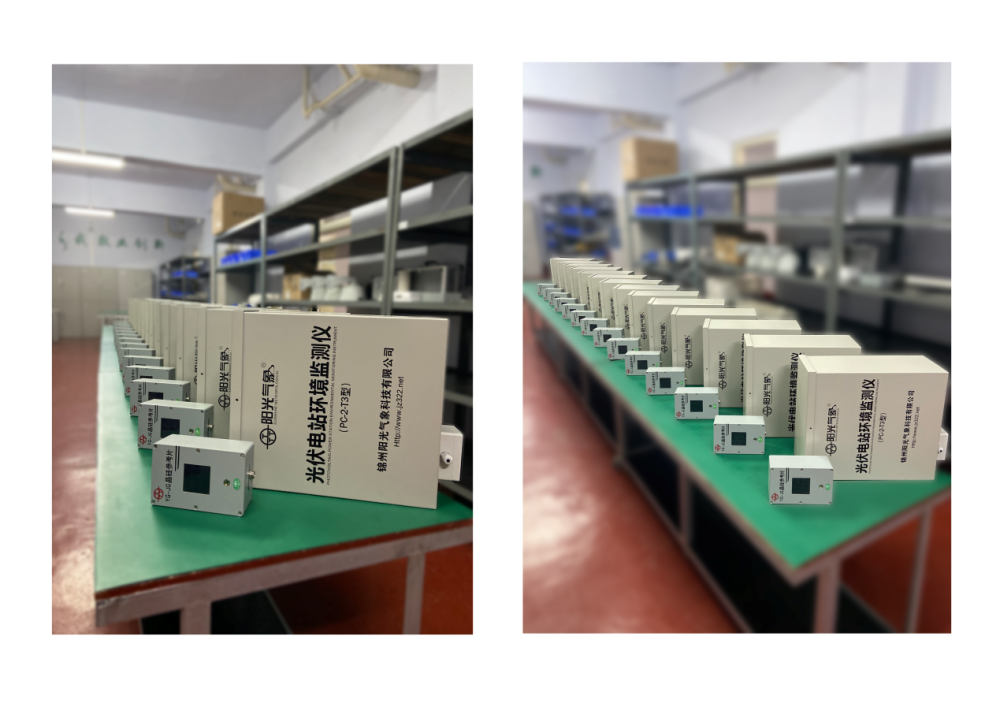

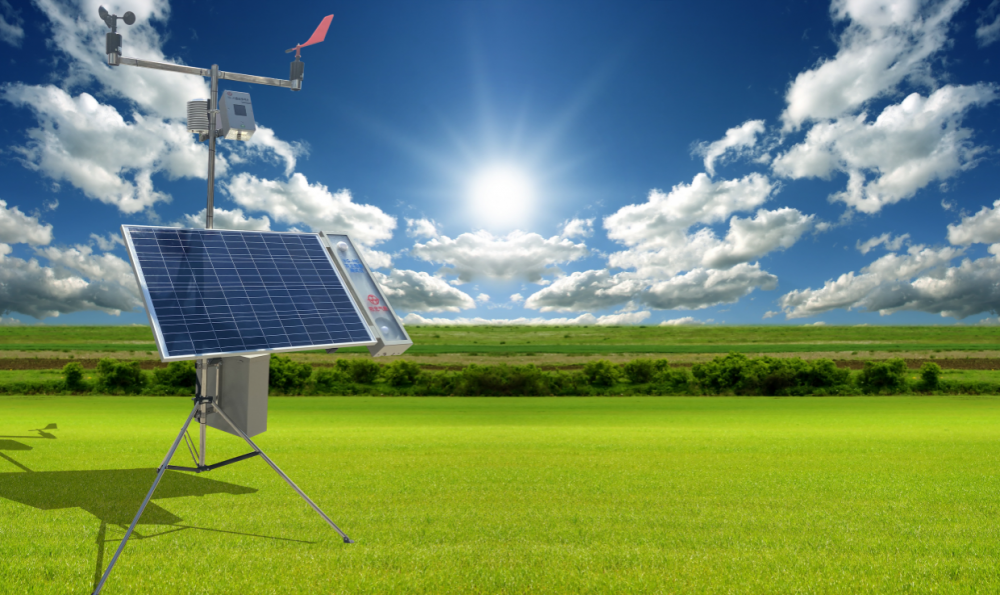

VI.Physical Display
