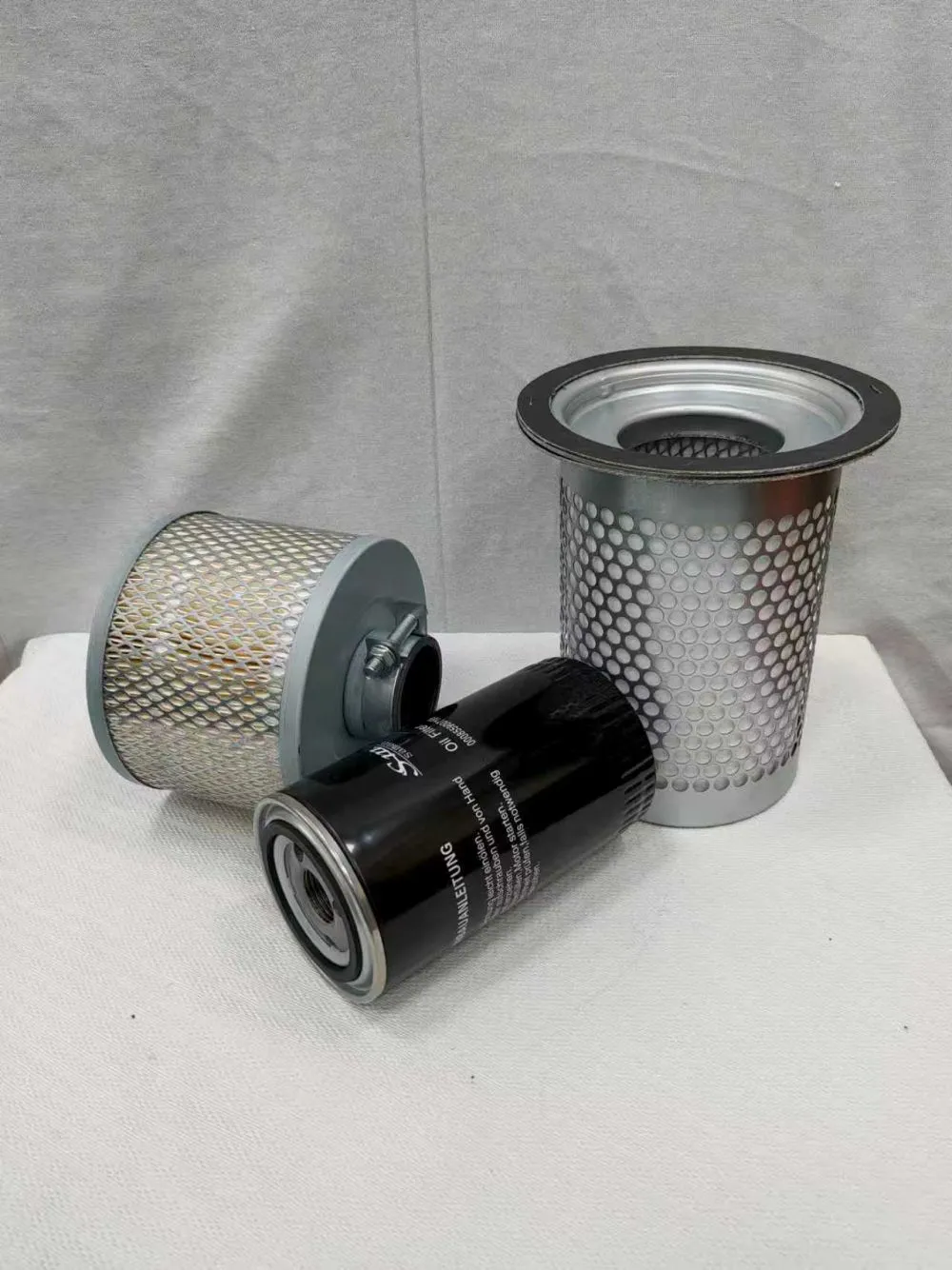

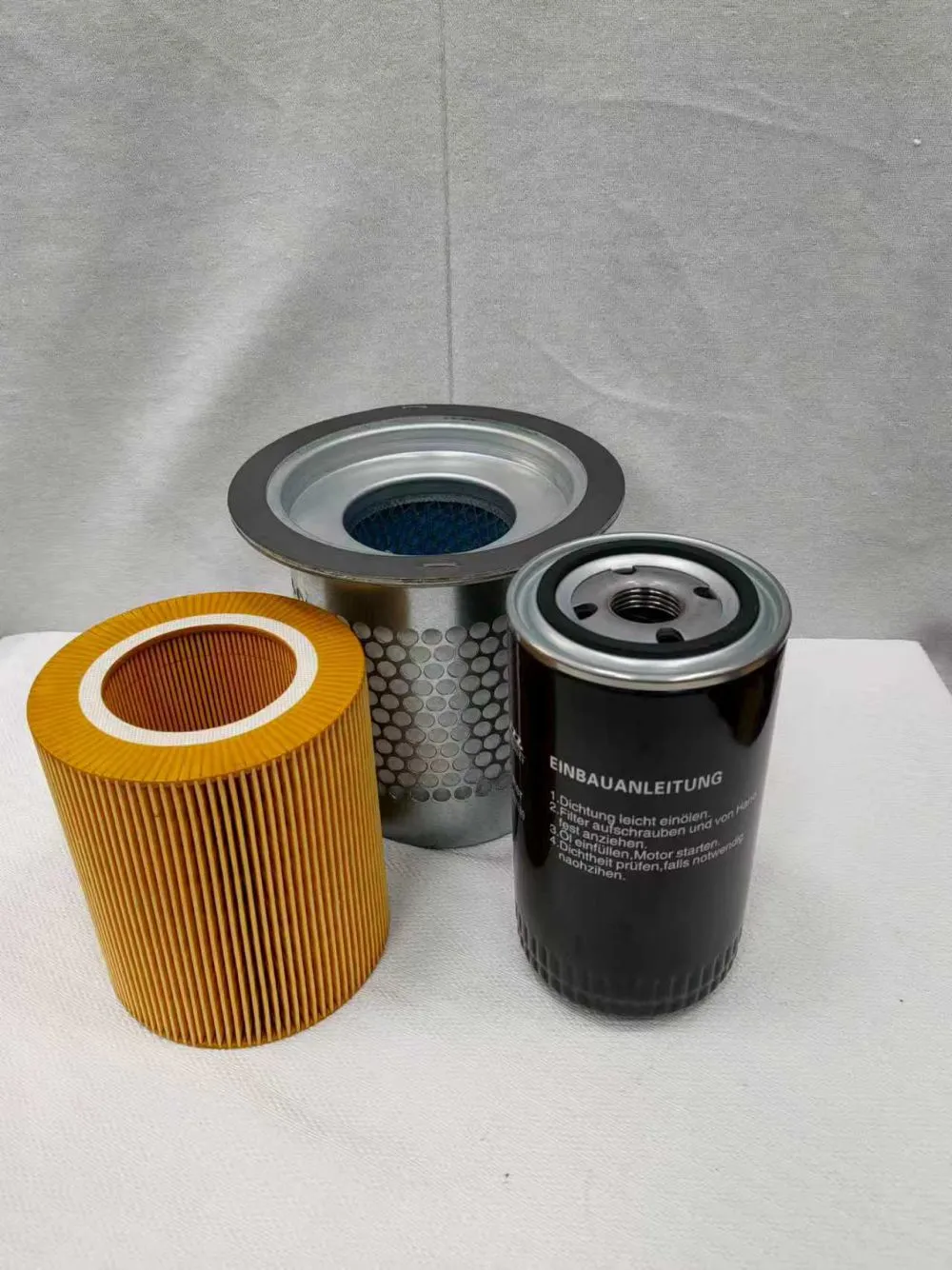

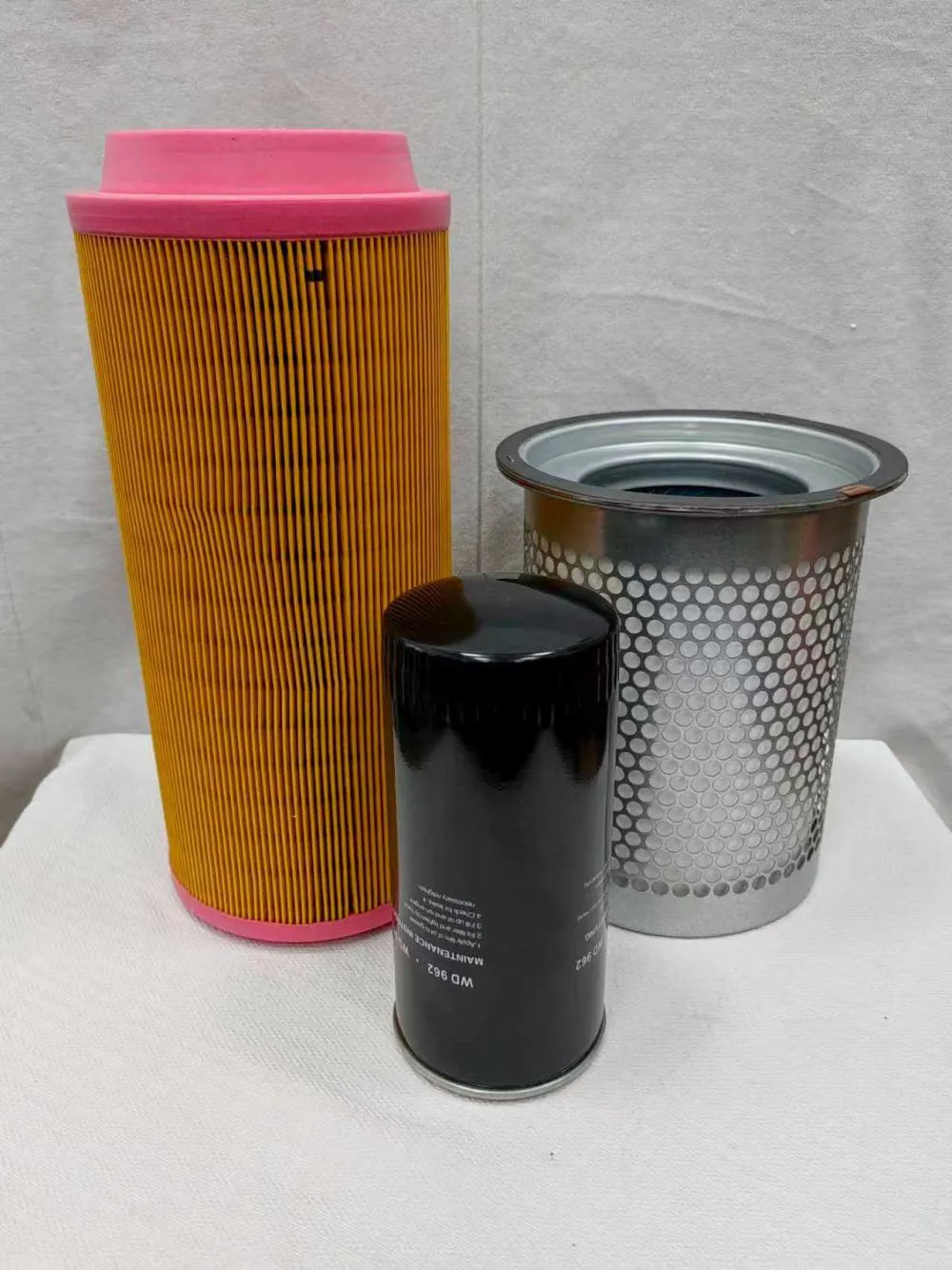

Help CenterSpecialized in Providing Three Filters for Screw Air Compressors: Air Filter, Oil Filter, and Oil Separator Core.
Related Products
-
Screw Air Compressor Parts, Air Compressor Consumables, Three Filters for Screw Air CompressorNegotiableMOQ: 1 Set -
Air Compressor Parts, Air Filter, Oil Filter, Oil Separation Core, Sensor, Frequency ConverterNegotiableMOQ: 1 Piece
-
Screw Air Compressor Three Filters, Air Compressor Air Filter, Air Compressor Oil Filter, Air Compressor Oil-gas Separator CoreNegotiableMOQ: 1 Piece
-
Saman Screw Air Compressor Specializes in Providing Complete Air Compressors and Three-filter Consumables.NegotiableMOQ: 1 Piece
-
Screw Air Compressor Three Filters, Air Filter Element, Oil Filter Element, Oil Separation ElementNegotiableMOQ: 1 Piece

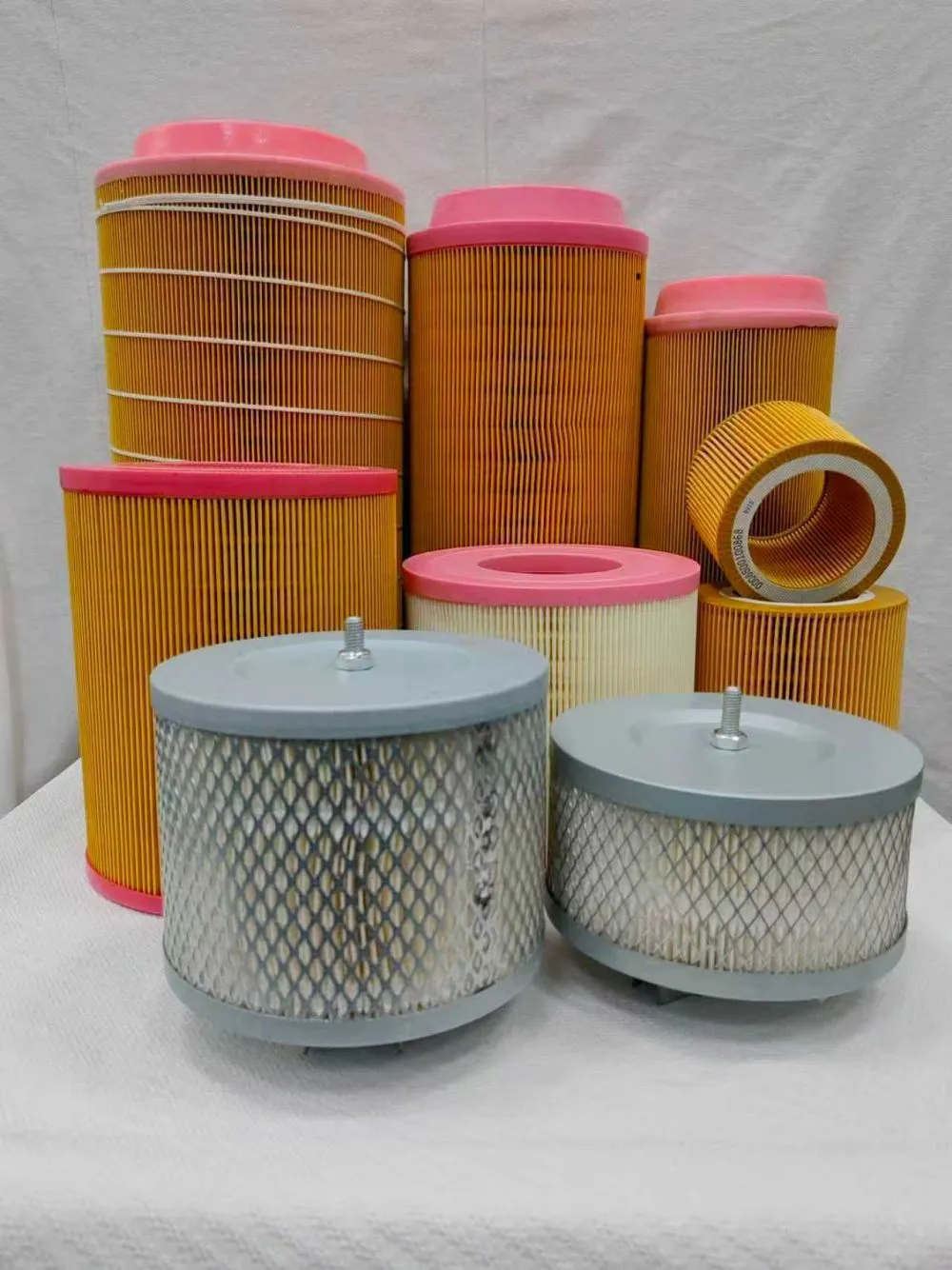

The functions and principles of the air filter in a screw air compressor: Mechanical interception: When compressed air passes through, larger solid particles are intercepted by fibers or membrane materials. This principle is commonly used in pre-filters and precision filters for removing particles. Cohesion effect: Liquid impurities such as water and oil gather into large liquid droplets within the filter core and are discharged by gravity. This method is mostly used in oil filters and precision filters. Adsorption effect: Activated carbon filters utilize the porous structure of activated carbon to adsorb odors and harmful gases, suitable for scenarios with high air quality requirements. Deep filtration: Through multiple layers of media or special structures, fine particles and microorganisms are removed. This principle is commonly used in membrane filters and high-efficiency precision filters to maintain purity.
The core function of the air compressor filter element is to filter impurities in the compressed air, including solid dust, oil mist particles, and liquid moisture, thereby protecting the main unit from contamination and ensuring the output of high-quality compressed air. Its working principle can be divided into the following steps: 1. Mechanical separation: The compressed air first passes through the cooler, where large oil droplets settle and separate due to gravity in the oil-gas separation tank. 2. Fine filtration: Small oil droplets (in suspension state) enter the oil-gas separation filter element and are intercepted by micrometer-sized glass fiber materials.
The core function of the air compressor oil separation core is to achieve efficient oil-gas separation, controlling the oil content in the compressed air to be below 3PPM, ensuring the quality of the compressed air and the safe operation of the equipment. 1. Core Function and Working Principle Oil and gas dual-stage separation. The initial separation is achieved through centrifugal force and gravity, and then a secondary coalescence separation is carried out using micrometer-sized glass fiber filter materials to effectively intercept oil mist particles with a diameter of less than 1μm. It adopts a triple mechanism of interception, diffusion, and aggregation to cause small oil droplets to coalesce into larger droplets and then return to the lubrication system.
