I. Product Overview

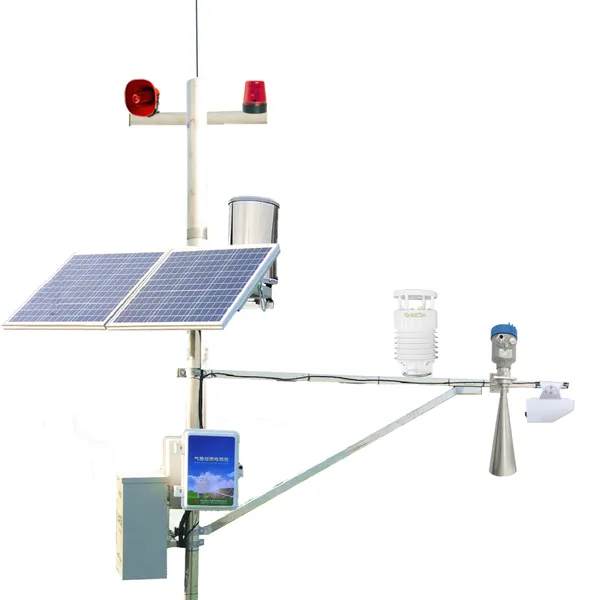

The TRM-ZSH Forest Fire Risk Meteorological Forecasting and Monitoring Station is a high-precision digital meteorological station developed for early warning and monitoring in response to the high incidence of forest fires. Renowned for its versatility and reliability (even in harsh environments), the station is available with multiple configuration options. Tailored specifically for fire risk forecasting, our forest fire prevention meteorological station excels in data display, logging and meteorological data transmission.
Equipped with a complete set of high-performance sensors, the station monitors wind speed and direction, precipitation, air temperature and relative humidity. It can also measure soil volumetric water content, soil temperature, solar radiation, as well as a wide range of other meteorological parameters related to forest fire prevention.
II.Product Features
1.Portable integrated structural design with an attractive appearance, facilitating easy and straightforward installation, and reliable operation in various harsh field environments.
2.High precision in data measurement and stable long-term operation.
3.Data collection density can be freely set according to actual measurement needs.
4.Both hardware and software adopt a modular and open design, enabling flexible combination and use.
5.Flexible communication methods: monitoring data can be downloaded via a computer and stored in standard EXCEL or PDF formats.
6.Energy-saving and environmentally friendly design, powered by rechargeable batteries (continuous use time > 48 hours) suitable for field operations; equipped with a solar power supply system for year-round use in areas without electricity.
7.Capable of collecting, storing, displaying and processing meteorological elements including air temperature, ambient humidity, dew point temperature, atmospheric pressure, average wind speed and direction, instantaneous wind speed and direction, solar radiation, precipitation, water surface evaporation, wind chill index, ET (evapotranspiration), temperature/humidity/light/wind index, and time.
8.Large-capacity internal data storage, capable of continuously storing hourly data for more than 100 days. To meet the needs of long-term field observation, an external USB flash drive data storage device can be connected to expand data storage space, realizing multi-element and intensive data collection and stable data storage.
9.Large-screen graphic LCD display that shows all meteorological element data and graphics on one screen, facilitating direct on-site observation and reducing the inconvenience of monitoring data through a computer.
10. The software monitoring system integrates the mathematical model of the "National Forest Fire Risk Climate Rating Standard", realizing multiple functions conducive to fire prevention, such as real-time online monitoring, event alarm (e.g., strong wind, ultra-low humidity), and on-the-hour message reporting.
11.Adopts advanced wireless network communication functions, which can be divided into three wireless transmission modes according to different communication distances: short-distance wireless data transmission, medium-distance wireless data transmission, and long-distance wireless data transmission.
12.Reliable three-proof design with a protection level of IP65, and complete protective measures such as lightning protection and anti-interference.
13. Observation bracket: Mobile integrated triangular observation bracket with a steel structure design, featuring an attractive appearance, complete functions and easy installation; a vehicle-mounted observation bracket can also be configured according to customer requirements, suitable for environmental monitoring emergency vehicles in different scenarios.
III.Technical Specifications
Item | Model | Measuring Range | Resolution | Accuracy |
Ambient Temperature | PTS-3 | -50～+150℃ | 0.1℃ | ±0.2℃ |
Relative Humidity | PTS-3 | 0～100% RH | 0.1% RH | ±2% RH |
Dew Point Temperature | PTS-3 | -40～50℃ | 0.1℃ | ±0.2℃ |
Wind Direction | EC-9X | 0～360° | 3° | ±3° |
Wind Speed | EC-9S | 0～60 m/s | 0.1 m/s | ±(0.3+0.03V) m/s |
Atmospheric Pressure | QA-1 | 550～1060 hPa | 0.1 hPa | ±0.3 hPa |
Precipitation | L3 | 0～999.9 mm | 0.2 mm | ±0.4 mm |
Soil Temperature | PTWD-2A | -50～+80℃ | 0.1℃ | ±0.1℃ |
Soil Moisture | TDR-3 | 0～100% vol | 0.1% vol | ±2% vol |
Data Logger | TRM-ZS115 | meteorological parameters | 0.1 | High Precision |
Observation Bracket | PC-3ZJ | 3 m (Height) | Outdoor Use | Stainless Steel Structure with Anti-corrosion Spraying, Lightning Protection Device Included |
Application Scenarios
