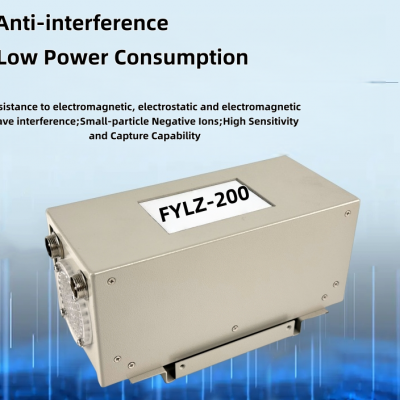

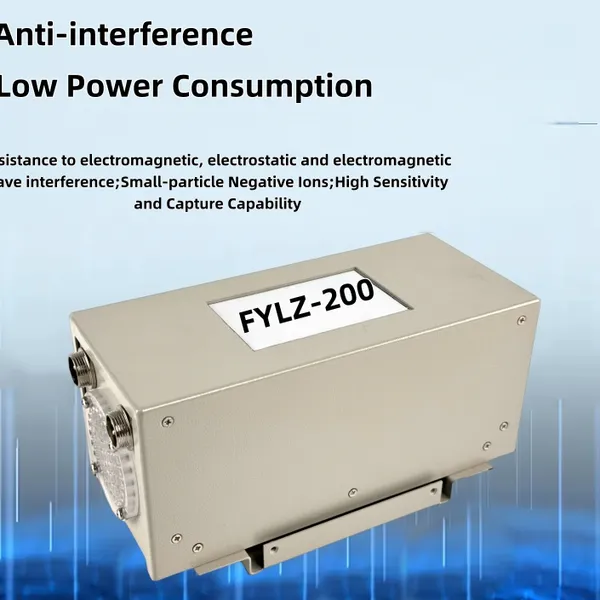

Help CenterFYLZ - 200 Atmospheric Negative Oxygen Ion Monitor Weather Sation RS485 Environments Monitor
Related Products
-
L3/L3A Rain Gauge Tipping Bucket Rain Sensor Outdoor Weather Station Accessory Rain GaugeNegotiableMOQ: 1 Piece -
KQZL-1 Miniature Ambient Air Quality Monitoring System Air Quality Weather Station Monitor SO₂,NO₂,CO,O₃,PM2.5, PM10,TVOCNegotiableMOQ: 1 Set
-
EC-8SX ABS Plastic Digital Anemometer for Weather Stations RS485 4-20mA 0-5V Wind Direction Sensor 3 Cup Wind Speed SensorNegotiableMOQ: 1 Piece
-
TBS-2-2 Solar Direct Radiation Pyranometer Pyrheliometer for PV Environmental Monitor RS485 OutputNegotiableMOQ: 1 Piece
-
TBS-2A Sunshine Duration SensorNegotiableMOQ: 1 Piece
I. Product Brief
With the widespread popularity of eco - tourism and health - oriented lifestyle concepts, the concentration of negative oxygen ions has become a core indicator for evaluating air quality. The FYLZ - 200 Atmospheric Negative Oxygen Ion Monitor is an instrument designed for 24/7 automatic online monitoring of negative oxygen ion concentrations in industrial parks, indoor environments, tourist attractions and ecological zones (such as constructed wetlands, ecological scenic spots, botanical gardens, etc.).
Based on the capacitance inhalation method and cylindrical electrode technology, the monitor adopts a unique air flow buffering technology, which ensures stable air flow and reliable ion capture, and its measurement stability is unparalleled in the industry. It not only facilitates the professional analysis and research on atmospheric ions, but also enables accurate measurement of the number of negative ions emitted from substances such as ores and negative ion powder.
II. Product Features
1. The cylindrical capacitive air collector adopts a negative-pressure dust removal structure, which not only boasts excellent stability but also enables long-term operation in harsh environments.
2. The cylindrical capacitive air collector is equipped with a reliable electrostatic shielding function, which can effectively mitigate the adverse effects of static electricity on measurements.
3. The integrated air flow buffering technology and centrifugal pneumatic structure eliminate measurement interference caused by spiral air currents.
4. The monitor housing is made of metal with an anti-corrosive coating, featuring strong moisture resistance. It operates normally without frost or condensation even in high-humidity environments.
5. Built-in high-precision amplification circuit allows for highly sensitive detection of negative ion counts.
6. It supports an automatic operation mode requiring no manual intervention. The device starts working automatically upon power-on, enabling continuous measurement and real-time data display.
7. It is expandable with a GPRS communication module to realize wireless data transmission.
8. Configured with an RS485 interface and standard Modbus protocol, it can connect to various types of data loggers or computers for data upload and storage. Device parameters can also be configured and modified via the RS485 interface.
III. Product Specifications
Measurement Function |
Negative Ions |
Measurement Range |
Range 1: 0 ~ 10,000 ions/cm³ Range 2: 0 ~ 100,000 ions/cm³ Range 3: 0 ~ 10,000,000 ions/cm³ |
Measurement Sampling Frequency |
1 time/second |
Power Supply |
DC12VOutput |
Output Interface |
RS485 |
Communication Protocol |
Standard Modbus Protocol |
Power Consumption |
Max ≤ 1W; Min ≤ 0.25W |
Measurement Resolution |
1ion/cm³ |
Measurement Error |
Ion Concentration ≤ ±10% |
Mobility |
Time-base Range for Small Ions: 0.4 - 0.8 cm²/(V·s) |
Operating Temperature |
-30℃ ~ 60℃ |
Operating Humidity |
0 ~ 100%RH (No Condensation) |
Dimensions (L×W×H) |
300 × 100 × 100 mm |
Protection Grade |
IP66 |
Signal Output |
RS232, RS485 (Optional), 4-20mA |
Weight |
2kg |
