I.PRODUCT OVERVIEW
The TBQ-2W Solar Radiation Meter is a new-generation military-grade handheld radiation meter independently R&D and manufactured by Sunshine Meteorology. Featuring compact size, light weight, high precision and stable performance, this product integrates multiple functions including monitoring, display, storage and communication, making it a truly portable solar radiation measurement device that fits in the palm of your hand.
The R&D of TBQ-2W addresses two core pain points of conventional products: the low measurement accuracy of regular handheld radiation meters and the bulky system architecture of high-precision radiation monitoring equipment. In addition, the device adopts a multi-protection design concept with anti-corrosion, explosion-proof, waterproof, shockproof and dustproof capabilities, which enables reliable operation in various harsh environments. It is thus recognized as the preferred choice for applications in the military, maritime navigation, scientific research and other fields.
II.TECHNICAL PARAMETER
Measured Parameters | Instantaneous solar radiation value, interval accumulation, daily accumulation, time |
Operating Environment | Temperature: -40℃ ~ +80℃; Relative Humidity: 0 ~ 100% RH |
Power Supply | Built-in 5.2Ah lithium battery + 20W solar power supply system |
Communication Interface | RS485/RS232 (Wireless communication such as GPRS/Wi-Fi is expandable) |
Output Protocol | Standard Modbus Protocol |
Baud Rate | 4800 ~ 115200 bps (Default: 9600 bps) |
Casing Material | Metal with plastic-sprayed coating |
Average Power Consumption | 25mA / 12V DC |
Data Refresh Rate | 1s |
Measurement Principle | Thermoelectric effect principle |
Measuring Range | 0 ~ 2000 W/m² |
Measurement Accuracy | ＜5% (2% for Class I meter) |
Sensitivity | 7 ~ 14 μV/(W/m²) |
Cosine Response | 5% (at solar altitude angle of 10°) |
Spectral Range | 0.3 μm ~ 3.0 μm |
Key Functions | One-key operation for power on/off, backlight activation, and display page switching |
Data Storage | Built-in 2M memory, capable of storing up to 80,000 sets of continuous data records |
Data Acquisition Accuracy | 16-bit AD acquisition resolution, 10 μV resolution |
Software Support | Professional upper computer software; Cloud platform remote monitoring is achievable with GPRS wireless communication module installed |
Display Screen | Large-screen Chinese character LCD with 128×64 dot-matrix technology, supporting simultaneous display of 32 Chinese characters or graphics. Full Chinese menu operation, real-time display of monitoring data, time and configuration parameters. Compatible with both PC-connected operation and standalone monitoring. |
Protection Grade | IP67 |

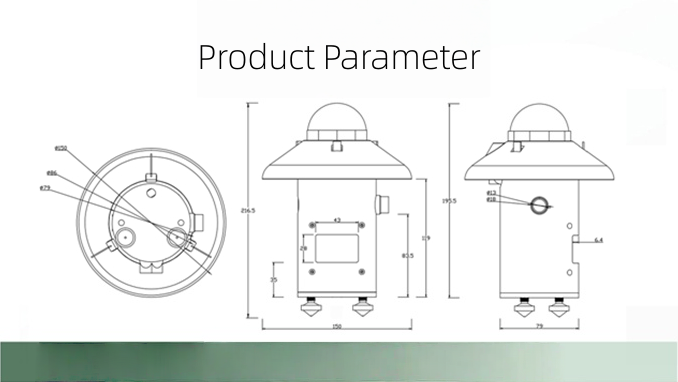

Dimensions | 216.5 mm (H) × ∅79 mm (D) |
Weight＜1.8 kg | Weight＜1.8 kg |
III.PRODUCT FEATURES
1. Five-protection DesignAdopted military-industry control standards for structural design.
2. Portable Five-protection StructureIntegrated with waterproof, shockproof, anti-corrosion, dustproof and explosion-proof capabilities.
3. Extreme Environment AdaptabilitySuitable for operation in extreme and harsh environments.
4. Integrated Structure DesignAdvanced technology integrates multiple functions including monitoring, display, storage and communication in one device.
5. High Measurement AccuracyThe solar radiation measurement adopts the thermoelectric effect principle to ensure high precision. All products have passed the verification of national meteorological metrological authorities, featuring stable performance, compact and aesthetic structure, high integration and accurate measurement.
6. Professional Analysis SoftwareEquipped with professional analysis software, it can store and download the recorded data in standard EXCEL format to the computer and generate various analysis charts. When working in wireless communication mode, it can connect to the Sunshine Smart Cloud Platform to realize cloud-based big data management.
7. Versatile Application ModesSupporting multiple usage modes, it can be operated handheld or fixed on a bracket for long-term outdoor monitoring.
IV.CONFIGURATION LIST
Item No. | Product Name | Model | Quantity | Unit | Remarks |
1 | Solar Radiation Meter | TBQ-2W | 1 | unit | Standard Configuration |
2 | Management Software | TBQ-2W | 1 | set | |
3 | Carrying Case | - | 1 | piece | |
4 | Solar Power Supply System (20W) | TDC-20 | 1 | set | Optional |
5 | Wireless Communication Module (4G) | GPRS-2 | 1 | piece | |
6 | Sunshine Smart Cloud Platform | ZHY-1 | 1 | set | |
7 | Portable Bracket | PC-Z | 1 | set | |
8 | Portable Bracket Bag | - | 1 | piece |
V.APPLICATION AREA
01 Meteorological
02Environment
03Military affairs
04Navigation
05Scientific research
