Product Description:

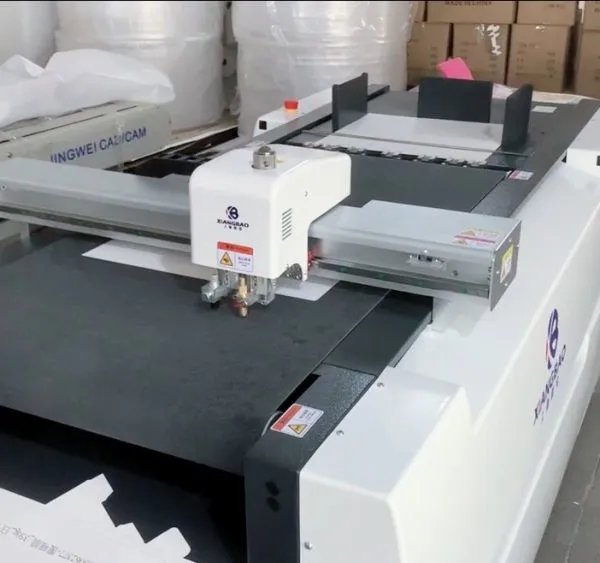

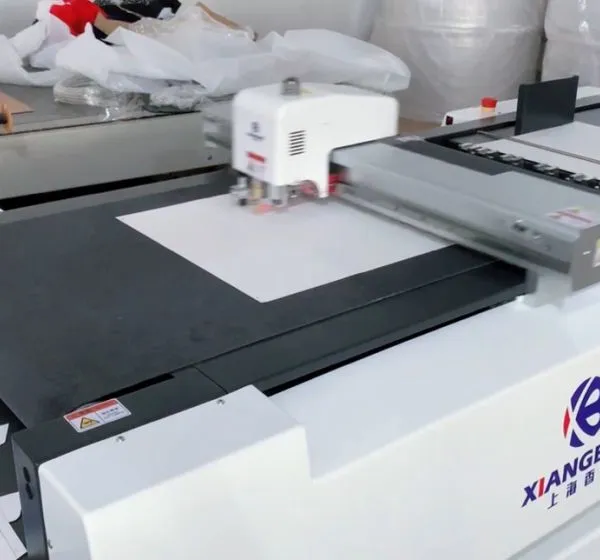

The fully automatic digital proofing and die-cutting machine adopts a fully automatic paper feeding suction cup and a fully automatic lifting feeding platform. Combined with various cutting tools, it can complete full cuts, half cuts, creases, markings, and other production processes at high speed and with precision. It is suitable for proofing and small-batch personalized customization in the graphic design, advertising signage, and printing and packaging industries. It is a high-performance, cost-effective intelligent device that meets all your creative processing needs.
Features:
01 High-frequency electric blade: Cuts more materials and thicker materials to meet different customer needs.
02 Integrated intelligent cutting/creaming/drawing functions—meeting all your creative processing needs: Cuts labels of any shape, cuts and creases cardboard boxes of any type.
03 Precise automatic positioning system: Combined with a high-definition CCD camera, it achieves automatic and precise positioning and automatic overlay cutting of various materials, solving problems such as inaccurate manual positioning and printing deformation, thus achieving a simple yet precise cutting purpose.
04 QR code management system: Scanning QR codes allows for quick reading of cutting tasks. 05 Self-loading feeding system: A fully automatic feeding system makes production more efficient.
Technical parameters:
Model: 750-530
Cutting area (length * width) ：750MM*530MM
Floor area (length * width * height) ： 2600MM*1000MM*1150MM
Cutting tools ：Creasing knife, half-cutting knife, sharp knife
Cutting materials :Car sticker/sticker, reflective material, cardboard, plastic，self-adhesive
Cutting thickness ：≤2MM
Feeding system ：Vacuum suction cup
Maximum cutting speed ：1000MM/S
Repeat accuracy ：±0.1MM
Computer configuration : Computer configuration i5, 10400
File format ：PLT, DXF, HPGL, PDF, EPS
Voltage ：200V±10%50HZ
Machine power ：3.75KW
Machine net weight (approximately) : 400 kg
Machine size (approximately) : 2100*960*1200mm
Machine delivery volume conversion weight: 650 kg (volume: 2220*1150*1440)
