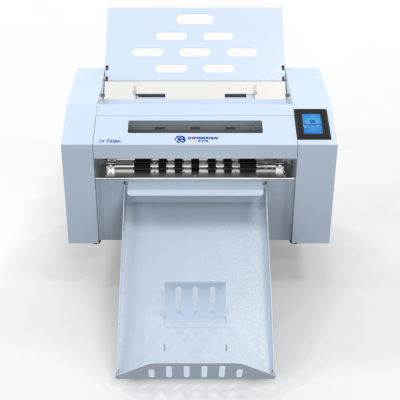

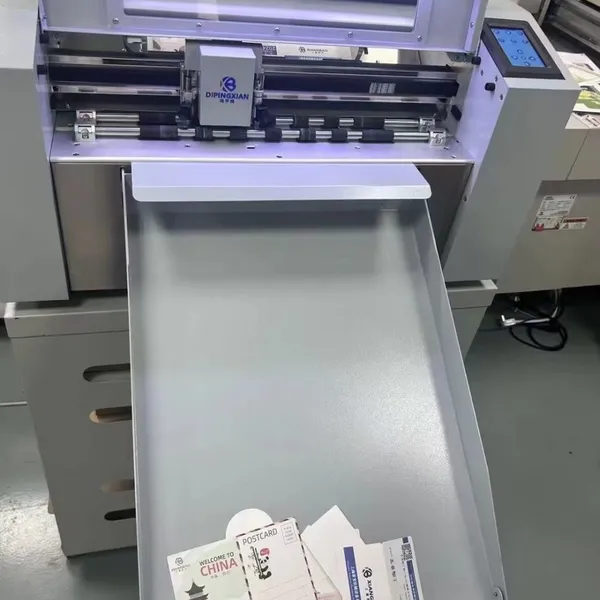

Shanghai Horizon ZN-350plus Multi-function Die Cutting Machine

Product introduction:

1. Double knife design: ZN-350plus adopts a double knife design, and can be half-cut, full cut, dotted and line, indented, etc. at one time, without the need for secondary paper removal. At the same time, both blades are controlled by independent voice coil motor (motor), and the cutting and indentation are independently cut, so that the cutting and indentation force are controlled more accurately and the cutting and indentation effect is more stable. The double knife uses independent voice coil motor, which has a longer service life, improves the indentation cutting effect while effectively reducing the failure rate.

2. High-performance servo motor: The X and Y operation are controlled by high-precision overspeed servo motors, which are faster, have higher accuracy, have smaller sounds, and have better stability. The control is more accurate. The overspeed servo motor realizes closed-loop control of position, speed and torque; avoids the problem of stepping motor losing steps during long-term operation. It is suitable for occasions where high-speed response requirements are required.

3. High stability beam: ZN-350plus adopts a high-precision beam design, referring to the Japanese Tuwang cross beam running structure. At the same time, the car adopts a lightweight structure of all aluminum and is fixed with eight-point support. The support points are supported by steel bars. It is difficult to deform and wear after a long period of operation. The car uses Japanese NSK bearings to operate. It is durable. The high-precision beam greatly improves the operating accuracy and stability of the machine, ensuring that the machine does not shake during high-speed operation and has better stability.

4. High-precision trolley: ZN-350plus cutter is controlled by a voice coil motor (voice coil motor). The voice coil motor has high precision and high speed, and is faster in response, durable, wear-resistant and long service life. In this way, the cutting material cutter strength control is more accurate and stable, and it is not easy to have inconsistent depths, ensuring the pass rate of the finished product, effectively eliminating the phenomenon of waste materials, and realizing unattended.

5. High-resolution CCD camera: The ZN-350plus uses a high-resolution CCD high-definition camera for accurately detecting marking points (corners are compatible with dots), and can accurately detect marking points on color and reflective materials. It can be typesetted according to customer needs, thereby saving materials and reducing production costs. It can also support lighting brightness adjustment, and the lighting brightness can be adjusted freely according to different materials to increase the accuracy of recognition. The camera can scan 4 marking points in less than 3 seconds, saving production time, improving work efficiency, and reducing costs.

6. QR code system: ZN-350plus can automatically read the QR code printed on the material. You only need to add the QR code when making the file and print out the QR code file. The machine will automatically read the QR code file and accurately cut it. This function can effectively reduce the time to find files and improve work efficiency. In addition, ZN-350 can also support network QR code reading. When making QR code files, save the QR code file to the specified computer folder and select QR code to read in the plug-in. The machine will automatically read the specified QR code folder and automatically find the QR code for accurate cutting. This will improve work efficiency

7. Intelligent software: The ZN-350plus operation software adopts CDR and AI+ plug-in modes, generates corner lines and dot marking points with one click, and double marking points are recognized. The plug-in automatically generates marking points based on paper size and content, typed in one click, and generates outlines with one click. The software automatically optimizes the cutting path, which is convenient for user operations, is simple and fast. It improves user work efficiency. At the same time, the machine optimizes the paper pickup method. When the paper pickup fails, the paper will be automatically returned. Repeat the paper feed three times again to ensure the smoothness of the paper feed.

8. Multiple transmissions: The ZN-350plus operation software adopts remote control of network cable, WIFI, USB disk, and USB data cable. It can support one computer to connect to multiple machines to send synchronously. It can connect to up to 100 machines at the same time, or one machine can use multiple computers to send remotely. Each computer can send the operation machine separately, without the need for a special computer to operate. For graphic advertising stores, the machine location can be placed at will, and remotely sent by network ports and WIFI, and does not use traditional USB data cables to connect the machine, making it more convenient to use. You can also use a USB drive to operate offline without using a network or USB cable. Through the printer, marking points and patterns are printed out, and the machine automatically feeds paper, automatically positions, automatically cuts, and automatically outputs paper, and realizes automatic operation

9. Humanized function design: The ZN-350plus has a count skip recording function. When the user puts more materials into the machine for cutting, the user does not need to look at the machine. There will be counts after the machine is cut. If there is a material that fails to scan the material in the middle, the machine will automatically spit out the material and record the number of scans in the settings. The user only needs to check the number of skipped parts after the machine is cut, which can determine whether there is any problem with the cutting, which saves customers time and realizes unmanned duty of the machine. Improve work efficiency

10. High-quality materials: The ZN-350plus motherboard chip uses ST imported chip, which has high performance, low power consumption, durability and very good stability. X and Y running belts are made of imported Pioneer belts, with good transmission stability, higher accuracy, durability and very strong stability. The Sharp sensor is used to provide high sensitivity, long life and the sensor status can be observed in the machine settings. When problems arise, users can find problems and repair them in time. The paper feed adopts a thickened barrier gauge with a thickness of 9 mm. In the case of large batches of paper removal, the barrier is not easy to loosen, and the paper is not easy to skew and smooth.

Technical parameters:

Model: ZN-350plus

Display mode: 4-inch color capacitive touch screen

Material cutting range: Width: 200-350mm, 200-800mm (increase the length by extending the paper tray)

Number of cutter heads: double cutter heads

Cutting tools: engraving knife, indentation

Mechanical precision: 0.01254mm

Fastest cutting speed: 1600mm/s

Maximum pressure: 1000g Minimum

cutting pattern: 5mm diameter circle

The thickest material that can be cut is 350g

Feeding time: 2 seconds

Transmission method: network cable, WiFi, U disk, USB data cable

Paper Loading capacity: 180 sheets (0.2 thickness)

Language: Chinese, English, Spanish, Danish, Turkish, Hungarian

Voltage: Support 110V/220V (automatic voltage conversion)

Operating software: AI (CS6-2023), coreidraw (x4-x8.2017-2023) (continuously updated)

Operating environment: Temperature: 10°to 35° Humidity: 35 to 75% H

Computer system: Windows 7-10

Dimensions (mm) (approximately): Non-expanded dimensions: Length 460 mm Width 770 Height 560

Expanded dimensions: Length 1220 mm Width 770 Height 560

Net weight (approximately): 50 kg

Gross weight (approximately): 60 kg

Packing dimensions (approximately): Length 570 mm Width 890 mm Height 640 mm
