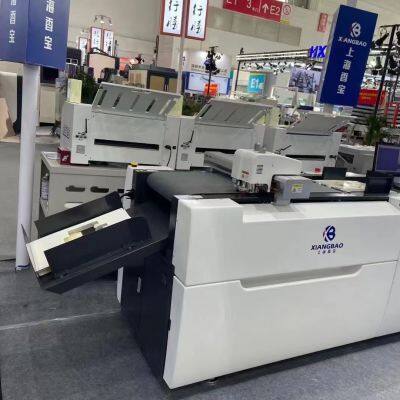

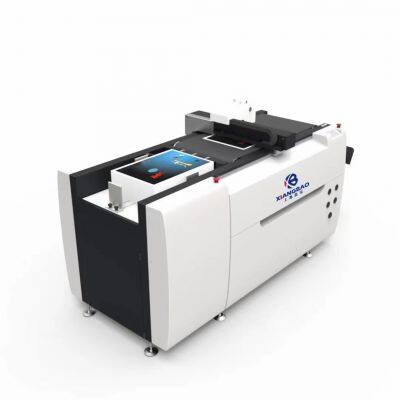

Shanghai Horizon 6040 Fully Automatic Digital Proofing Die Cutting Machine

Description:

 The fully automatic digital proofing die-cutting machine adopts fully automatic paper feeding suction cup and fully automatic lifting feeding platform. With various types of cutting tools, it can complete full cutting, half cutting, crease, marking and other production processes at high speed and precision. It is suitable for proofing and small batch personalized customization in the graphic and text quick printing, advertising logo, printing and packaging industries. It is a cost-effective intelligent equipment that meets all your creative processing.

Features:

01 High-frequency electric knife: cutting more materials and thicker cutting thickness to meet the needs of different customers

02 Integrates intelligent cutting/crease/drawing functions to meet all your creative processing journeys: cutting labels of any shape, cutting and creasing cardboard boxes of any box type

03 Accurate automatic positioning system: with high-definition CCD camera, it can realize automatic and precise positioning of various materials, automatic nesting, solve problems such as inaccurate manual positioning and printing deformation, so as to achieve simple and precise cutting purpose

04 QR code management system: scanning QR code can quickly read cutting tasks 05 Self-lifting feeding system: fully automatic feeding system to make production more efficient .

05Self-lifting feeding system: Fully automatic feeding system makes production more efficient .

Model: 600-400

Cutting area : (length * width) 600MM*400MM

Floor space : (length * width * height) 2350MM*900MM*1150MM

Cutting tool : Creasing knife, half cutting knife

Cutting material : Car sticker, self-adhesive paper, cardboard, PP paper, reflective material

Cutting thickness : ≤2MM

Feeding system : Vacuum suction cup

Maximum cutting speed : 1000MM/S

Repeat accuracy : ±0.1MM

Computer configuration: Computer configuration i5, 10400

File format : PLT, DXF, HPGL, PDF, EPS

Voltage : 200V±10%50HZ

Machine power : 3.5KW

Dimensions: 2170*1100*1480MM

Machine net weight: 300 kg

Shipping volume converted weight: 600 kg (volume 1280*1000*560)
