Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > 640 Machining Center, Vertical Machining Center 640, Small Cnc Machining Center

640 Machining Center, Vertical Machining Center 640, Small Cnc Machining Center

640 Machining Center, Vertical Machining Center 640, Small Cnc Machining Center thumbnail-3

640 Machining Center, Vertical Machining Center 640, Small Cnc Machining Center photo-1

640 Machining Center, Vertical Machining Center 640, Small Cnc Machining Center photo-2

640 Machining Center, Vertical Machining Center 640, Small Cnc Machining Center photo-3

Key Specifications

Get Latest Price

Main Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market

Location:

Yancheng, Jiangsu, China

Contact Supplier Request Quote Chat Now

Jiangsu Daxiang Intelligent Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

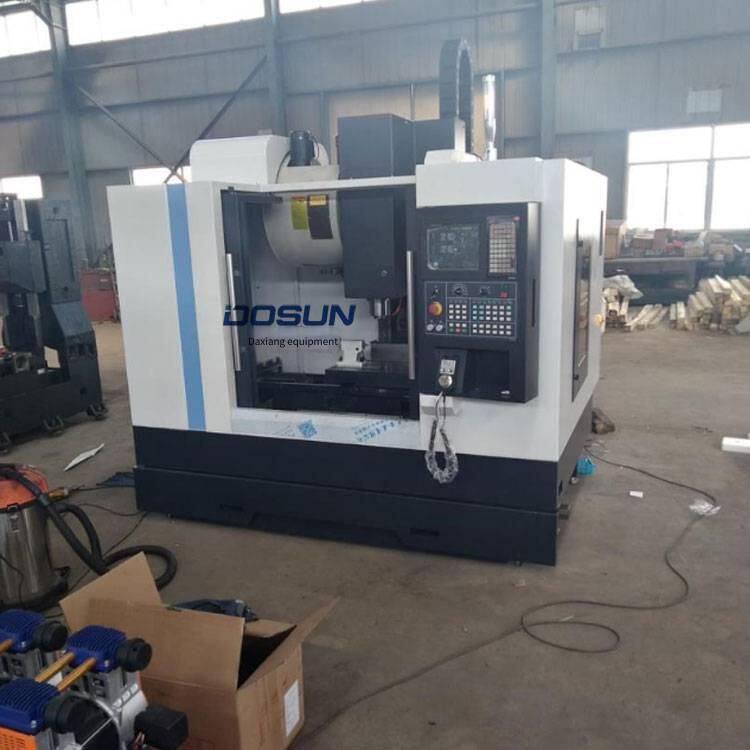

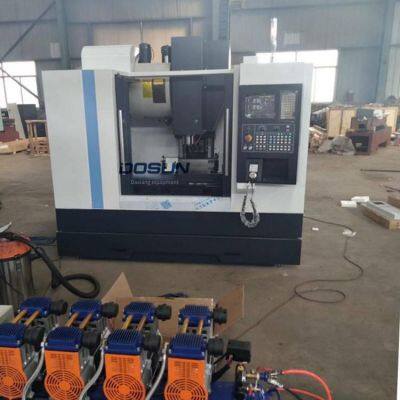

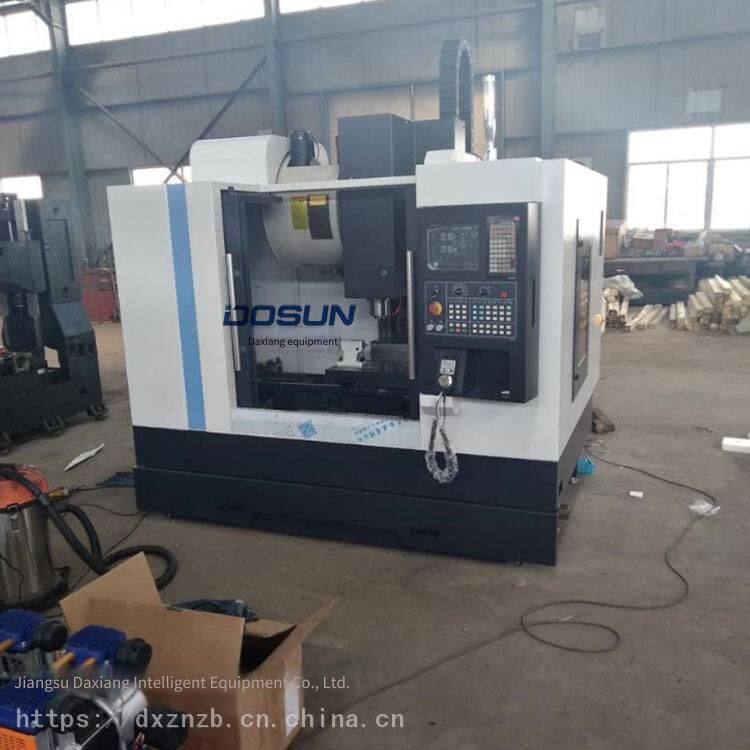

VMC640 Vertical Machining Center (Linear Guide Machine)

I. Design Technical Parameters

Item Name	Technical Parameters
Workbench Size	900 × 330
Workbench Load-bearing (Uniformly Distributed)	200
Workbench T -Slot (Number of Slots / Width / Spacing)	5-14 × 60
X -Axis Stroke	640
Y -Axis Stroke	400
Z -Axis Stroke	500
Spindle Specification	BT40-120
Spindle Speed	8000
Recommended Spindle Motor Power	5.5
Distance from Spindle Nose to Workbench Surface	100-600
Distance from Spindle Centerline to Column Guide Rail Surface	410
Three - Axis Rapid Movement ( X/Y/Z )	36/36/30
Cutting Feed Speed	1-4000
Three - Axis Lead Screw Pitch ( X/Y/Z )	R3212
Recommended Three - Axis Motor Torque ( X/Y/Z )	15
Positioning Accuracy and Repeatability Accuracy	≤0.01 and ≤0.005
Operating Air Pressure	0.6
Machine Tool Weight (Approx.)
Optical machine external dimensions

II. Main components of the machine tool

Serial number	Configuration	Specification details	Manufacturer	Place of origin
1	Special bearings for three-axis lead screws (front 2 rear 2 )			Made in China
2	Three-axis ball screws ( C4 grade)	XY: R3212 Z: R3212		Made in China
3	Three-axis guide rails	X/Y/Z : Linear guide rails		HIWIN
4	Spindle unit	Belt-driven BT40*120 - 8000rpm	Dan Quan	Taiwan
5	Tool changing cylinder	3T		Taiwan
6	Three-axis telescopic covers			Made in China
7	Damping automatic lubrication system	DZ - 1		Made in China
8	Three-axis locking nuts	YSF M24*1.5P	Yingxi	Taiwan
9	Three-axis couplings	3 pieces
10	Anchor bolt sockets + Anchor bolts + Nuts	6 sets		Made in China
11	Tool magazine	BT40 - 16T Tool magazine		Taiwan

Product Tags: Machining center 640 , Small machining center , 640 CNC machining center
