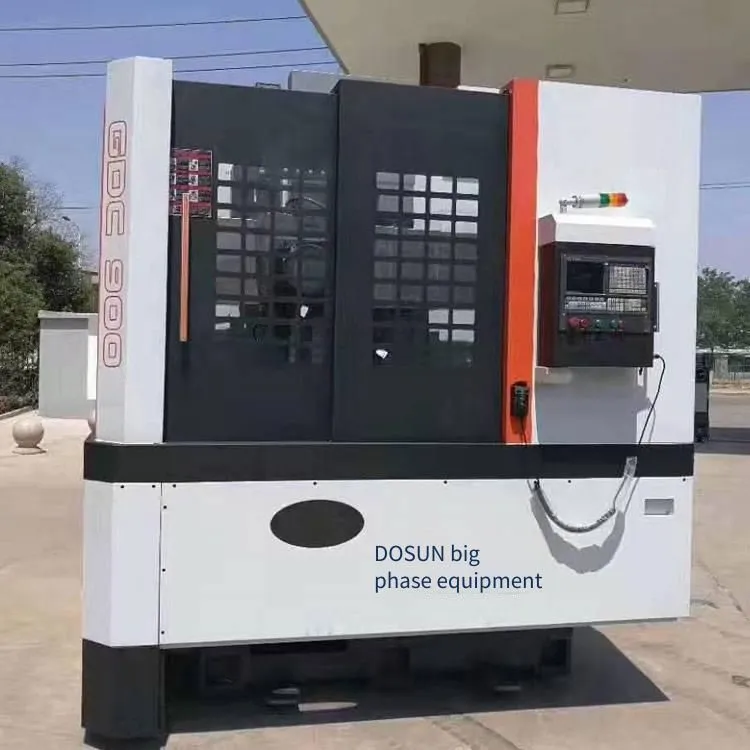

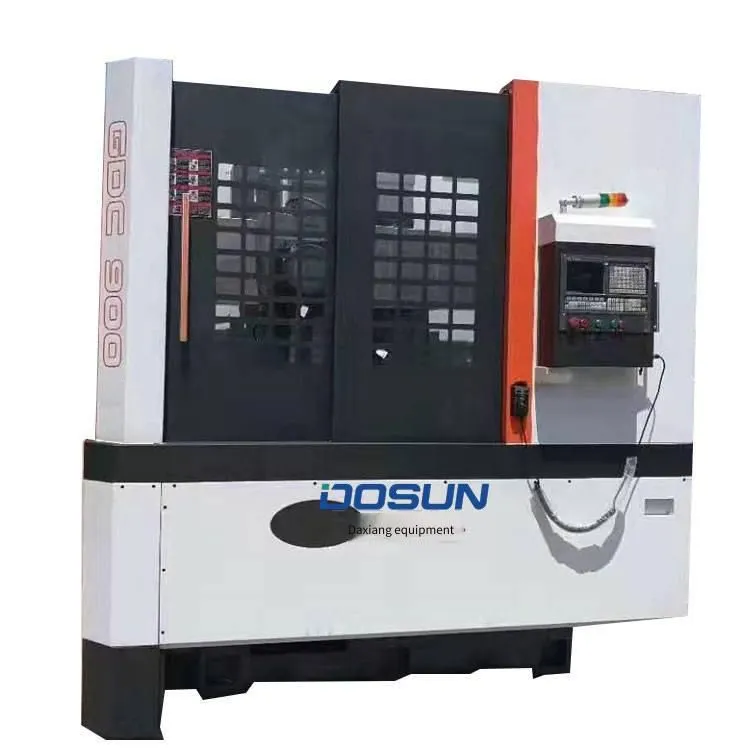

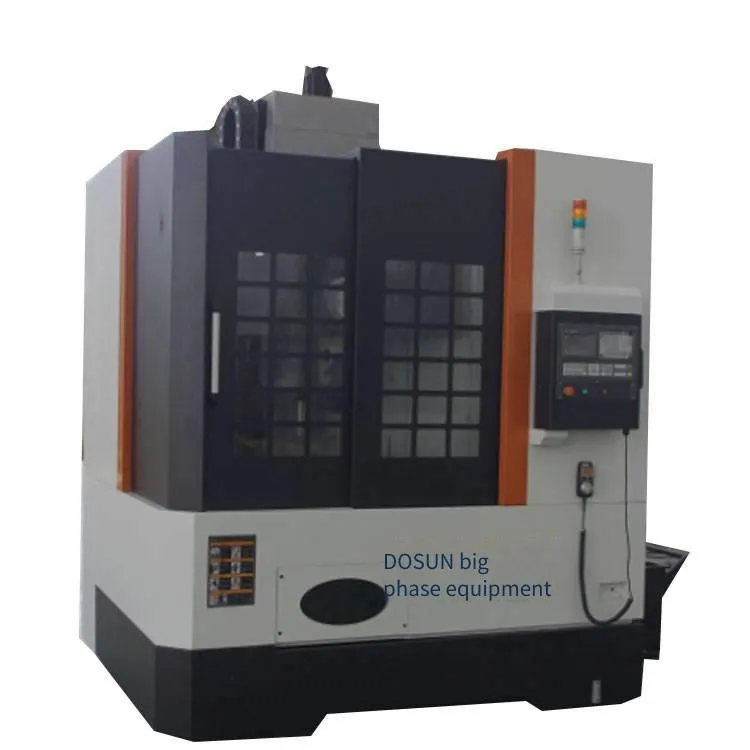

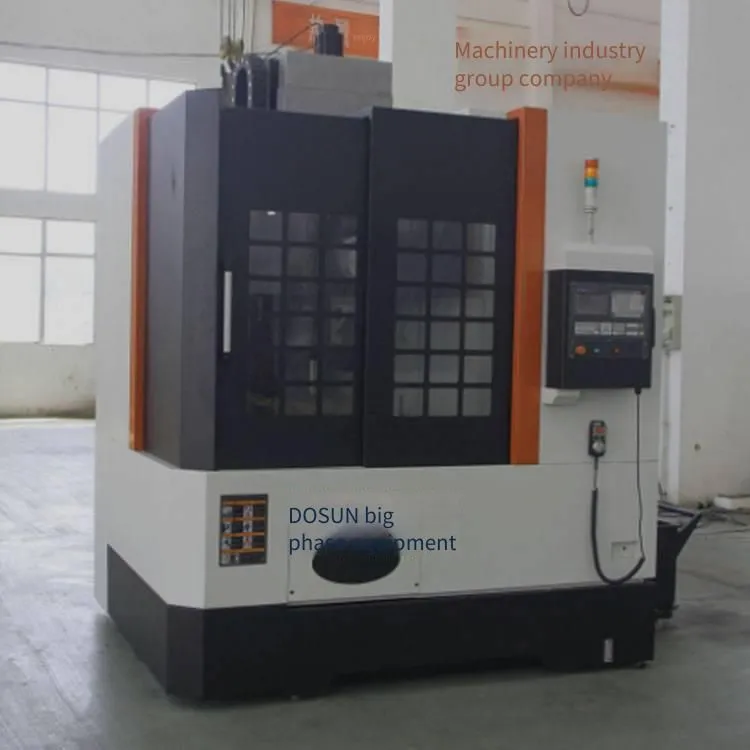

The GDC900 CNC vertical lathe is an automated CNC machining tool used to process the inner and outer cylindrical surfaces, conical surfaces, end faces, threads, grooves and chamfers of parts. This machine tool is particularly suitable for the processing of parts such as automotive wheel drums and discs.
1. Vertical guide rail structure. The column, base and slide are all made of high-grade gray cast iron. The column and the guide rails of the slide are both induction hardened, and the moving surface of the guide rail is treated with plastic coating to ensure the stability and accuracy retention of the machine tool during long-term use.
2. The spindle of the machine tool is equipped with a spindle servo motor, suitable for heavy-duty cutting; at the same time, it is also suitable for semi-finishing and finishing of parts.
3. The X/Z axis feed is automatically controlled by a servo motor. The Z axis uses a balance weight, with a reliable structure and low failure rate.
4. The X/Z axes of the machine tool use domestic precision ball screws and special bearings for screws to meet the requirements of high-precision and high-rigidity cutting.
5. The machine tool is lubricated by an electric lubricating oil pump.
6. The tool post of the machine tool adopts a row tool form, with accurate precision, high efficiency, low price and no maintenance cost.
7. Special tooling or electric tool post, hydraulic chuck, cooling pump, chip conveyor and chip flushing device can be configured according to user requirements.
GDC900 Introduction to CNC Vertical Lathe
I. Machine Tool Usage and Features
The GDC series of machine tools are automated CNC machining tools used to process the inner and outer cylindrical surfaces, conical surfaces, end faces, threads, grooves and chamfers of parts. This machine tool is particularly suitable for the processing of parts such as automotive wheel drums and discs.
1. Vertical guide rail structure. The column, base and slide are all made of high-grade gray cast iron. The column and the guide rails of the slide are both induction hardened, and the moving surface of the guide rail is treated with plastic coating to ensure the stability and accuracy retention of the machine tool during long-term use.
2. The spindle of the machine tool is equipped with a spindle servo motor, suitable for heavy-duty cutting; at the same time, it is also suitable for semi-finishing and finishing of parts.
3. X/Z axis feed is automatically controlled by a servo motor. Z axis uses a balance weight, with a reliable structure and low failure rate.
4. The X/Z axes of the machine tool use domestic precision ball screws and special bearings for screws to meet the requirements of high-precision and high-rigidity cutting.
5.
6. The tool post of the machine tool adopts a row tool form, with accurate precision, high efficiency, low price and no maintenance cost.
7. Special tooling, electric tool post, hydraulic chuck, cooling pump, chip conveyor and chip flushing device can be configured according to user requirements.
II. GDC 900 CNC Vertical Lathe Main Technical Parameters
Main Parameters |
GD-C900 |
Machine tool turning diameter mm |
900 |
Cutting diameter |
900 |
Workbench diameter mm |
600 |
Spindle speed levels |
80 - 500 Stepless |
Cutting feed speed mm/min |
0.1~1000 |
Vertical moving distance of the tool post mm |
650 |
Horizontal moving distance of the tool post mm |
520 |
Longitudinal rapid traverse speed mm/min |
4000 |
Transverse rapid traverse speed mm/min |
6000 |
Tool post form |
Row tool |
Tool bar cross-section mmxmm |
32x32 |
Machine tool repeated positioning accuracy mm |
0.012 |
Positioning accuracy mm |
X/Z0.015/0.02 |
Main motor power Kw |
15 |
Overall dimensions |
2450X2150X2950 |
III. GDC 900 CNC Vertical Lathe Inspection Standards
This machine tool refers to the current national standards of the machine tool industry and is produced in accordance with the relevant standards of Jiangsu Daxiang Intelligent Equipment Co., Ltd.
Attached Machine tool accuracy inspection form
Serial number |
Inspection item |
Tolerance mm |
Actual measurement |
Remarks |
|
1 |
Radial runout of the spindle |
0.012 |
|||
2 |
End face runout of the spindle |
0.012 |
|||
3 |
Parallelism of the slide movement to the spindle |
Horizontal direction |
0.03 |
400 Length direction |
|
Vertical direction |
0.03 |
||||
4 |
Flatness of the rotary table surface |
0.03 (Only concave is allowed) |
φ 400 Diameter disc |
||
