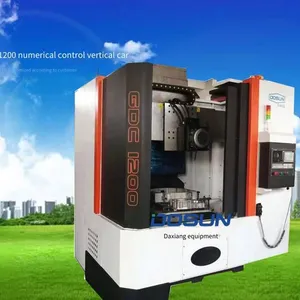

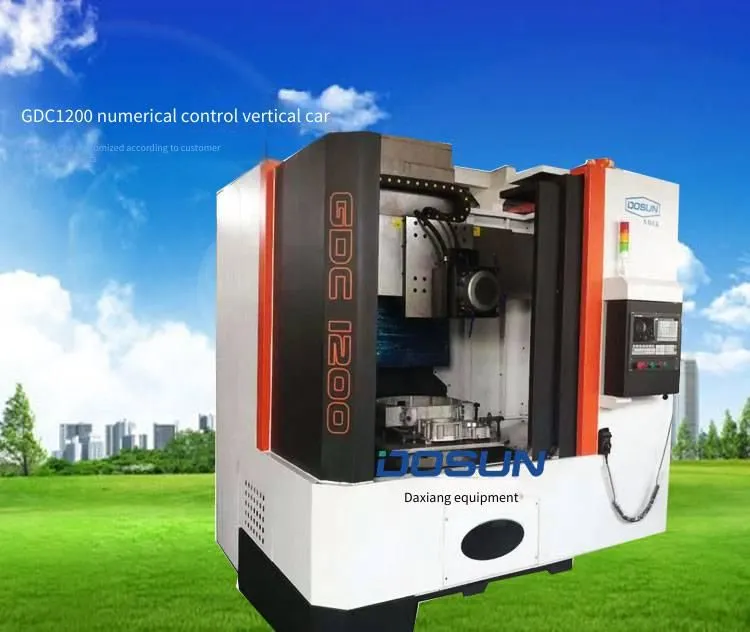

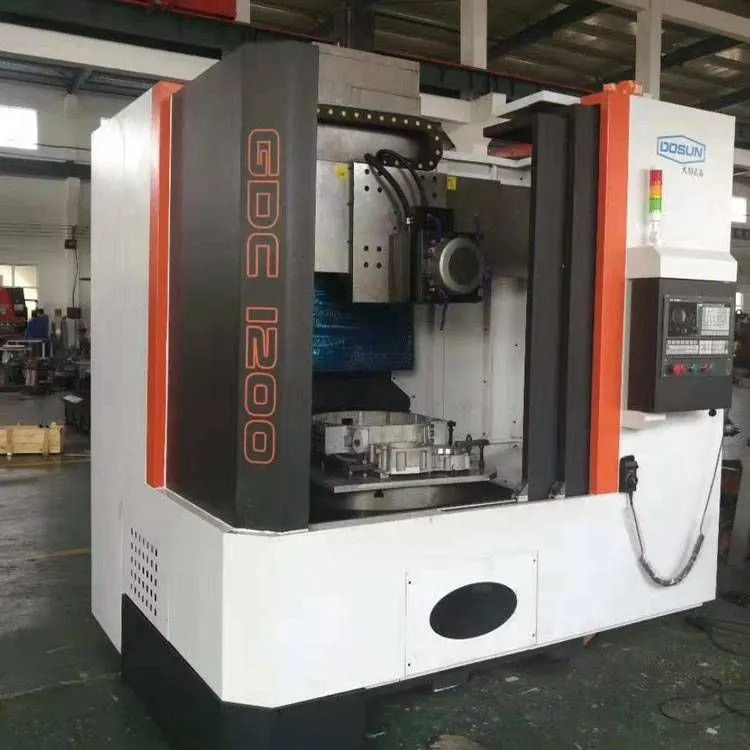

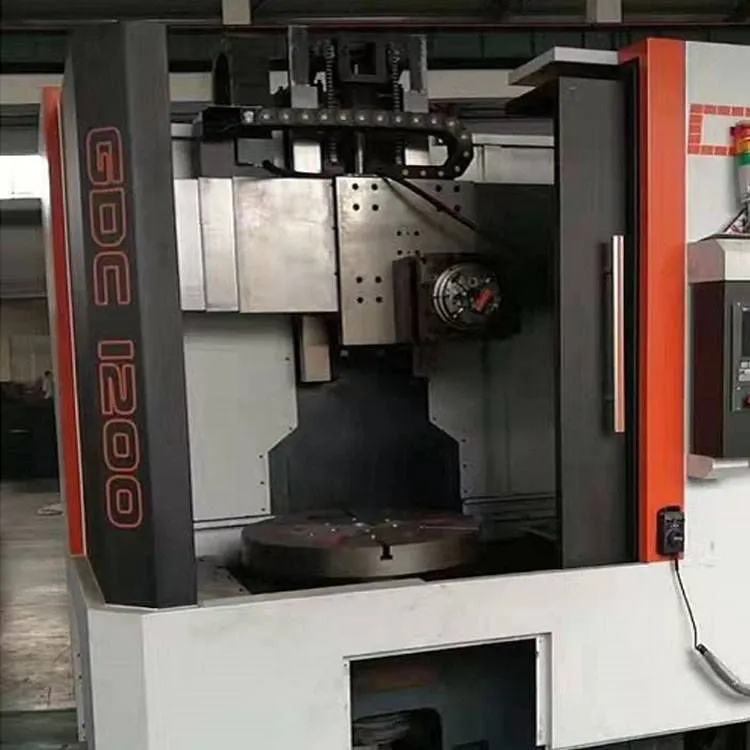

Introduction to GDC-1200 CNC Vertical Lathe
I. Machine Tool Usage and Features
The GDC series machine tools are automated CNC machining tools used for machining the internal and external cylindrical surfaces, conical surfaces, end faces, threads, grooves, and chamfers of parts. This machine tool is especially suitable for machining parts such as automotive wheel drums and discs.
1. Vertical guide rail structure. The column, base, and slide carriage are all made of high-grade gray cast iron. The guide rails of the column and slide carriage are both subjected to high-frequency quenching, and the moving surfaces of the guide rails are treated with plastic coating to ensure the long-term stability and accuracy retention of the machine tool.
2. The machine tool spindle is equipped with a spindle servo motor, suitable for heavy-duty cutting and also suitable for semi-finishing and finishing of parts.
3. The feed of the X/Z axes is automatically controlled by servo motors. The Z-axis is equipped with a balance weight, with a reliable structure and low failure rate.
4. The X/Z axes of the machine tool use domestic precision ball screws and special bearings for screws, meeting the requirements of high-precision and high-rigidity cutting.
5. The machine tool is lubricated by an electric lubricating oil pump.
6. The tool rest of the machine tool adopts a row tool form, with accurate accuracy, high efficiency, low price, and no maintenance costs.
7. Special tooling, electric tool rest, hydraulic chuck, cooling pump, chip conveyor, and chip flushing device can be configured according to user requirements.
II. Main Technical Parameters of the Machine Tool
Main Parameters GDC-1200
Machine tool swing diameter mm 1200
Cutting diameter 1000
Workbench diameter mm 800
Spindle speed steps (levels) 80 - 350 stepless
Cutting feed speed mm/min 0.1~1000
Vertical movement distance of the tool rest mm 700
Horizontal movement distance of the tool rest mm 680
Longitudinal rapid traverse speed mm/min 4000
Transverse rapid traverse speed mm/min 6000
Tool rest form Electric tool rest
Tool bar cross-section mmxmm 40x40
Machine tool repeat positioning accuracy mm 0.015
Positioning accuracy mm X/Z 0.018/0.02
Main motor power Kw
Overall dimensions 2700x2300x3200
III. Inspection standards
This machine tool is produced in accordance with the relevant standards of Jiangsu Daxiang Intelligent Equipment Co., Ltd. with reference to the current national standards of the machine tool industry.
Attachment: Machine tool accuracy inspection form
Serial number Inspection item Tolerance mm Actual measurement Remarks
1 Radial runout of the spindle 0.012
2 End face runout of the spindle 0.012
3 Parallelism of the slide movement to the spindle Horizontal direction 0.03 In the length direction of 400
Vertical direction 0.03
4 Flatness of the rotary table surface 0.03 (Only concave is allowed) Disc with a diameter of φ400
