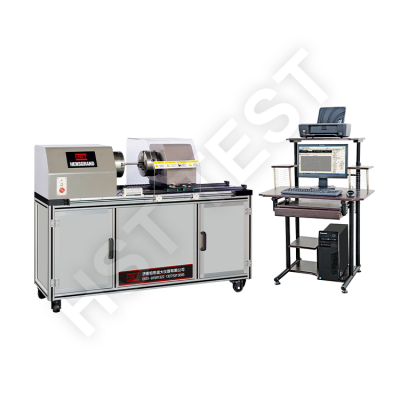

HST Multifunctional Astm A938 Metallic Wire Material Torsion Testing Machine Torque Tester
US$ 62281.31
1 Set
US$ 59482.15
≥2 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
/
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NDW-2000 Electronic Cable Torsion Strength Testing Machine 2000N.M Wire Twist TesterUS$ 69979.00MOQ: 1 Set -
ISO-Certified ISO 7800/9649 Torsion Testing Equipment for Metal Wires | Bidirectional RotationUS$ 17494.75 - 20293.91MOQ: 1 Set
-
ISO 7800/9649 Automatic Metal Wire Twist Testing Machine | Surface Defect Detection 3-10mmUS$ 17494.75 - 20293.91MOQ: 1 Set
-
HST-HEZ Metal Wire Torsion Tester for 3-10mm Wires | ISO 7800/9649 ComplianceUS$ 17494.75 - 20293.91MOQ: 1 Set
-
HST ASTM F543 ±5N.m Medical Bone Screw Axial Tension and Torsion Testing MachineUS$ 150454.85 - 153953.80MOQ: 1 Set
Accuracy
/
brand name
HST
place of origin
Shandong
customized support
OEM, ODM, OBM
power
/
Protection Class
/
Voltage
220 V
warranty
1 Year
Product name
Material 500nm torsion testing machine
Max Dynamic Test Torque N/M
500
Test Level:
1 Class
Torque Force Value Relative Error:
≤±1%
Torque Speed Relative Error:
≤±1%
Torque Angle Measuring Relative Errors:
≤±1%
Force Resolution:
1/5000
Test Range:
2%-100%FS
Two Chuck Maximum Distance
300mm
Weight:
340 KG
Product Description
Application:
Torque test machines measure the torsional strength, stiffness and stress-strain properties of materials and products which are the ideal solution for biomedical, automotive, and aerospace applications. Torsional testing machines are used to simulate real life service conditions and to check product quality for products such as drill tool bit tips and medical devices, screws and other fasteners, wire, and much more. Get started by deciding if you need a static system or a dynamic fatigue system.
Model | HST-N100W HST-N200W | HST-N500W | HST-N1000W | HST-N2000W | HST-N300W | HST-N5000W | |||||||
Measuring range (Nm) | 100 | 200 | 500 | 1000 | 2000 | 3000 | 5000 | ||||||
Torque Resolution (Nm) | 0.01 | 0.02 | 0.05 | 0.1 | 0.2 | 0.5 | 0.5 | ||||||
Clearance between grips(mm) | 500 | ||||||||||||
Torque resolution | 1/500000 | ||||||||||||
Relative error of torque | ±0.5% | ||||||||||||
Torque effective test range(F ·S) | 0.4%~100%F ·S | ||||||||||||
Resolution of torsion angle | 0.002° | ||||||||||||
Test accuracy of torsion angle | ≤±0.5% | ||||||||||||
Torsion speed | 0.01~1500°/min, Can be customized | ||||||||||||
Relative error of torsion angle | ±0.5% | ||||||||||||
Protection function | the tester has overload protection function | ||||||||||||
Twist appendage | three jaw chuck type, two - way roof tightness | ||||||||||||
