Home > Instruments & Meters > Test Instrument > Test Machine > ISO16047 EN14399-2N M16-M39 Computerized Bolt Nut Fasteners Torsion Torque Testing Machine

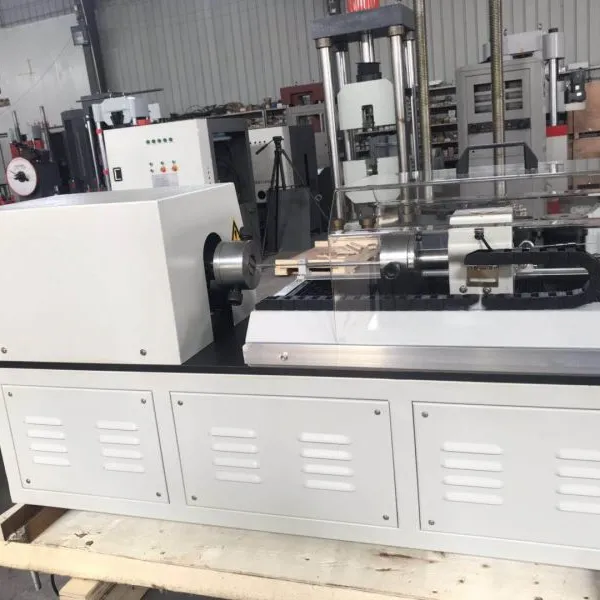

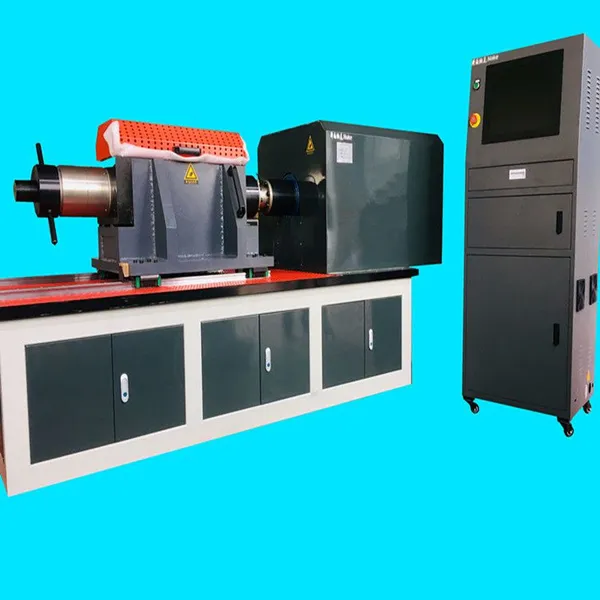

ISO16047 EN14399-2N M16-M39 Computerized Bolt Nut Fasteners Torsion Torque Testing Machine
US$ 244926.50
≥1 Set
Key Specifications
Get Latest Price
brand name:
HST OR OEM
place of origin:
Shandong, China
customized support:
OEM, ODM, OBM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NDW 100NM 200NM 5000NM 20000NM Computerized Controlled Bolt Nut Torsion Tester Torsion Testing MachineUS$ 17494.75MOQ: 1 Set -
EZ Series Metal Wire Torsion Testing MachineNegotiableMOQ: 1
-
EZ Series Model Digital Display Torsion Test Equipment For Wire Torsion TestNegotiableMOQ: 1
-
NDS-1000N/m 500N/m Electronic Digital Display Material Torsion Test EquipmentNegotiableMOQ: 1
-
NDS Series Digital Display Material Torsion Testing MachineNegotiableMOQ: 1
brand name
HST OR OEM
place of origin
Shandong, China
customized support
OEM, ODM, OBM
power
Hydraulic
warranty
1 YEAR
model number
NDW-100
Load Capacity(N/M)
100-5000
Torque Test Range(F S)
2%-100%F S
Machine level
1 Class
Torque display resolution
1 20000
Torsional Angle Test Range(F S)
2%-100%
Torsional Angle value relative error (%)
Better than ±0.5
Power Supply
220V±10%, 50Hz
intersection angle display resolution(°)
0.01
Max. torsion Angle
99999°
Chuck spacing effectively (mm)
600
Products Description
Application:
HSBW series bolt torsion testing machine is mainly used to check the material performance of bolts nuts, double-screw bolts etc.,fastener and connection pairs of various grade 12.9, 10.9, 9.8, 8.8. Can measure the preload, fastening axial force F, yield fastening axial force, yield clamp force, limit clamp force, safety load, breaking load, torque T, angle etc.,
Fasteners include: Friction type high strength bolt, bearing type high strength bolt, tensile bolt with high strength, torsional
shear type high strength bolt, High-strength big hex bolt, stud bolt, coach bolt, friction type high strength prestressed bolt
connect sets, bearing type high strength prestressed bolt connect sets.
Related standard:
ISO 16047: Fasteners -- Torque/clamp force testing
EN 14399-2: High-strength structural bolting assemblies for preloading.
DIN 2510-5: Bolted connections with reduced shank hexagon nuts.
DIN 2510-6: Cap nuts for use with bolts with waisted shank.
ASTM A320 / A320M: Standard Specification for Alloy-Steel and Stainless Steel Bolting for Low-Temperature Service; ASTM A325:Standard Specification for Structural Bolts, Steel, Heat Treated, 120/105 ksi Minimum Tensile Strength;
Fasteners include: Friction type high strength bolt, bearing type high strength bolt, tensile bolt with high strength, torsional
shear type high strength bolt, High-strength big hex bolt, stud bolt, coach bolt, friction type high strength prestressed bolt
connect sets, bearing type high strength prestressed bolt connect sets.
Related standard:
ISO 16047: Fasteners -- Torque/clamp force testing
EN 14399-2: High-strength structural bolting assemblies for preloading.
DIN 2510-5: Bolted connections with reduced shank hexagon nuts.
DIN 2510-6: Cap nuts for use with bolts with waisted shank.
ASTM A320 / A320M: Standard Specification for Alloy-Steel and Stainless Steel Bolting for Low-Temperature Service; ASTM A325:Standard Specification for Structural Bolts, Steel, Heat Treated, 120/105 ksi Minimum Tensile Strength;
ASTM A354:Standard Specification for Quenched and Tempered Alloy Steel Bolts, Studs, and Other Externally Threaded
Main technical specification
Model |
HSBW |
Max. torque |
1000N.m, 2000N.m, 3000N.m,5000N.m,1000N.m,20000N.m |
Torque measuring range |
2%---100% F.S |
Torque indication accuracy |
士1% |
Torque resolution |
土1/20000o |
Max. bolt force |
100OKN |
Force accuracy |
士1% |
Effective test space |
0～650mm (stepless adjustable) |
Height of main shaft |
≥100mm |
Loading speed |
0.05 ~ 2Rpm土0.20 |
Angle accuracy |
土0.20 |
Power supply |
50Hz,220V，4Kw |
