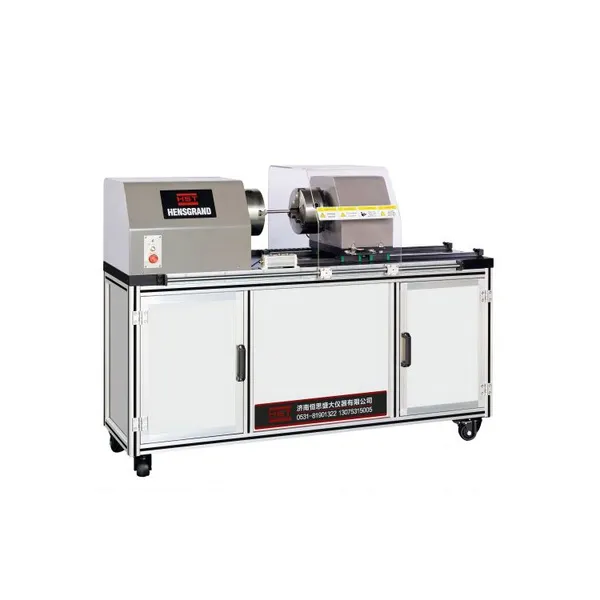

HST NDW-500 500Nm Computer Controlled Material Torsion Testing Machine/Tester
ALI: cn1510988092 SKYPE: hstbetty009 Phone/Whatsapp/Wechat:+86-15866781190
1. Application:
Wire torsion testing machine applies to determine the ability of diameter(or feature size) of 0.1-20.0 mm wire for bearing plastic deformation in one way or two way reverse, display the surface and internal defects of the wire .Widely used in aerospace, metal material processing, tire manufacturing industries, and institutions of higher learning, scientific research institutions, technical supervision, quality inspection station and other departments.
2. Standard :
GB/T2611-2007 General Requirements for Testing Machines
GB/T 239-1999 Metal wire twisting test method
ISO 7800:1984 Metal wire one-way torsion test method
ISO 9649:1990 Metal wire two-way torsion test method
3. Technical parameter:
|
Model |
EZ-3 |
EZ-10 |
|
Work Method |
Auto-loading |
|
|
Max. Clamp metal wire diameter |
0.2-3.0 mm |
1-10 mm |
|
Parallelism of the full moving guide |
≤0.2 |
|
|
Max. distance of two chucks |
320 mm |
520 mm |
|
Rotation speed adjusting range |
0-180 r/min |
0-60 r/min |
|
Velocity error |
<±1% |
|
|
Min. number of circle values |
0.1 |
|
|
Two chuck alignment |
<0.4 mm |
|
|
Jaw hardness |
55-65 HRC |
|
|
Farmar error |
±0.5% |
|
|
Work Noise |
≤70 dB |
|
|
Min. revolutions reading values |
1 r |
|
|
Power Supply |
AC 220V±10%,50Hz |
|
