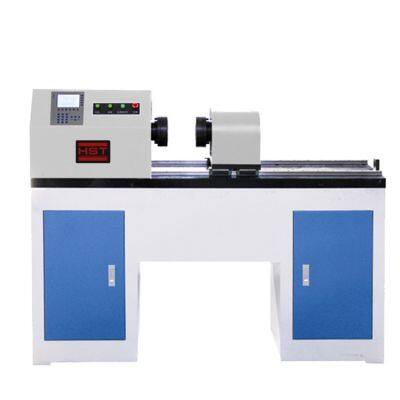

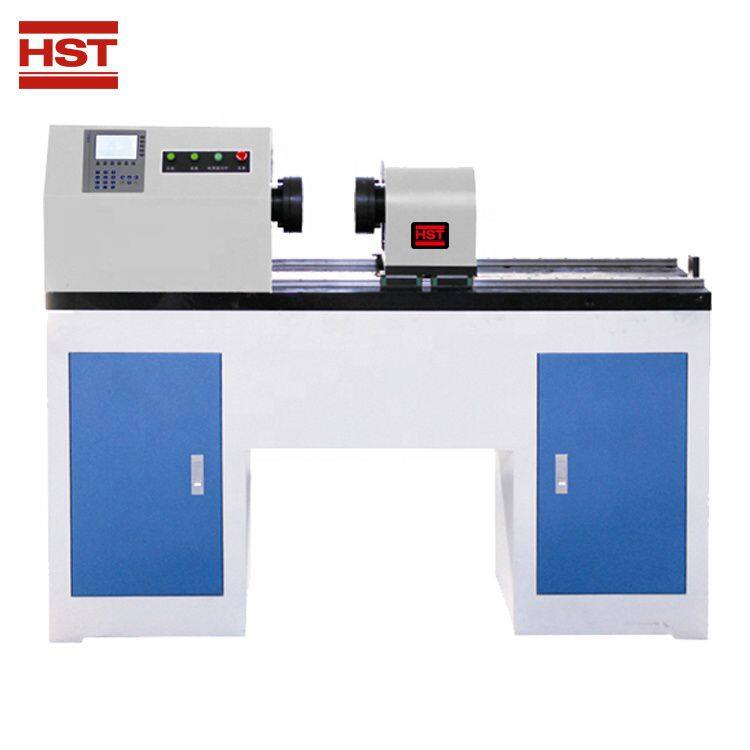

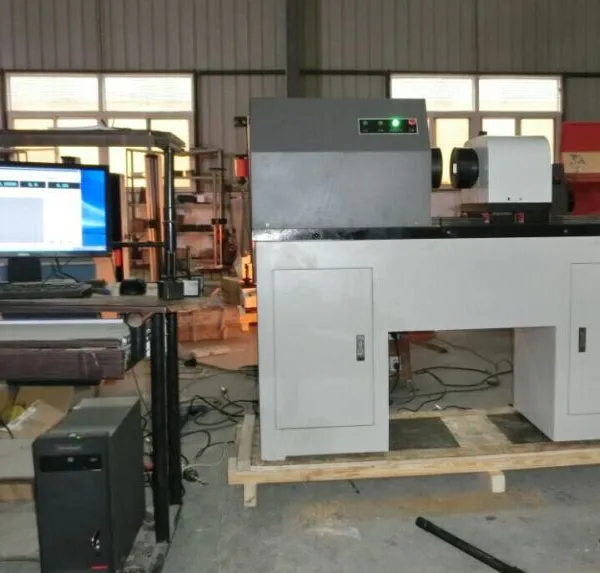

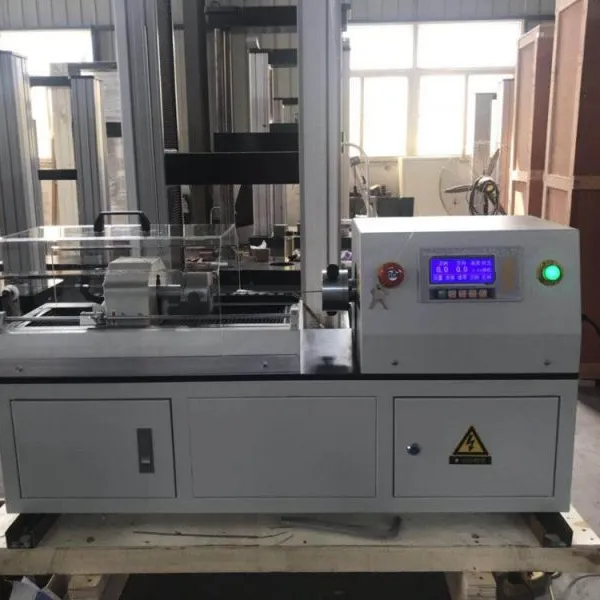

NDS-500 High Quality Metal Torsion Testing Machine Price
1.Application:

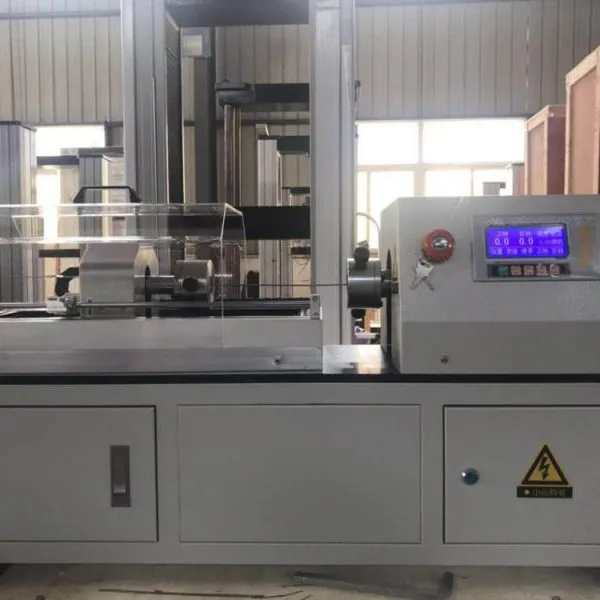

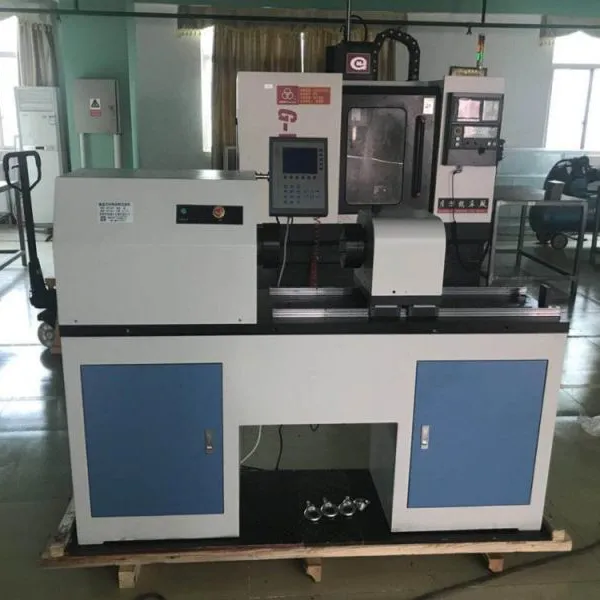

Digital display material torsion testing machine is designed for conducting torsion and twist tests on various metal wires, tubes and steel materials. Torque measurement is by torque transducer while angle of twist is measured by photoelectrical coder.Torque range can be adjusted and torque is applied to specimen by servo motor and cycloid speed reducer.
This tester is mainly applied in the research department, all kinds of institutions and industrial and mining enterprises material experiment of various materials used for measuring the mechanical properties by torsion.
2.Technical Parameter:
|
Model |
NDS-500 |
NDS-1000 |
NDS-2000 |
NDS-3000 |
NDS-5000 |
|
Max Dynamic Test Torque |
500 N/M |
1000 N/M |
2000 N/M |
3000 N/M |
5000 N/M |
|
Test Level |
1 Class |
||||
|
Test Range |
2%-100%FS |
||||
|
Torque Force Value Relative Error |
≤±1% |
||||
|
Torque Speed Relative Error |
≤±1% |
||||
|
Force Resolution |
1/50000 |
||||
|
Torque Angle Measuring Relative Errors |
≤±1% |
||||
|
Torque Angle Resolution(°) |
0.05-999.9°/min |
||||
|
Two Chuck Maximum Distance |
300mm |
550mm |
600mm |
650mm |
|
|
Dimension (mm) |
1200*390*1169 |
1420*390*1169 |
1470*390*1200 |
1924*690*1512 |
|
|
Weight (KG) |
340 |
580 |
860 |
2150 |
|
|
Power Supply |
0.5kW/ AC220V±10% |
1kW/ AC220V±10% |
1.5kW/ AC220V±10% |
5kW/ AC220V±10% |
|
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,16 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 7-15days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional aftersale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
