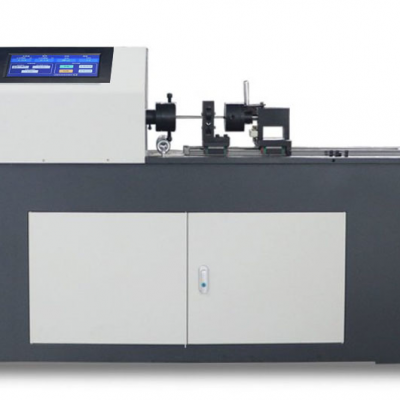

Help CenterHST-HEZ-W10 1.0-10.0mm Touch Screen Display Computer Control Metal Wire Torsion Testing Machine
Related Products
-
HST NDW-500 500Nm Computer Controlled Material Torsion Testing Machine/TesterUS$ 38488.45 - 39888.03MOQ: 1 Set -
HST EZ-10 10mm Metal Materials WIRE Torsion Testing MachineUS$ 23792.86 - 24492.65MOQ: 1 Set
-
New !!! NJS Series Manual Digital Display Torsion Test Apparatus/Torsion Testing MachineUS$ 9790.07 - 13988.81MOQ: 1 Set
-
NDS High Quality Material Torsion Testing Machine PriceUS$ 18887.34 - 27984.61MOQ: 1 Set
-
ISO16047 EN14399-2N M16-M39 Computerized Bolt Nut Fasteners Torsion Torque Testing MachineUS$ 244926.50MOQ: 1 Set
NDS Series 100N/m- 10000N/m Digital Display Material Torsion Testing Machine
Phone/whatsapp:+86-15866781190 Skype: hstbetty009

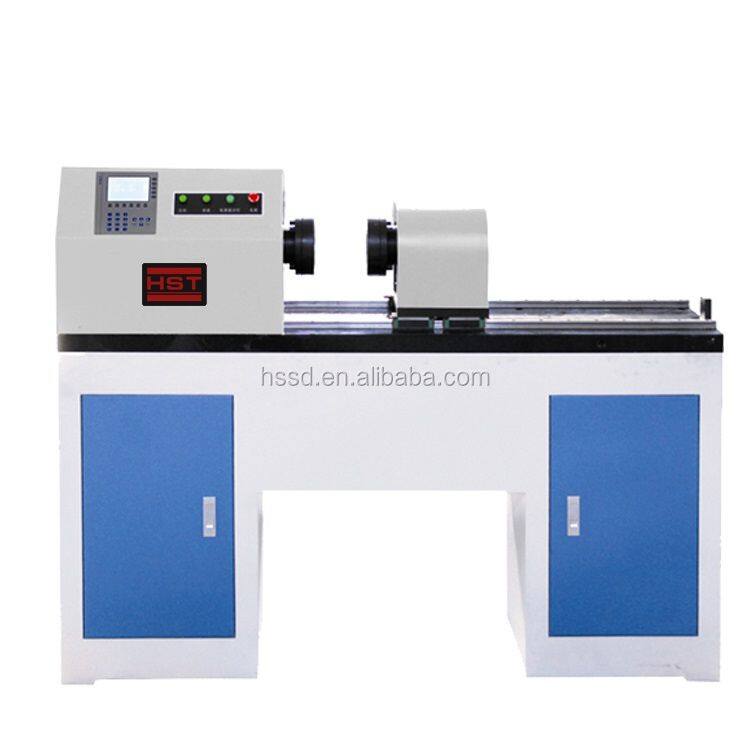

NDS Series 100N/m- 10000N/m Digital Display Material Torsion Testing Machine
1. Introduction
This machine is designed for conducting torsion and twist tests on various metal wires, tubes and steel materials. Torque measurement is by torque transducer while angle of twist is measured by photoelectrical coder. Torque range can be adjusted and torque is applied to specimen by servo motor and cycloid speed reducer.
This machine is mainly applied in the research department, all kinds of institutions and industrial and mining enterprises material experiment of various materials used for measuring the mechanical properties by torsion.
3. Technical parameter :
|
Model |
NDS -100 |
NDS -200 |
NDS -500 |
NDS -1000 |
NDS -2000 |
NDS -3000 |
NDS -5000 |
NDS -10000 |
|
Max. Torque (N/m) |
100 |
200 |
500 |
1000 |
2000 |
3000 |
5000 |
10000 |
|
Machine Level |
1 Class |
|||||||
|
Control Method |
Single Chip Microcomputer Control |
|||||||
|
Torque Measurement Range |
2%-100%FS |
|||||||
|
Test Direction Of Rotation |
Two-way |
|||||||
|
Torque Display Resolution |
1/5000 |
|||||||
|
The Accuracy Of Torque Values |
≤±1% |
|||||||
|
The Accuracy Of Angle Values |
≤±1% |
|||||||
|
Angle Display Resolution |
0.01° |
|||||||
|
Torsional Angular Rate Control Range |
0.05-800°/min |
|||||||
|
Max. Torsion Angel |
99999° |
|||||||
|
Max. Distance Between Two Collets |
600mm |
|||||||
3. Configuration
3.1 Desktop high strength wire torsion host--- 1 Set
3.1.1 High precision arc synchronous gear system --- 1 Set
3.1.2 Efficient cycloidal reducer --- 1 Set
3.1.3 High precision Taiwan ABBA linear bearings --- 1 Sets
3.1.4 Reverse the special auxiliary equipment
3.2 Measurement and Control Systems:
2.1 Photoelectric revolving speed measuring device ---- 1 Set ;
2.2 DC speed governing drive ---- 1 Set ;
2.3 DC variable speed motors---- 1 Set ;
3.2.4 High precision torsion sensor --- 1 Pc
