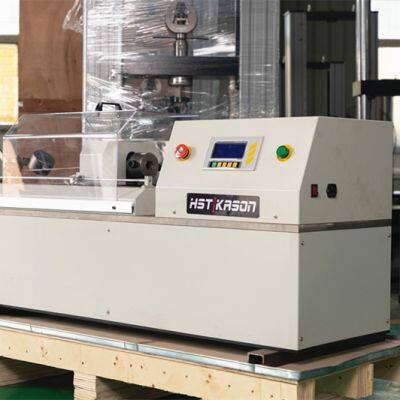

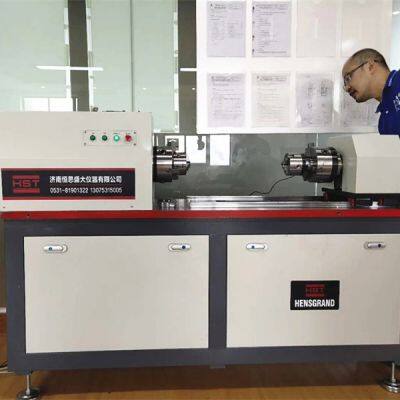

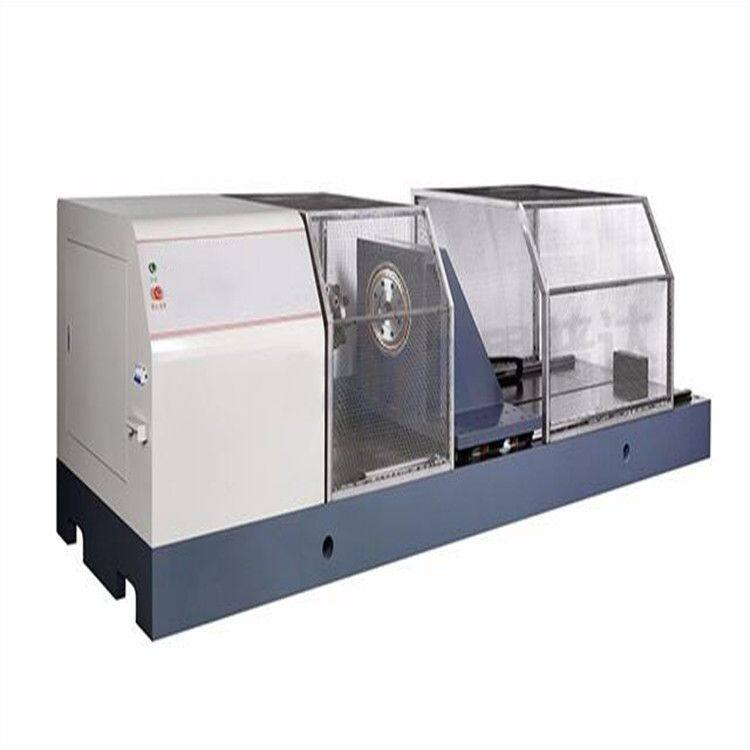

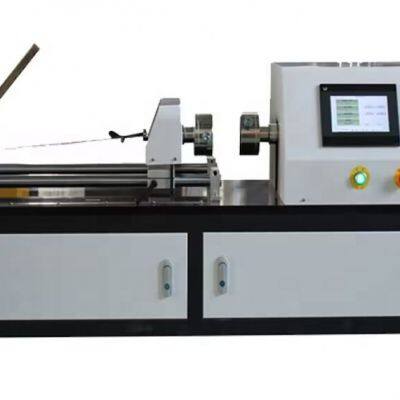

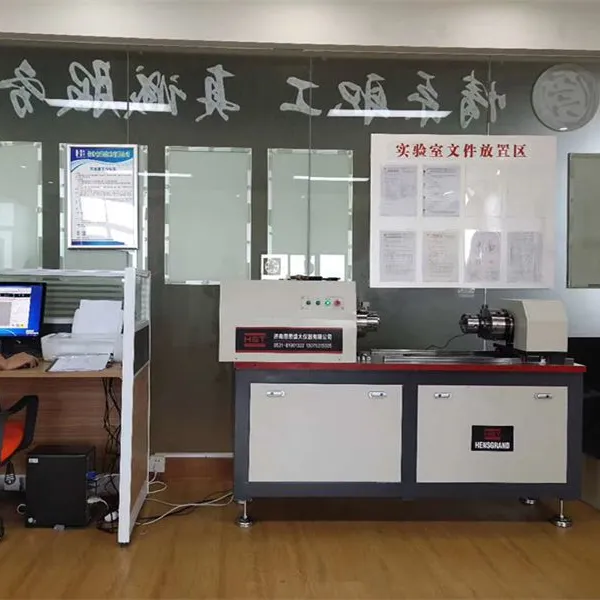

HST-BW1500F M33-M56 Computer Control High Strength Bolt Testing Machine
ALI: cn1510988092 Phone/whatsapp:+86-15866781190 Skype: hstbetty009
1. Scope of application
This test system is designed according to the test requirements of users. It is mainly used for static torsion test of high-strength bolts. It meets the requirements of GB1231-2006 "Technical conditions for high-strength large hexagonal head bolts, large hexagonal nuts and washers for steel structures". The test system is mainly composed of a host, a test mechanism, a precision loading mechanism, a precision system, a control data acquisition system, a computer and its test software, and other necessary loading brackets and accessories. It is an ideal high-performance test equipment for factories, mines, quality inspection units, scientific research units, and colleges and universities. It is suitable for torsion-tensile mechanical performance testing of high-strength bolts and large hexagonal head bolts. It can automatically display the torque, angle, and axial force of bolt and nut pre-tightening, and store and output data. Technical indicators such as torque coefficient and the relationship between torque and torsion angle, and curves such as torque-axial force-torsion angle are available.
Users can also provide relevant technical standards, such as ISO, ASTM, DIN, and JIS, and realize the control of test methods and related data collection and processing according to the standards provided by users.
2. Main technical parameters and working conditions
2.1 Main machine part
2.1.1 Maximum torque: 10000Nm
2.1.2 Effective torque measurement range: 1000~10000Nm
2.1.3 Axial force measurement range: 200-1500kN
2.1.4 Output speed: 1-360°/min
2.1.5 Test machine torque tolerance and repeatability error: 1%
2.2 Axial loading part
2.2.1 Maximum axial bolt stress: 1500kN
2.2.2 Effective bolt stress measurement range: 200-1500 kN
2.2.3 Test machine axial force tolerance and repeatability error: 1%
2.3 Torsion angle part
2.3.1 Torsion angle measurement range: (0.1~9999)°
2.3.2 Rotation angle measurement value tolerance: 1%
2.3.3 Test angle accuracy ≤±0.1°
2.4 The tolerance of elongation measurement is: ±1/100mm.
2.5 Bolt specification: M33-M56
Length range: 200-500mm
2.6 Power supply voltage: AC 380/220 50Hz
3. Structure and characteristics
1. Main configuration:
|
No. |
Item |
QTY |
|
|
1 |
Mainframe |
Workbench, frame |
1 Set |
|
Torsion test device |
1 Set |
||
|
Axial bolt stress test device |
1 Set |
||
|
Bolt axial overall deformation device |
1 Set |
||
|
2 |
Test fixture |
1 Set |
|
|
3 |
Precision loading speed control system |
1 Set |
|
|
4 |
High-precision symmetrical torque sensor |
1 Piece |
|
|
5 |
High-precision bolt stress sensor |
1 Piece |
|
|
6 |
High-precision deformation sensor |
1 Piece |
|
|
7 |
High-precision angle sensor |
1 Piece |
|
|
8 |
Low-speed high-torque reducer |
1 Set |
|
|
9 |
Precision control system |
1 Set |
|
|
10 |
Electrical control and data acquisition system |
1 Set |
|
|
11 |
Software |
1 Set |
|
|
12 |
Printer |
1 Set |
|
|
13 |
Linear guide |
1 Set |
|
|
14 |
Bolt torsion attachment |
1 Set |
|
|
15 |
Protective cover |
1 Set |
|
|
16 |
Random information |
1 Set |
|
|
17 |
Special accessories |
3 Pairs |
|
