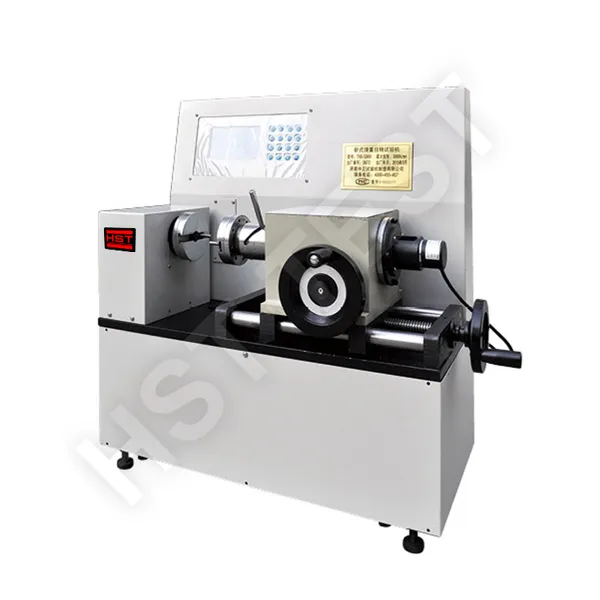

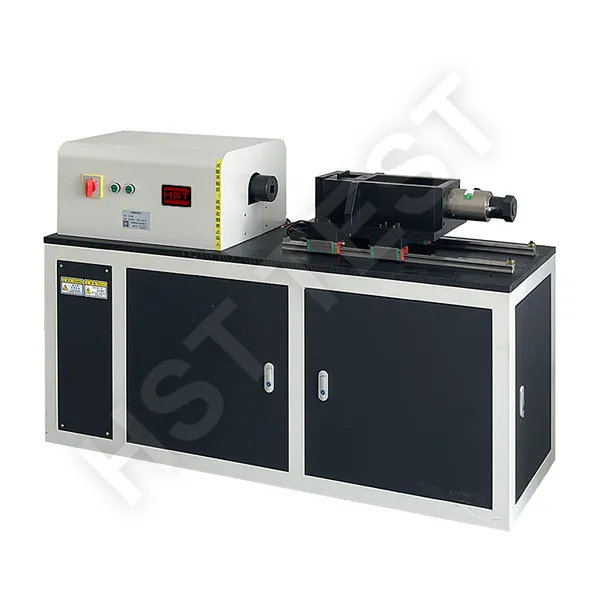

NDW-2000 Electronic Cable Torsion Strength Testing Machine 2000N.M Wire Twist Tester

US$ 69979.00 ≥1 Set

Key Specifications

Type:

torsion testing machine

Weight:

340 KG

brand name:

HST

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

brand name HST

place of origin Shandong, China

Application torsion testingmachine

customized support OEM, ODM, OBM

power 1kw, Electronic

Protection Class IP55

Voltage 220 V

warranty 1 YEAR

Product Name wire Twist Testing Machine cable Torsion strength testing machine

Max Dynamic Test Torque N/M 5000

Torque Force Value Relative Error ≤±1%

Torque Speed Relative Error ≤±1%

Torque Angle Measuring Relative Errors ≤±1%

Force Resolution 1/50000

Test Range 2%-100%FS

Two Chuck Maximum Distance 300mm

NDW-500 wire Twist Testing Machine cable Torsion strength testing machine

Product Description

1. Application:

This series materials torsion testing machine is used for torsion test of metal materials, nonmetallic materials, composite materials and components

2. Standard:

GB/T 10128-1998 “Meta torsion test methods under room temperature”
GB/T 10128-2007 “Meta torsion test methods under room temperature”

3. Technical parameter:

Model	NDW- 100	NDW- 200	NDW- 500	NDW- 1000	NDW- 2000	NDW- 5000
Max torque(N/m)	100	200	500	1000	2000	5000
Test class	1 class
Control method	Constant torque, constant angle, constant twist angle closed-loop control modeclosed-loop control mode
Torque test range(F·S)	2%~100%F·S
Torque value accuracy	≤±1
Torque display resolution	1/5000
Angle value accuracy (%)	≤±1
Angle display resolution(°)	0.01
Max torque angle	99999°
Torque angular rate control rang(°/min)	0.05-800
Effective distance between chucks (mm)	600
Test rotating direction	Two ways
Power	220V±10%,50Hz
