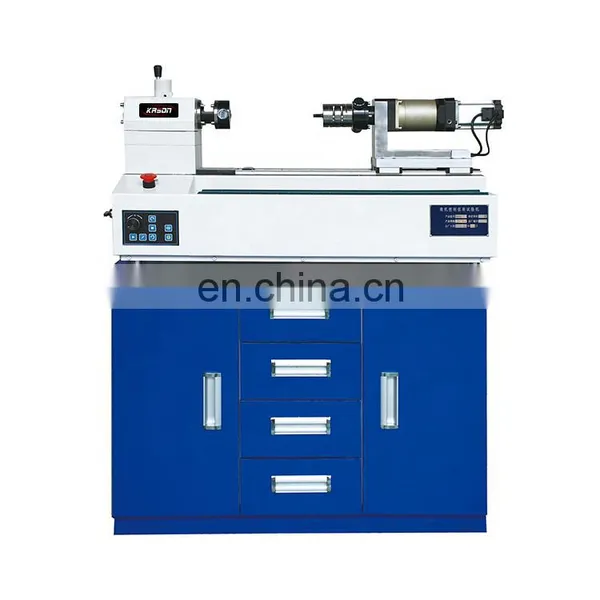

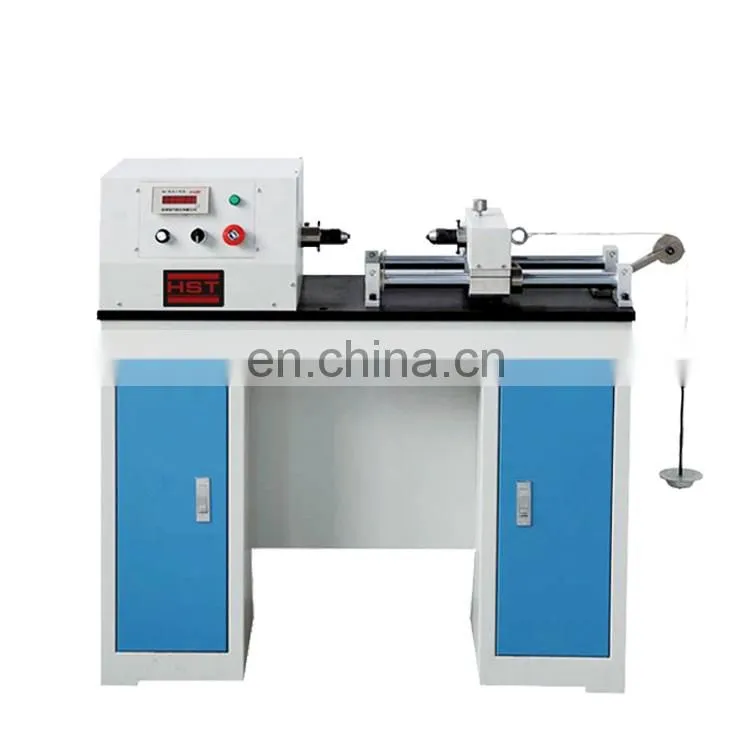

EZ Series Metal Wire Torsion Testing Machine
Application:
Metal wire torsion testing machine applies to determine the ability of diameter(or feature size) of 0.1-20.0 mm wire for bearing plastic deformation in one-way or two-way reverse , LCD display the surface and internal defects of the wire.
Technical Parameter:
|
Model |
EZ-1 |
EZ-3 |
EZ-10 |
EZ-20 |
|
Metal wire diam |
0.1-1mm |
1-3 mm |
1-10 mm |
1-20mm |
|
two chuck maximum distance |
500mm |
500mm |
570 |
500mm |
|
Torsion speed |
1.0-300mm/min(Arbitrary set) |
|||
|
Speed error |
<±10% |
|||
|
Minimum reading value of circle
|
0.1 |
|||
|
two chuck coaxality |
<0.4mm |
|||
|
Parallel degree
|
<0.2mm |
|||
|
Jaw hardness ( HRC ) |
HRC50-65 |
|||
|
Power supply |
AC220V±10% ,50HZ |
|||
|
Machine working noise |
<50 dB(A) |
<70 dB(A) |
||
