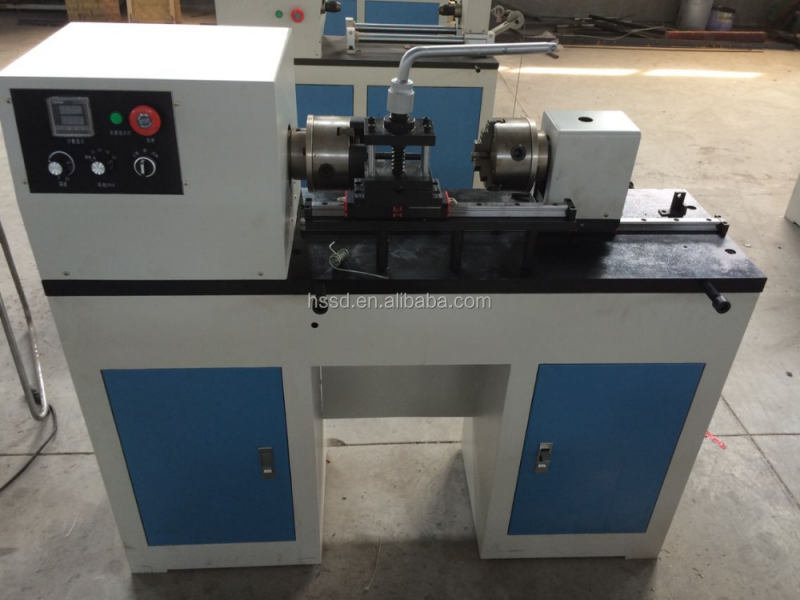

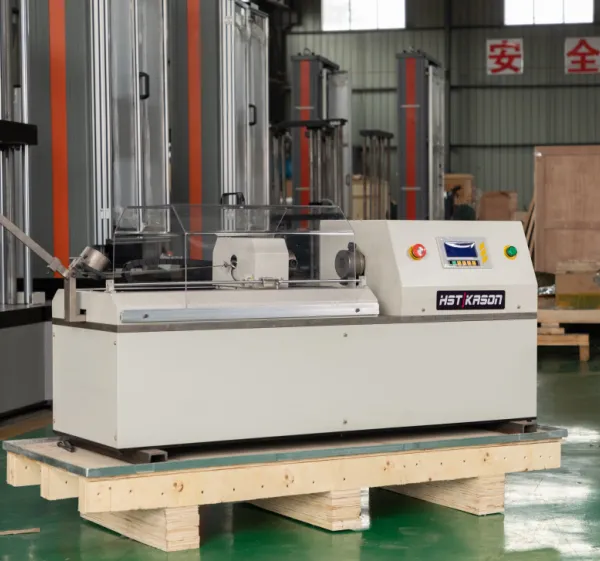

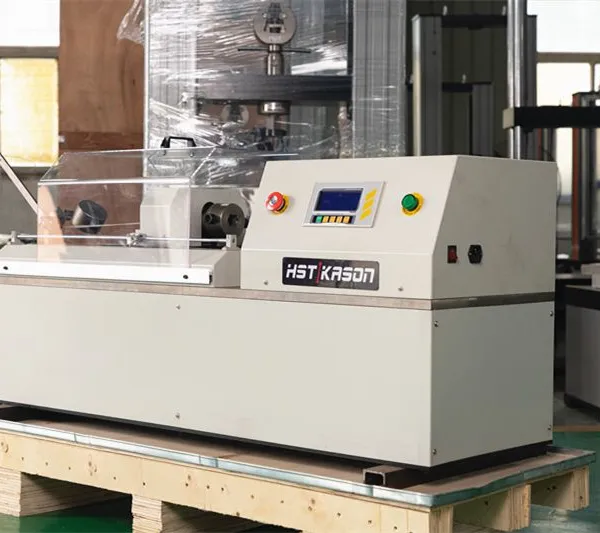

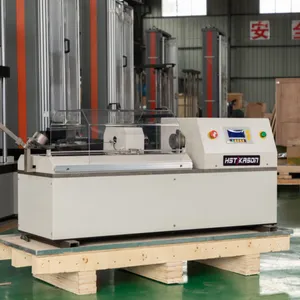

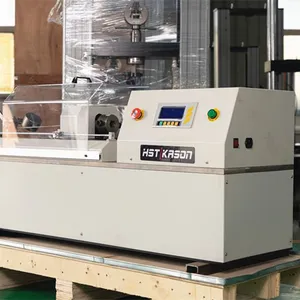

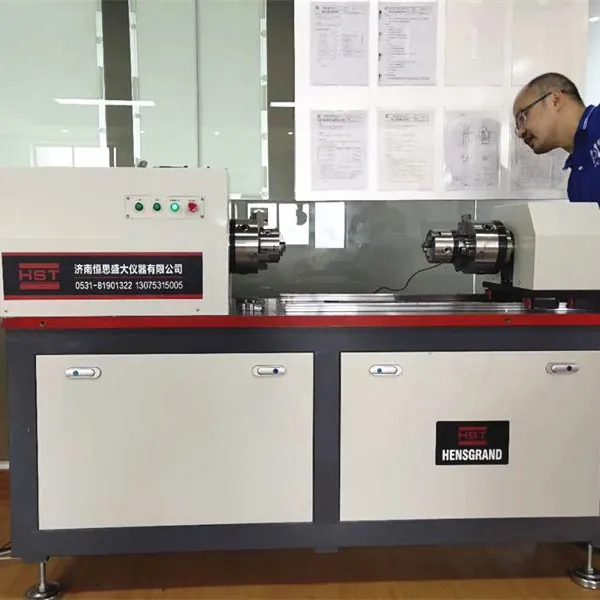

HST-N20M Manual Digital Display 20Nm Manual Torsion Testing Machine
ALI: cn1510988092 SKYPE: hstbetty009 Phone/Whatsapp/Wechat:+86-15866781190
1. Application:
Mainly carry out torsion test on materials, by manual loading, high-precision torque sensor to detect the torque, photoelectric encoder to detect the rotation angle, and digital display of the detection result. It is mainly used in the mechanics laboratories of relevant scientific research departments, various colleges and universities, and industrial and mining enterprises to determine the torsional properties of materials.
2. Standard :
GB/T 10128-1998 “Meta torsion test methods under room temperature”
GB/T 10128-2007 “Meta torsion test methods under room temperature”
3. Technical parameter:
|
Model |
NDJ-20 |
NDJ-50 |
NDJ-100 |
|
Max torque(N/m) |
20 |
50 |
100 |
|
Test class |
1 class |
||
|
Torque test range(F·S) |
1%~100% |
||
|
Relative error of torque indication |
±1% |
||
|
Angle value accuracy (%) |
≤±1 |
||
|
Angledisplay resolution(°) |
0.1 |
||
|
Max torque angle |
99999° |
||
|
Sample size |
0.1-200mm |
||
|
Effective distance between chucks (mm) |
200 |
||
|
Test rotating direction |
Two ways |
||
|
Power |
220V±10%,50Hz |
||
