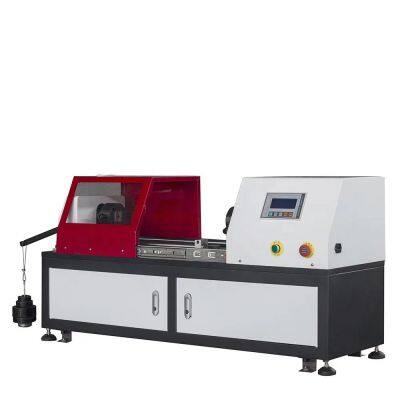

Home > Instruments & Meters > Test Instrument > Test Machine > ISO 7800/9649 EZ-3/10/20 0.1-20.0 mm Electric Wire Torsion Testing Machine
US$ 27291.81
1 Set
US$ 24492.65
≥2 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12 Months
Accuracy:
/
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST EZ-10 ISO 7800 10mm Metal Materials WIRE Torsion Testing MachineUS$ 2500 - 3500MOQ: 1 Set -
HST Multifunctional Astm A938 Metallic Wire Material Torsion Testing Machine Torque TesterUS$ 59482.15 - 62281.31MOQ: 1 Set
-
NDW-2000 Electronic Cable Torsion Strength Testing Machine 2000N.M Wire Twist TesterUS$ 69979.00MOQ: 1 Set
-
ISO-Certified ISO 7800/9649 Torsion Testing Equipment for Metal Wires | Bidirectional RotationUS$ 17494.75 - 20293.91MOQ: 1 Set
-
ISO 7800/9649 Automatic Metal Wire Twist Testing Machine | Surface Defect Detection 3-10mmUS$ 17494.75 - 20293.91MOQ: 1 Set
Warranty
12 Months
Accuracy
/
brand name
HST OR OEM
place of origin
Shandong, China
customized support
OEM, ODM, OBM
power
/, Electronic
Protection Class
/
Voltage
220 V
warranty
1 year
Product name
Wire Torsion Testing Machine
Standard
BS.EN.ASTM
Power supply
220V 50Hz
Material
0.1-20.0 mm wire
Certificate
CE ISO
Application
Torsion test
Certification
Reach
Product Description
Application:
Wire torsion testing machine applies to determine the ability of diameter(or feature size) of 0.1-20.0 mm wire for bearing plastic deformation in one way or two way torsion test, display the surface and internal defects of the wire. Provide reliable data for production of wire and wire rod company. Widely used in aerospace, metal material processing, tire manufacturing industries, and institutions of higher learning, scientific research institutions, technical supervision, quality inspection departments and so on.
Standard:
GB/T2611-2007 General requirements for testing machines
GB/T 239-1999 Metal wire twisting test method
ISO 7800:1984 Metal wire one-way torsion test method
ISO 9649:1990 Metal wire two-way torsion test method
Could add special gips to do the wrap winding testing machine.(optional)
Technical parameter:
Model | HEZ-3 | HEZ-10 | HEZ-20 | HEZ-30 | |||
Working method | Automatic loading | ||||||
Max Clamp metal wire diameter(mm) | 0.2-3 | 2-10 | 10-20 | 10-30 | |||
Parallelism degree of mobile guide rail within the total length scope | ≤0.2 | ||||||
Max distance between two columns | 320 | 520 | 600 | 600 | |||
Rotation speed adjusting range (r/min) | 0-180 | 0-60 | 15-20 | ||||
Speed error | <±1% | ||||||
Minimum reading value of circle | 0.1 | ||||||
Two chucks comicality | < 0.4 | ||||||
Jaw hardness ( HRC ) | HRC55-65 | ||||||
Weight error | ±0.5% | ||||||
Working Noise (dB) | ≤70 | ||||||
Power supply | AC220V±10% ,50HZ | ||||||
