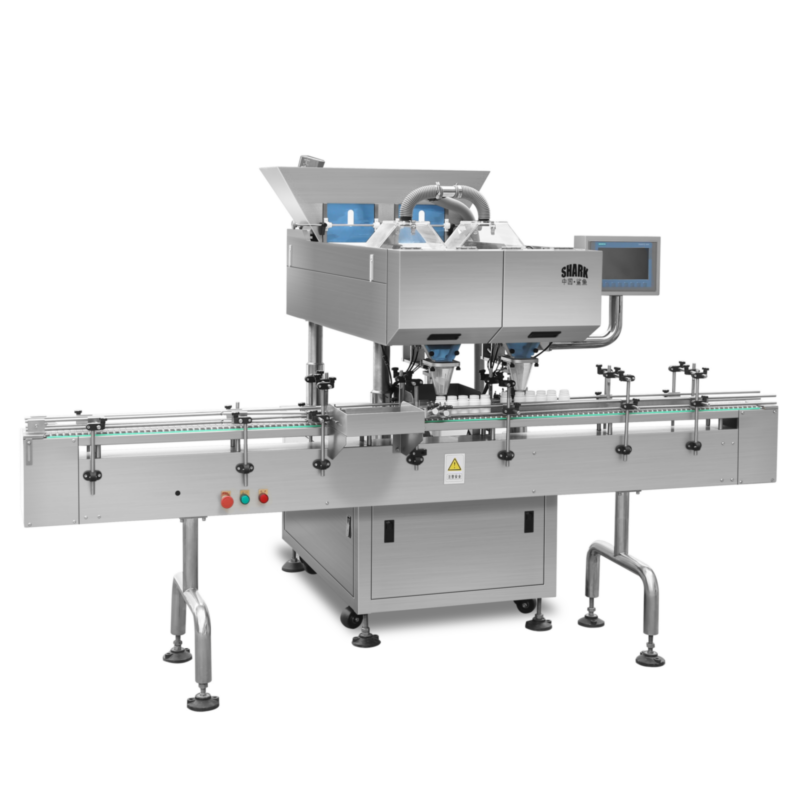

Product Overview
The BPS-16 is a high-speed multi-channel electronic counting machine designed and manufactured in strict accordance with GMP standards and process requirements. Engineered to deliver optimal counting efficiency with superior reliability, this fully automatic filling equipment incorporates enclosed box-type structures for all rotating components to improve dust prevention, lubrication, and maintenance while ensuring product cleanliness and easy equipment sanitation. All product-contact surfaces are constructed from stainless steel or non-toxic, chemically stable non-metallic materials with high-precision polishing. Featuring a 16-channel three-stage vibration feeding system with advanced dust-resistant photoelectric sensors, this machine maintains exceptional counting accuracy even in challenging production environments. The integrated fragment detection system and programmable controls make it an ideal solution for pharmaceutical, nutraceutical, chemical, and food industries requiring precise counting and filling operations.
Technical Parameters
| Item | Technical Parameter |
|---|---|
| Equipment Name | Electronic Counting Machine |
| Model | BPS-16 |
| Production Speed | Up to 12,000 pills/minute (depending on bottle specification and filling volume) |
| Quantity per Bottle | 1 - 9,999 (freely adjustable) |
| Product Size Range | • Tablets: 3-23mm • Capsules: Size 0-5 • Pills: 2-12mm |
| Bottle Specification (ml) | 15 - 300 |
| Voltage / Frequency (V/Hz) | Single-phase AC 220V, 50/60Hz |
| Air Pressure Source (MPa) | 0.6 |
| Dimensions L×W×H (mm) | 2200 × 1600 × 1700 (height adjustable) |
| Power (kW) | 1.2 |
| Air Consumption (L/min) | 14.5 |
| Weight (kg) | 650 |
| Channels | 16 |
| Feeding System | 3-stage vibration feeding |
| Speed Adjustment | 4-level adjustable vibration |
| Control System | PLC with Siemens HMI touchscreen |
| Counting Accuracy | Better than national standards |
| Noise Level | Low noise operation |
| Safety Features | Missing bottle detection, automatic stoppage |
Key Features
High-Speed Counting: Capable of processing up to 12,000 pills per minute with 16-channel vibration feeding
Superior Accuracy: Advanced dust-resistant photoelectric sensors ensure reliable counting even in dusty environments
Quality Protection: Integrated fragment detection system automatically rejects broken pieces
User-Friendly Interface: Siemens touchscreen HMI with multi-language support and preset parameters
Flexible Configuration: Programmable counting from 1 to 9,999 units per bottle
GMP Compliance: All contact parts made of stainless steel or food-grade materials with polished surfaces
Safety Systems: Automatic detection and shutdown for missing bottles and blockages
Easy Maintenance: Modular design for quick cleaning and part replacement
Energy Efficient: Optimized design reduces power consumption and operational costs
Applications
Pharmaceutical Industry: Counting and filling of tablets, capsules, and pills
Nutraceutical Manufacturing: Dietary supplements and vitamin products
Chemical Products: Precise counting of chemical pellets and granules
Food Industry: Food supplements and confectionery items
Integrated Production Lines: Compatible with unscramblers, cappers, labelers, and other packaging equipment
According to the user’s bottle type, drug specification, quantity per bottle and the production speed, we have several types with: 8, 12, 16, 24, 32 channels for user to choose.
