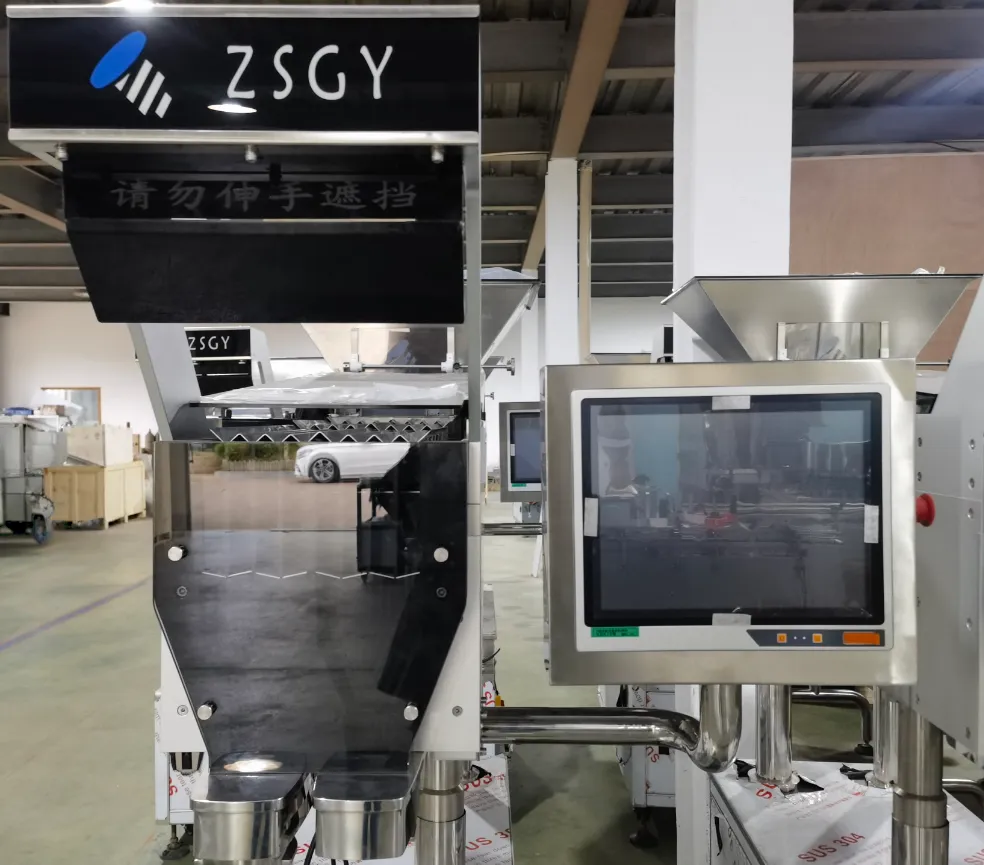

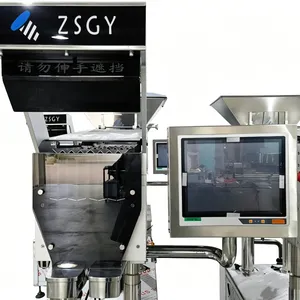

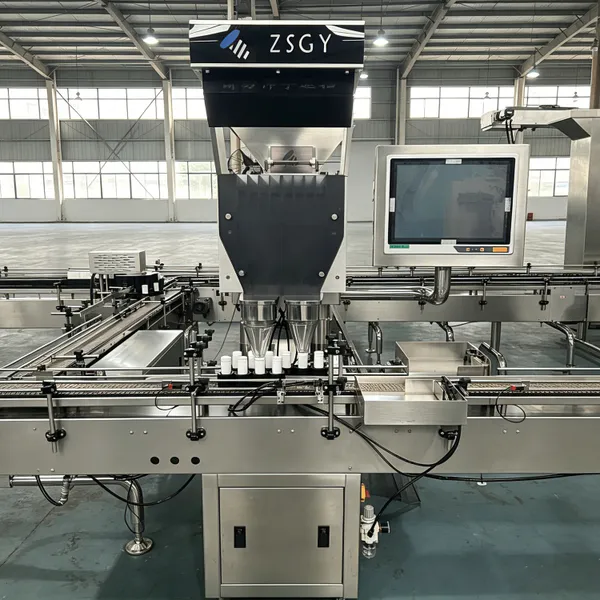

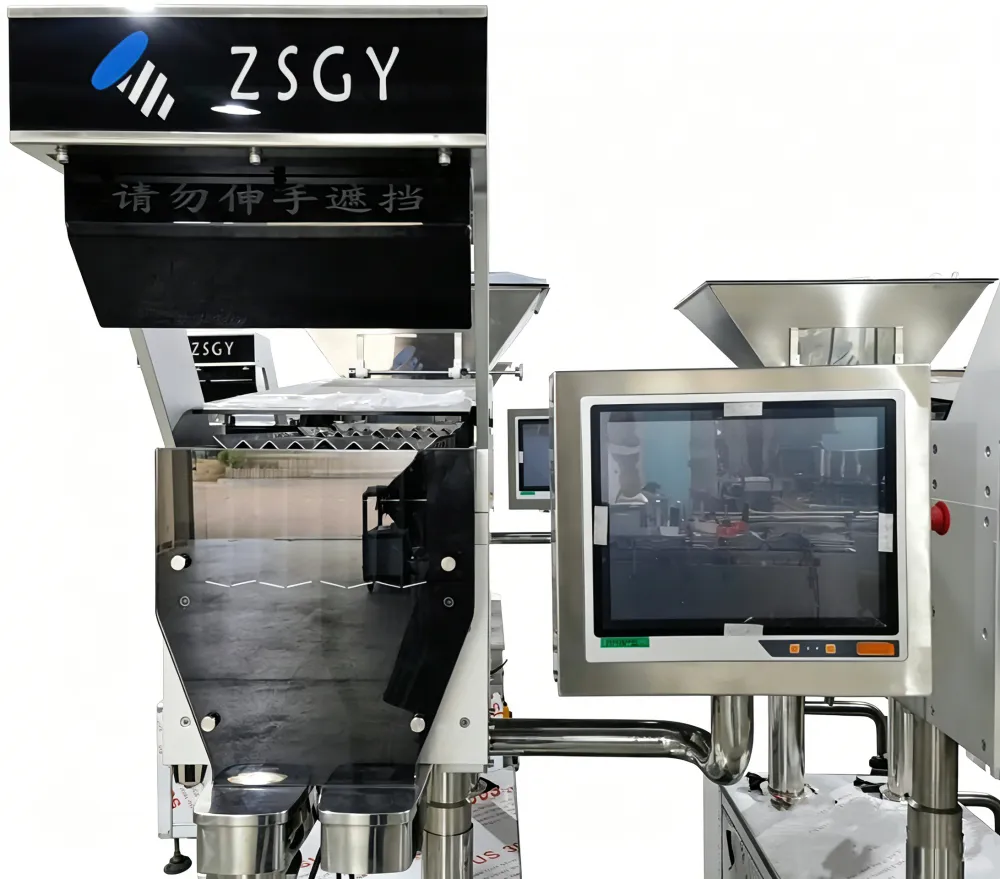

Introducing the BPS-D8 Automatic Vision Tablet Counter – a cutting-edge solution engineered for pharmaceutical and nutraceutical industries seeking unparalleled precision in tablet counting. This system integrates advanced CCD camera technology with a powerful ARM processor to deliver exceptional counting accuracy at remarkable speeds, significantly reducing operational costs while eliminating human counting errors. Designed for seamless integration into high-volume production lines, the BPS-D8 ensures GMP compliance and operational excellence through its non-contact optical counting mechanism.
Manufactured by Zhejiang Zhong Shark Industrial Technology Co., Ltd – an ISO9001-certified specialist with over a decade of industrial automation expertise – this machine represents the convergence of reliability and technological sophistication. The stainless-steel construction guarantees durability in demanding environments, while customizable dimensions accommodate diverse facility layouts.
Core Technical Advantages:
Intelligent Recognition System: Dual-camera setup with adjustable lighting identifies tablets/capsules by shape and surface features
Zero-Contact Counting: Prevents product damage or cross-contamination during operation
Self-Diagnostic Function: Automatic calibration and error detection minimize downtime
Multi-Batch Memory: Stores 100+ product profiles for instant recipe recall
Performance Specifications:
| Project | Technical Parameters |
|---|---|
| Equipment Name | Visual Counting Machine |
| Model | BPS-D8 |
| Bottle Size (ml) | 15-300 |
| Maximum Production Capacity (bottles/min) | 3500-6000 pieces/min (depending on bottle size and filling volume) |
| Working Air Pressure (MPa) | 0.6 |
| Compressed Air Consumption (L/Min) | 6.5 |
| Power Supply Voltage (V) | 220 |
| Total Power (kW) | 1.2 |
| Dimensions (mm) (L×W×H) | 1600×1900×1850 |
| Net Weight (Kg) | 500 |
| Power Supply | Single-phase AC 220V 50/60HZ |
Operational benefits extend beyond technical specifications. The BPS-D8 reduces counting labor requirements by 70% compared to manual methods, with ROI typically achieved within 8-12 months. The touchscreen interface simplifies operation with multilingual support, while the patented vibration-free feeding system prevents tablet breakage even with fragile enteric-coated products.
Frequently Asked Questions:
Q: Can it count irregularly shaped supplements?
A: Yes, the AI-based vision system learns new shapes through pattern trainingQ: What maintenance is required?
A: Daily lens cleaning and quarterly calibration (takes under 15 minutes)Q: Does it generate compliance documentation?
A: Yes, automatic CSV reports for FDA 21 CFR Part 11 complianceQ: Can it integrate with existing blister machines?
A: Compatible with most packaging lines via programmable I/O portsQ: What's the warranty coverage?
A: 2-year comprehensive warranty with global technical support
Transform your production efficiency with the industry's most reliable vision counting technology. Over 300 pharmaceutical companies globally have standardized on BPS series counters for their production-critical applications. Contact our engineers today for a free productivity assessment and discover how the BPS-D8 can streamline your operations while reducing counting inaccuracies to near-zero levels.
All equipment undergoes 72-hour continuous operation testing before shipment, ensuring flawless performance upon installation. Custom configurations available for specialized applications including cytotoxic drug handling and sterile environments.
