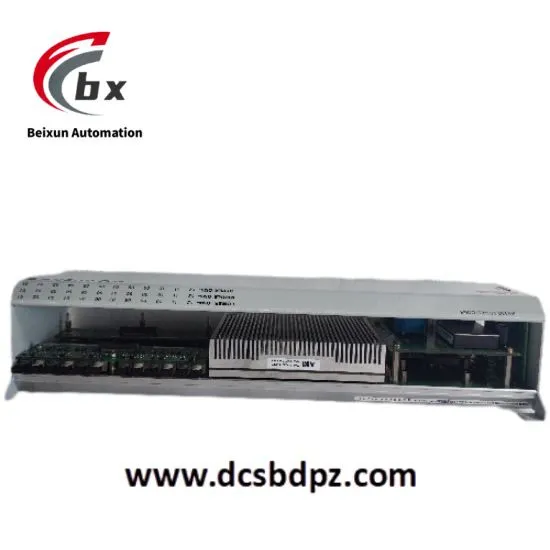

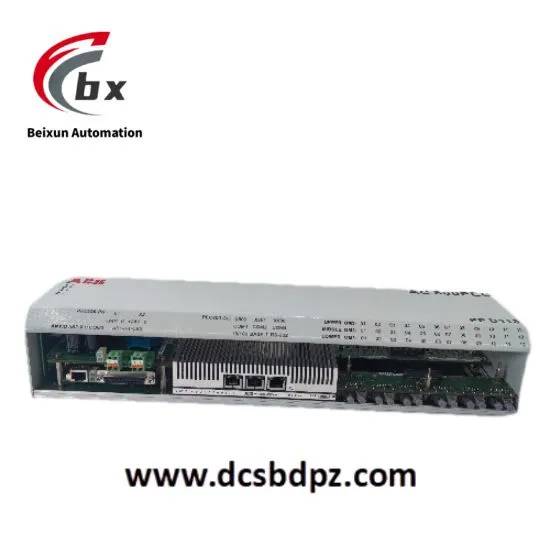

ABB PPD113B01-10-150000 3BHE023784R1023 is an industrial-grade high-performance power protection and drive module, serving as the core power unit of ABB industrial drive systems. Its core function is to provide precise drive control and comprehensive fault protection for medium and high-voltage motors. It realizes efficient conversion and speed regulation of electrical energy through power semiconductor devices, integrates multiple protection mechanisms such as overcurrent, overvoltage, overheating and short circuit protection, and features high power density and strong environmental adaptability design. Complying with industrial EMC and safety standards, it is a key power component to ensure stable operation of motors and extend their service life.
Rated Voltage Adaptable to medium and high-voltage systems, rated input voltage 10kV, allowing voltage fluctuation ±10%Rated Current Rated output current 1500A, maximum overload current 1800A (1-minute duration)Power Rating Standard power configuration corresponding to 10kV/1500A working conditionsSwitching Device Adopts high-voltage IGBT power module with rated voltage 1700V, switching frequency configurable 1kHz-5kHzOutput Frequency Range 0-60Hz, supporting low-frequency high-torque startup (torque ≥150% rated torque at 0.5Hz)Conversion Efficiency Conversion efficiency ≥98.8% under rated load, ≥95% under light load conditionsProtection Functions Overcurrent protection, overvoltage protection, undervoltage protection, overheating protection, short circuit protection, IGBT fault protection, earth fault protectionIsolation Level Electrical isolation between primary and secondary sides, isolation voltage 30kVAC (1 minute)Certification Standards Compliant with CE, UL, cUL, IEC 61800-5-1, IEC 61000-4 series standards
Mechanical ParametersOverall Dimensions 800mm×600mm×400mm, modular design suitable for standard drive cabinetsWeight Approximately 120kg, meeting the load-bearing requirements of industrial cabinet installationMounting Method Bolt-fixed installation, compatible with standard mounting holes of ABB medium and high-voltage drive system cabinetsHousing Material Industrial-grade high-strength aluminum alloy shell, integrated with heat dissipation air duct and electromagnetic shielding structureConnection Method Copper bar bolt connection (main circuit), plug-in aviation connector (control circuit)Protection Rating IP21, dustproof and drip-proof, suitable for indoor industrial drive cabinet environmentsStatus Indication Equipped with power (green), operation (yellow), fault (red), overload (orange) LED indicators
Environmental ParametersOperating Temperature -10℃ to 45℃, current derating 1.5% per 1℃ increase above 45℃Storage Temperature -40℃ to 80℃, meeting extreme storage and long-distance transportation requirementsRelative Humidity 5% to 95% (non-condensing), adapting to high-humidity industrial scenariosVibration Resistance Complies with IEC 60068-2-6 standard, 0.3g acceleration at 5Hz-150Hz frequency rangeShock Resistance Complies with IEC 60068-2-27 standard, 8g acceleration (11ms duration)EMC Compliance Complies with EN 55014-1, IEC 61000-4-2/3/4/6 standards, low electromagnetic interference and high anti-interference capability
Efficient power conversion with over 98.8% efficiency under rated load, achieving significant energy-saving effectPrecise drive control with output torque fluctuation ≤±2%, ensuring stable motor operationStrong overload capacity, supporting 120% rated current overload for 1 minute, adapting to impact load conditionsExcellent thermal management, integrated heat dissipation design + multi-point temperature monitoring, ensuring stable operation in high-temperature environmentsRapid protection response, fault detection and protection action time ≤5ms, avoiding damage to modules and motorsHigh operational reliability, industrial-grade IGBT devices + strict aging screening, Mean Time Between Failures (MTBF) ≥60,000 hoursStrong compatibility, perfectly matching ABB medium and high-voltage drive series, supporting rapid replacement and system expansionOutstanding anti-interference capability, electromagnetic shielding design + filter circuit, adapting to complex industrial electromagnetic environments
Application AreasPower Industry (Large fan, water pump, compressor drive)
Oil and Gas Industry (Oil and gas transmission pump, pipeline compressor control)
Chemical and Petrochemical Industry (Reactor agitator, material transfer pump drive)
Metallurgical Industry (Rolling mill drive, blast furnace fan, dust removal fan control)
Cement and Building Materials Industry (Rotary kiln drive, cement mill fan speed regulation)
Mining Industry (Mine hoist, ventilation fan, drainage pump drive)
Papermaking Industry (Large paper machine drive system)
Marine Industry (Ship propulsion motor, auxiliary power motor control)
PPD113B01-10-120000 3BHE023784R1024
PPD113B01-10-180000 3BHE023784R1025
PPD113B01-10-200000 3BHE023784R1026
PPD112B01-10-150000 3BHE023784R1027
PPD114B01-10-150000 3BHE023784R1028
PPD113B01-06-150000 3BHE023784R1029
PPD113B01-10-100000 3BHE023784R1030
