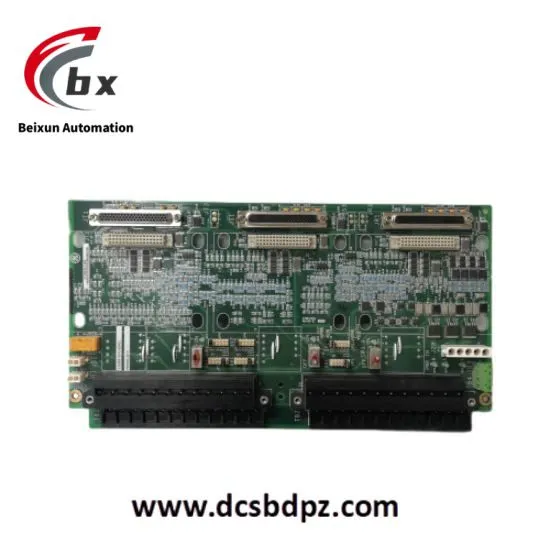

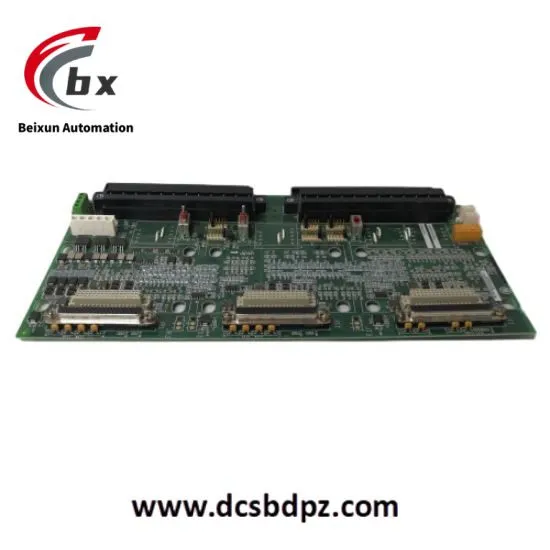

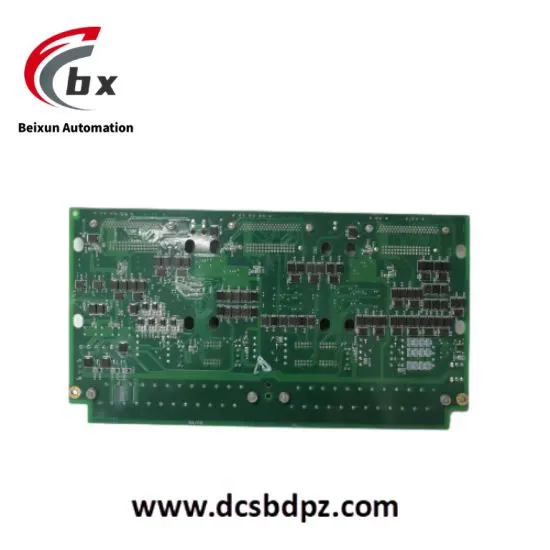

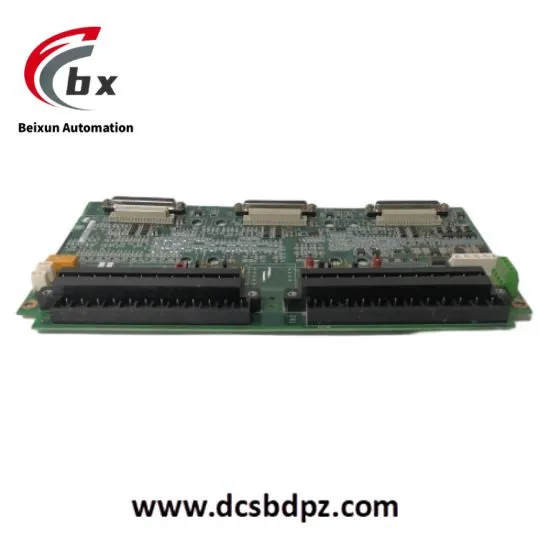

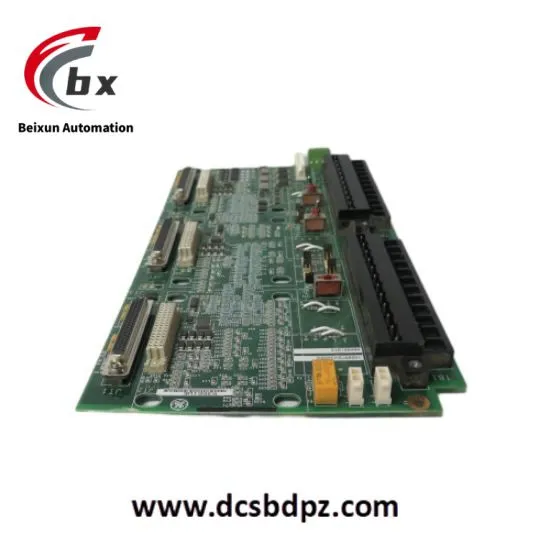

GE IS200TSVCH2ADC MRP061873 is an industrial-grade high-performance analog input module, serving as a core component of the GE Mark VIe distributed control system. Its core function is to accurately collect continuous analog signals such as temperature, pressure and liquid level from industrial sites, realizing reliable data transmission through built-in signal conditioning, filtering and A/D conversion circuits. It supports redundant architecture integration, adapts to the parameter monitoring needs of key equipment such as steam turbines and gas turbines, complies with industrial safety and EMC standards, and has high stability and anti-interference capability. It is a core signal processing unit for accurate monitoring of continuous parameters in production processes.
Operating Voltage 24VDC (±10%), supporting redundant power input
Operating Current Typical operating current 0.5A, maximum operating current 0.8A
Input Channels 8 independent analog input channels with electrical isolation between channels
Input Signal Types Supporting thermocouple (J/K/T/E/R/S/B/N types), RTD (Pt100/Pt1000), 4-20mA current input, ±10VDC voltage input
Conversion Accuracy 16-bit A/D conversion resolution, measurement accuracy ±0.05%FS
Sampling Rate Maximum sampling rate per channel 100Hz, supporting channel polling sampling
Input Impedance ≥100Ω in current input mode, ≥1MΩ in voltage input mode, ≤10Ω in RTD input mode
Filter Function Built-in digital filtering and hardware RC filtering, filter time constant configurable (0.1ms-100ms)
Protection Functions Built-in overvoltage protection (maximum withstand voltage ±30VDC), reverse polarity protection, short circuit protection
Power Consumption Typical power consumption ≤12W, full-load power consumption ≤15W
Certification Standards Compliant with CE, UL, cUL, IEC 61010-1, IEC 61800-5-1 standards
Mechanical ParametersOverall Dimensions 160mm×100mm×30mm, standard rack-mounted design suitable for Mark VIe system cabinets
Weight Approximately 0.6kg, lightweight structure facilitating installation and maintenance
Mounting Method Rail-mounted installation, compatible with GE Mark VIe standard system rack slots
Housing Material Industrial-grade high-strength flame-retardant plastic shell with electromagnetic shielding performance
Connection Method Plug-in spring terminals (signal and power supply), compatible with 0.5-1.5mm² shielded cables
Protection Rating IP20, suitable for indoor industrial control cabinet environments
Status Indication Equipped with module power (green), operation (yellow), fault (red) LED indicators, sampling status of each channel fed back through system software
Environmental ParametersOperating Temperature 0℃ to 60℃, no performance derating over the entire temperature range
Storage Temperature -40℃ to 85℃, meeting extreme storage and transportation requirements
Relative Humidity 5% to 95% (non-condensing), adapting to high-humidity industrial scenarios
Vibration Resistance Complies with IEC 60068-2-6 standard, 2g acceleration at 5Hz-500Hz frequency range
Shock Resistance Complies with IEC 60068-2-27 standard, 15g acceleration (11ms duration)
EMC Compliance Complies with EN 55014-1, IEC 61000-4-2/3/4/6 standards, low electromagnetic interference and high anti-interference capability
Excellent sampling accuracy, 16-bit resolution + ±0.05%FS accuracy ensuring signal acquisition accuracy
Wide signal compatibility, adapting to multiple types of analog input signals to meet multi-parameter monitoring needs
Strong anti-interference capability, electromagnetic shielding + dual filtering design ensuring stable signals in complex industrial environments
Flexible sampling rate, 100Hz high sampling rate adapting to dynamic parameter monitoring, filter time configurable on demand
Good redundancy adaptability, supporting integration with Mark VIe system redundant architecture to improve monitoring system availability
Comprehensive self-diagnostic functions, real-time monitoring of channel status, A/D conversion circuit and power supply conditions, timely fault alarm
High operational stability, industrial-grade component selection and strict quality control, Mean Time Between Failures (MTBF) ≥1,200,000 hours
Convenient installation and maintenance, modular plug-in design + spring terminals enabling efficient wiring and module replacement
Application AreasPower Industry (Steam Turbine, Gas Turbine Temperature and Pressure Monitoring)
Oil and Gas Industry (Oil and Gas Processing Equipment Parameter Acquisition)
Chemical and Petrochemical Industry (Reactor Temperature, Liquid Level Monitoring)
Metallurgical Industry (Blast Furnace, Rolling Mill Process Parameter Acquisition)
Cement and Building Materials Industry (Rotary Kiln Temperature, Pressure Monitoring)
Water Treatment Industry (Water Quality Parameters, Liquid Level Signal Acquisition)
Marine Industry (Ship Power System Parameter Monitoring)
Industrial Automation Monitoring Systems
