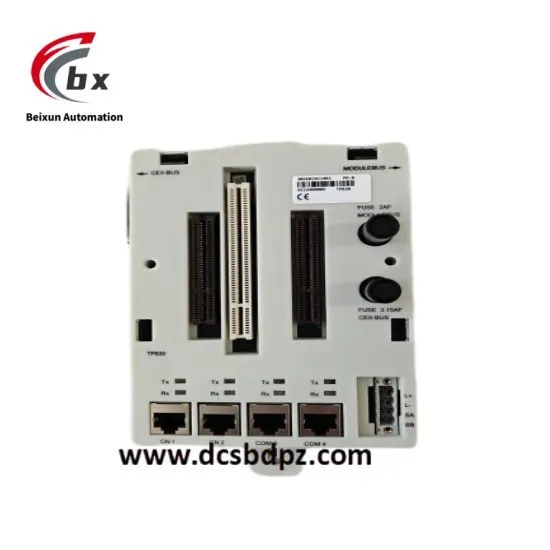

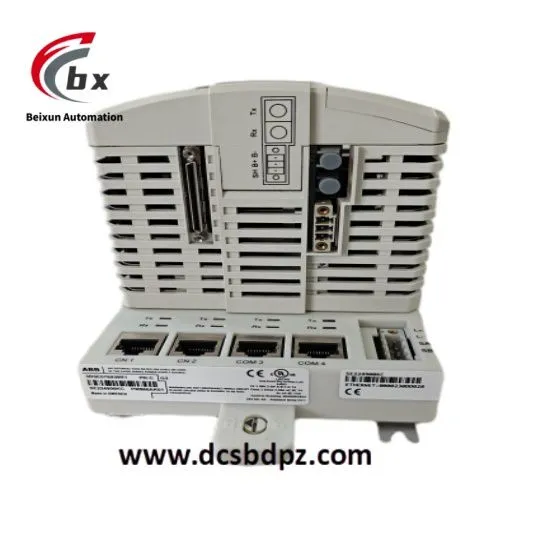

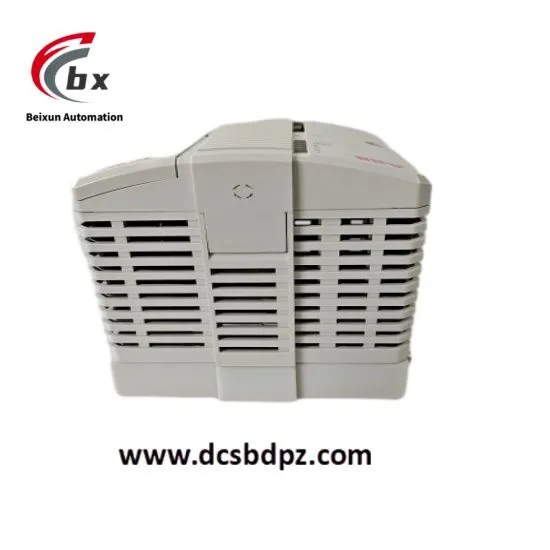

Help CenterPM866K01 3BSE050198R1 Central Processing Unit (CPU)
Related Products
-
5SHY4045L0006 3BHB030310R0001/3BHE039203R0101/GVC736CE101 IGCT (Integrated Gate Converter Thyristor) Module KitNegotiableMOQ: 1 Set -
S-073N 3BHB009884R0021 IGCT Phase Module (rack)NegotiableMOQ: 1 Unit
-
07KT98 GJR5253100R0278/GJR5253100R4278 Industrial Control ModuleNegotiableMOQ: 1 Piece
-
3500/22M 138607-01/138607-02/288055-01/146031-01/146031-02 Transient Data Interface ModuleNegotiableMOQ: 1 Piece
-
Bently 3500/15 127610-01/129489-01/114M5330-01/114M5335-01/106M1079-01/125840-01/125840-02/129478-01 General AC/DC Power Supply ModuleNegotiableMOQ: 1 Piece
Product Description
PM866K01 3BSE050198R1 is a flagship high-performance redundant controller module of the AC 800M series, core compatible with large-scale Distributed Control Systems (DCS) and Safety Instrumented Systems (SIS), undertaking ultra-large-scale complex process control, logic interlock and safety protection functions. The module adopts a quad-core industrial-grade CPU architecture and Triple Modular Redundancy (TMR) design, seamlessly integrating with the ABB 800xA automation platform. It supports multi-protocol industrial communication and massive I/O expansion, is certified by IEC 61508 SIL 3, and features online hot-swapping, fault self-diagnosis and remote maintenance capabilities. It serves as a core control unit to ensure continuous, safe and efficient operation of systems in critical industrial scenarios such as power and petrochemical industries.
Processor: Quad-core 32-bit industrial-grade CPU, 1.8GHz clock speed, supporting parallel multi-taskingMemory Configuration: 4GB DDR4 RAM (operating memory), 16GB eMMC flash memory (program/data storage)Operating Voltage: 24V DC±10%, supporting dual-power redundant input (independent A/B power supply)Power Consumption: Typical 22W, maximum 28W under full-load operationCommunication Interfaces: 4 Gigabit Ethernet ports (supporting Profinet IRT, Modbus TCP/IP, EtherNet/IP), 2 RS-485 ports (Modbus RTU)I/O Expansion: Supports up to 128 local I/O modules, remote I/O expansion via PROFIBUS DP/PA and ProfinetSafety Certifications: IEC 61508 SIL 3, IEC 61131-3, CE, UL 508, TÜV Rheinland certificationScan Cycle: ≤0.5ms for logic control, ≤2ms for process control, meeting ultra-high-speed real-time control requirementsRedundancy Switchover Speed: Hot-standby redundant configuration, switchover time ≤10ms, no data loss or control interruptionDiagnostic Functions: Integrated self-diagnosis for CPU overload, memory error, power failure, communication interruption and I/O link abnormality, real-time fault code outputMean Time Between Failures (MTBF): ≥400,000 hours (compliant with IEC 61709 standard)
Mechanical ParametersOverall Dimensions: 100mm (W) × 160mm (H) × 220mm (D), standard rack-mounted module designWeight: Approximately 1.5kg, compatible with AC 800M series CI854/CI858 standard chassis installationMounting Method: Plug-in installation, supporting online hot-swapping (no system operation interruption)Housing Material: Die-cast aluminum alloy (main body) + flame-retardant reinforced engineering plastic (interface panel), anti-Electromagnetic Interference (EMI)Protection Rating: IP20 (module itself), relying on the overall dust protection of the chassisStatus Indication: 8 LED indicators (Power A/B, Operation, Redundancy Status, Fault, Communication A/B, I/O Link), providing real-time working status feedback
Environmental ParametersOperating Temperature: -25℃ to +70℃, operation without derating over the entire temperature rangeStorage Temperature: -40℃ to +85℃, meeting extreme storage and long-distance transportation requirementsRelative Humidity: 5% to 95% (non-condensing), suitable for high-humidity industrial scenarios (e.g., coastal petrochemical plants)Vibration Resistance: 10-500Hz frequency range, 1.5g acceleration (sine wave), no hardware damage or program interruptionShock Resistance: 20g acceleration (half-sine wave, duration 11ms), withstanding shocks in rack-mounted scenariosEMC Compliance: Meets EN 55014-1 (emission limits), EN 55014-2 (immunity), EN 61326-1 (industrial environment)Installation Altitude: ≤2000m (normal operation), power derating 10% for every 1000m increase from 2000m to 5000m
Product PerformanceExcellent computing capability: Quad-core 1.8GHz CPU with 4GB high-speed memory, complex control logic execution efficiency 50% higher than the previous generation, supporting parallel processing of 10,000+ I/O signalsExtremely high redundancy reliability: TMR redundancy architecture + dual-power input, system availability up to 99.999%, seamless redundancy switchoverWide compatibility: Seamless integration with 800xA platform, supporting data interaction with third-party I/O modules, SCADA systems and MES systems, compatible with OPC UA and MQTT protocolsStrong safety compliance: SIL 3 certification meets safety control requirements for high-risk scenarios, fault response time ≤1ms, preventing safety accidentsEfficient maintenance: Supports online firmware upgrade, I/O module hot-swapping and remote diagnosis, fault troubleshooting time ≤20 minutesExcellent environmental adaptability: Wide temperature, vibration-resistant and anti-EMI design, adapting to harsh industrial working conditions such as high altitude, high dust and strong electromagnetic interferenceExtremely strong expansion capability: A single module can manage 20,000+ I/O signals, supporting multi-area remote control station expansion to meet the needs of large-scale complex systems
Power Industry (Supercritical thermal power plant DCS control, nuclear power plant auxiliary system control, UHV substation automation)
Petrochemical Industry (Large-scale integrated refining and chemical plant control, deep-sea oil and gas extraction platform control system, long-distance pipeline monitoring)
Metallurgical Industry (Large iron and steel complex automation, non-ferrous metal smelting process control, wide and heavy plate mill linkage control)
Manufacturing Industry (Semiconductor wafer manufacturing equipment cluster control, automobile assembly line automation, heavy machinery intelligent control)
Water Treatment (Ultra-large sewage treatment plant process control, seawater desalination equipment cluster monitoring, waterworks full-process automation)
Pharmaceutical Industry (Biopharmaceutical batch control, FDA 21 CFR Part 11 compliant data traceability, aseptic workshop environmental control)
Rail Transit (Urban rail transit signal interlock system, high-speed rail traction power supply control, freight railway dispatching automation)
PM856 3BSE050193R1 (Standard controller, no redundancy function)
PM860 3BSE062498R1 (Enhanced redundant controller, dual-core 1.5GHz)
PM861 3BSE062500R1 (Safety controller, SIL 4 certification)
PM865 3BSE070314R1 (High-performance redundant controller, quad-core 1.6GHz)
PM866 3BSE050198R2 (Basic flagship controller, without K01 enhanced functions)
PM885 3BSE081639R1 (Large-scale system controller, supporting 256 I/O modules expansion)
Send Inquiry to This Supplier
