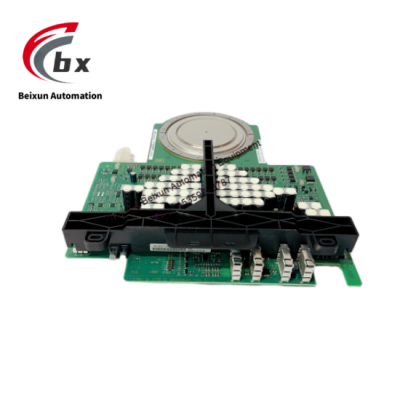

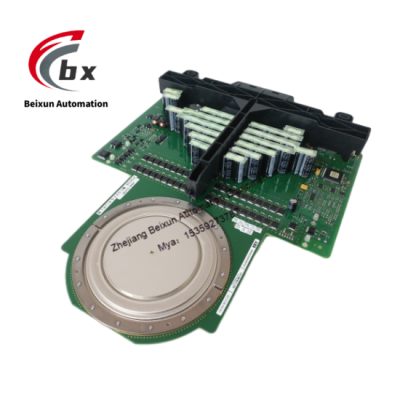

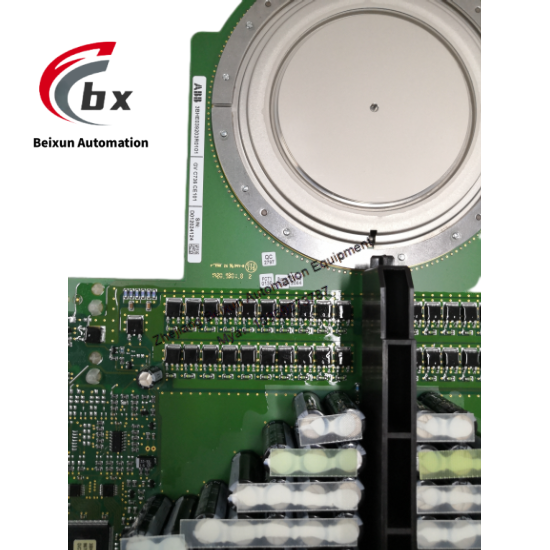

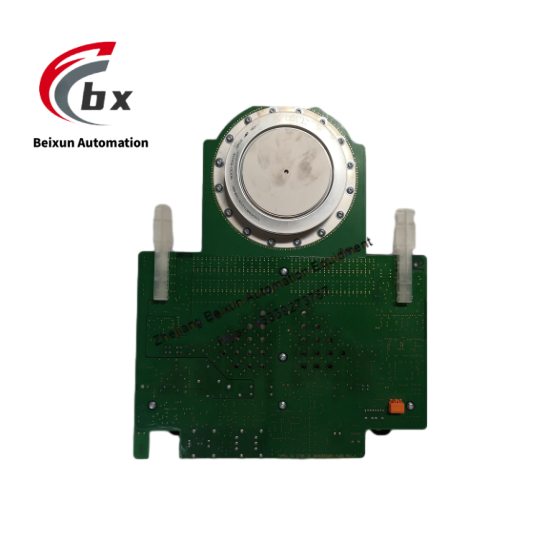

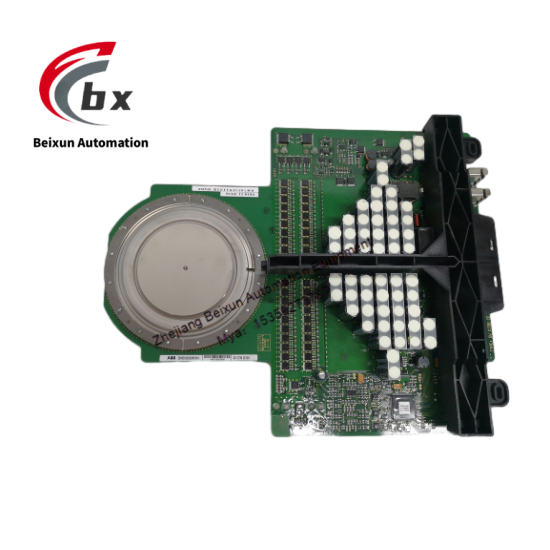

5SHY4045L0006 3BHB030310R0001/3BHE039203R0101/GVC736CE101 IGCT (Integrated Gate Converter Thyristor) Module Kit

5SHY4045L0006 3BHB030310R0001/3BHE039203R0101/GVC736CE101
Product Description

IGCT (Integrated Gate Converter Thyristor) module kit, also commonly known as the "High Voltage Inverter Core Power Module" or "High Power Electronic Control Unit". As the "heart" of high-voltage variable frequency systems, it provides efficient and reliable high-power power control solutions for the industrial field. In the industry, it is commonly referred to as the "5SHY4045L0006 IGCT module" or "high-voltage variable frequency power unit".

Basic composition of the product

This kit includes the following core components:
5SHY4045L0006: IGCT main module, which is the core power semiconductor device
3BHB030310R0001: Control card, responsible for driving and controlling IGCT modules
3BHE039203R0101/GVC736CE101: Auxiliary control component, providing signal processing and protection functions

Product functional positioning

This is a high-voltage high-power power electronic device mainly used in industrial variable frequency drive systems. Its core functions include:
High power energy conversion: suitable for high voltage (up to 4.5kV) and high current (up to 4000A) scenarios
Precise control: achieve precise adjustment of motor speed and torque
Optimization of Power Quality: Improving Power Factor and Reducing Harmonic Pollution
Energy feedback: supports four quadrant operation, can return braking energy to the grid

Main technical features

High switching frequency: ≤ 20kHz, fast response
Low conduction loss: about 1.5~2.5V, improving system efficiency
Quick shutdown: shutdown time<30 μ s, protecting system security
Wide temperature range: -25 ° C~+70 ° C, suitable for harsh industrial environments
Modular design: easy to maintain and replace

Application field

Widely used in industrial scenarios that require high-power control:
Metallurgical industry: Drive systems for rolling mills and cranes
Power Transmission: Grid Converter Stations, Flexible AC Transmission Systems (FACTS)
Petrochemical industry: large pumps, compressor drives
Rail Transit: Locomotive Traction System
Energy industry: wind power inverters, hydroelectric power control systems

5SHY4045L0006 same series model

35 series (voltage level 3.3kV~4.5kV, current around 3500A)
5SHY3545L0005
5SHY3545L0014
5SHY3545L0016
5SHY35L4510
5SHY35L4511
5SHY35L4512
5SHY35L451020
5SHY35L4521
5SHY35L4522
40 series (voltage level 3.3kV~4.5kV, current around 4000A)
5SHY4045L0001
5SHY4045L0003
5SHY4045L0004
5SHY4045L0006 (the model you are inquiring about)
5SHY4045L0007
5SHY40L4500
5SHY42L6500
50 series (4.5kV voltage level, around 5000A current)
5SHY5045L0020
5SHY50L5500
Other High Voltage Series
5SHY45L4520(4.5kV/2.24kA)
5SHY65L4521(6.5kV/4.5kA+)
