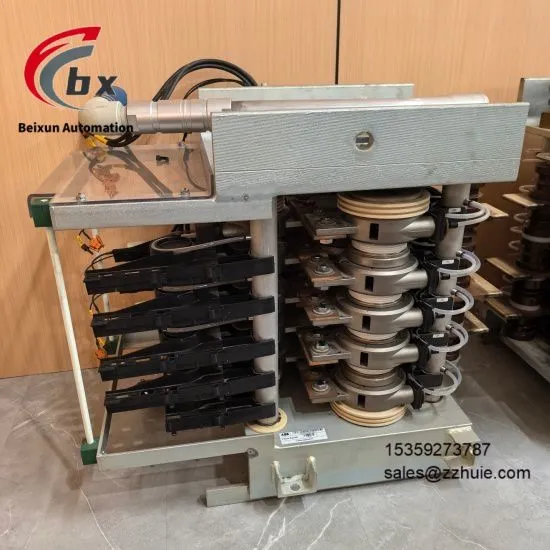

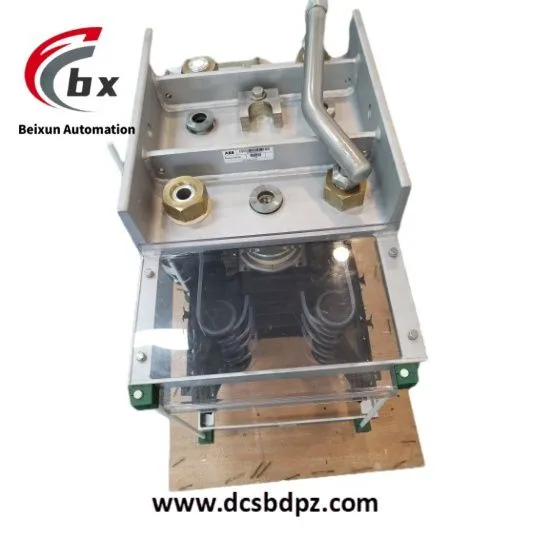

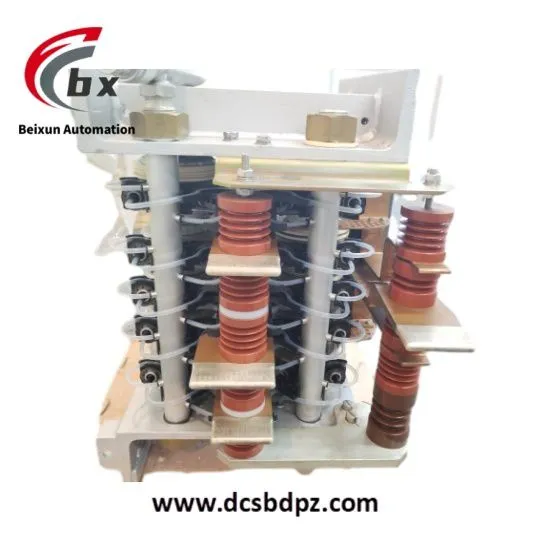

S-073N 3BHB009884R0021
Product DescriptionS-073N 3BHB009884R0021 is an industrial-grade standard high-voltage phase module developed by ABB for medium and high-voltage drive systems, core compatible with ABB ACS6000 series medium and high-voltage inverters and industrial drive equipment. Adopting Thyristor (SCR) semiconductor switching technology, the module’s core function is to realize precise conversion from direct current to alternating current, regulating output phase, frequency and voltage amplitude to ensure efficient energy transmission and low harmonic pollution. Complying with IEC 60947-5-1 international standards, the module features a modular architecture design that supports online hot-swapping and redundant configuration, withstands medium and high-voltage working conditions and harsh industrial environments, and serves as a key power electronic component to ensure stable operation of systems in scenarios such as medium and high-power motor drive and power system regulation.
Rated Insulation Voltage: 800V AC, suitable for medium and high-voltage power drive systems
Input Voltage: 24V DC ±10%, compatible with industrial standard power supply systems
Phase Measurement Accuracy: ±0.15°, ensuring precise phase regulation
Output Current: 10A, meeting the requirements of medium and high-power energy transmission
Voltage Withstand Strength: ≥2500V AC (1 minute no breakdown) between contacts, and between contacts and housing
Insulation Resistance: ≥1000MΩ (measured with 500V DC megohmmeter, normal temperature and state)
Protection Functions: Integrates overvoltage, overcurrent and short-circuit triple protection, fault response time ≤3ms
Communication Protocols: Supports Modbus and Profibus-DP industrial communication protocols for seamless system integration
Electrical Life: ≥800,000 cycle operations, adapting to long-term continuous operation
Total Harmonic Distortion (THD): ≤5%, meeting harmonic emission requirements of medium and high-voltage power grids
Certification Standards: CE (EMC/Low Voltage Directive), RoHS 2.0 compliant, meeting IEC 61800-3 standard
Mechanical ParametersOverall Dimensions: 115mm (H) × 70mm (W) × 105mm (D), standard modular design
Weight: Approximately 0.9kg, lightweight structure facilitates system integration and installation
Mounting Method: Rail mounting or panel fixing, adapting to standard layout of medium and high-voltage control cabinets
Housing Material: Flame-retardant reinforced engineering plastic (UL94 V-0 grade), impact-resistant and chemical corrosion-resistant
Connection Method: Screw-type terminal blocks, compatible with 0.8-3.0mm² wire gauge, wiring torque 1.0-1.5N·m
Module Architecture: Modular design, supporting hot-swapping and redundant configuration for easy maintenance and replacement
Status Indication: Dual-color LED indicators (operation: green; fault: red), providing intuitive feedback of working status
Environmental ParametersOperating Temperature: -25℃ to +70℃, covering extreme high and low temperature industrial working conditions
Storage Temperature: -40℃ to +85℃, meeting storage and transportation environment requirements
Relative Humidity: 5% to 95% (non-condensing), adapting to humid industrial scenarios
Protection Rating: IP20, suitable for installation and use in control cabinets
Vibration Resistance: 10-500Hz frequency range, 1.5g acceleration (sine wave), no structural loosening
EMC Compliance: Meets EN 55014-1 (emission limits) and EN 55014-2 (immunity) standards
Salt Spray Resistance: Compliant with IEC 60068-2-11 standard, suitable for coastal industrial scenarios
Precise phase control: ±0.15° measurement accuracy combined with thyristor technology, realizing efficient energy conversion and low harmonic output
Strong medium and high-voltage adaptability: 800V AC rated insulation voltage and 2500V AC voltage withstand strength, stably adapting to medium and high-voltage scenarios
Fast fault response: ≤3ms fault response time combined with triple protection mechanism, fully ensuring system operation safety
Stable environmental adaptability: Normal startup at -25℃ low temperature, no derated operation at +70℃ high temperature, withstanding harsh working conditions such as high dust and high humidity
Excellent integration compatibility: Supports mainstream industrial communication protocols, seamlessly collaborating with ACS6000 series inverters and third-party control systems
Efficient maintenance: Modular architecture and hot-swapping design, disassembly and replacement without interrupting the system, maintenance time ≤20 minutes
High operational stability: Industrial-grade components and low-harmonic design, Mean Time Between Failures (MTBF) ≥250,000 hours
Application AreasPower Industry (Medium and high-voltage motor control, substation excitation regulation, new energy power station combiner control)
Industrial Drive (Medium and high-power inverter systems, heavy machinery drive control)
Petroleum and Chemical Industry (Oil and gas extraction equipment drive, medium reactor control circuit)
Metallurgical Industry (Small and medium-sized rolling mill equipment drive, blast furnace auxiliary fan control)
Rail Transit (Urban rail transit auxiliary power supply control, platform equipment drive)
Water Treatment (Medium water supply pump group high-voltage control, sewage treatment equipment speed control drive)
Building Materials Industry (Cement production line fan drive, glass manufacturing equipment high-voltage control)
S-071N 3BHB009884R0020 (Single-channel medium and high-voltage phase module)
S-072N 3BHB009884R0022 (Two-channel medium and high-voltage phase module)
S-074N 3BHB009884R0024 (Four-channel medium and high-voltage phase module)
S-073H 3BHB009884R0025 (Enhanced high-voltage phase module)
S-073S 3BHB009884R0026 (Medium-voltage power enhanced module)
S-075N 3BHB009884R0027 (Five-channel medium and high-voltage phase module)
