Product Description：

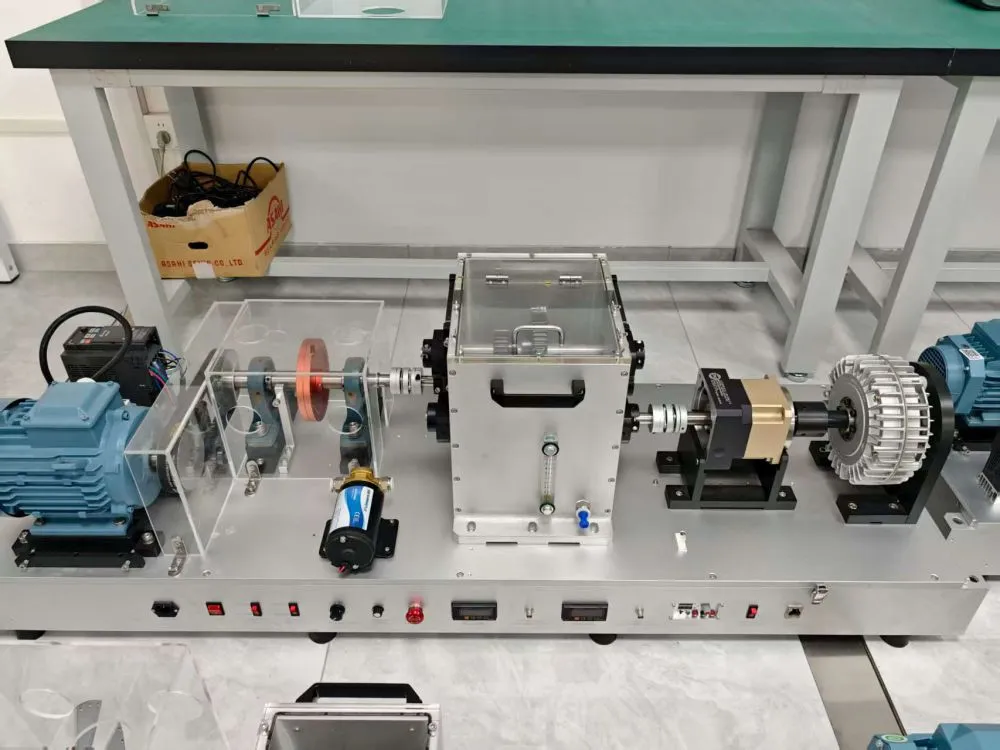

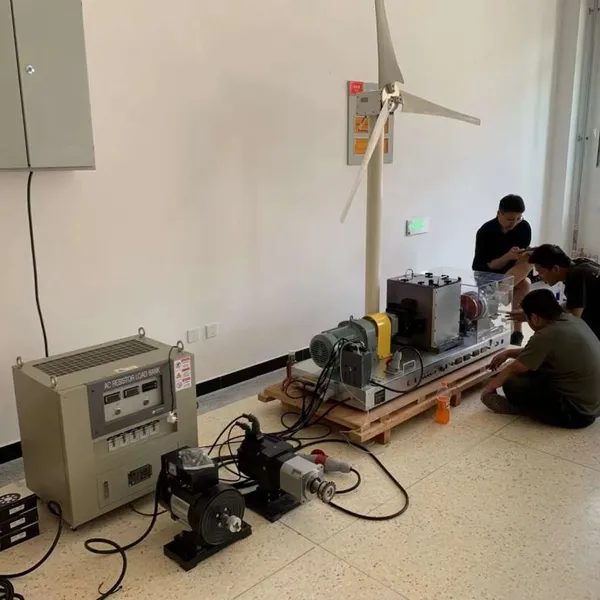

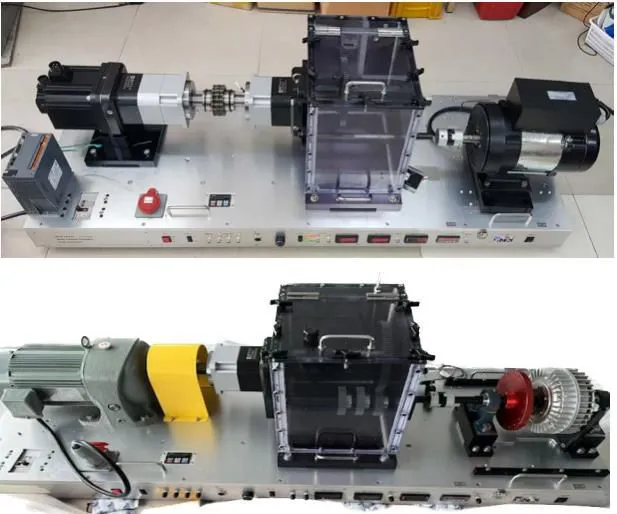

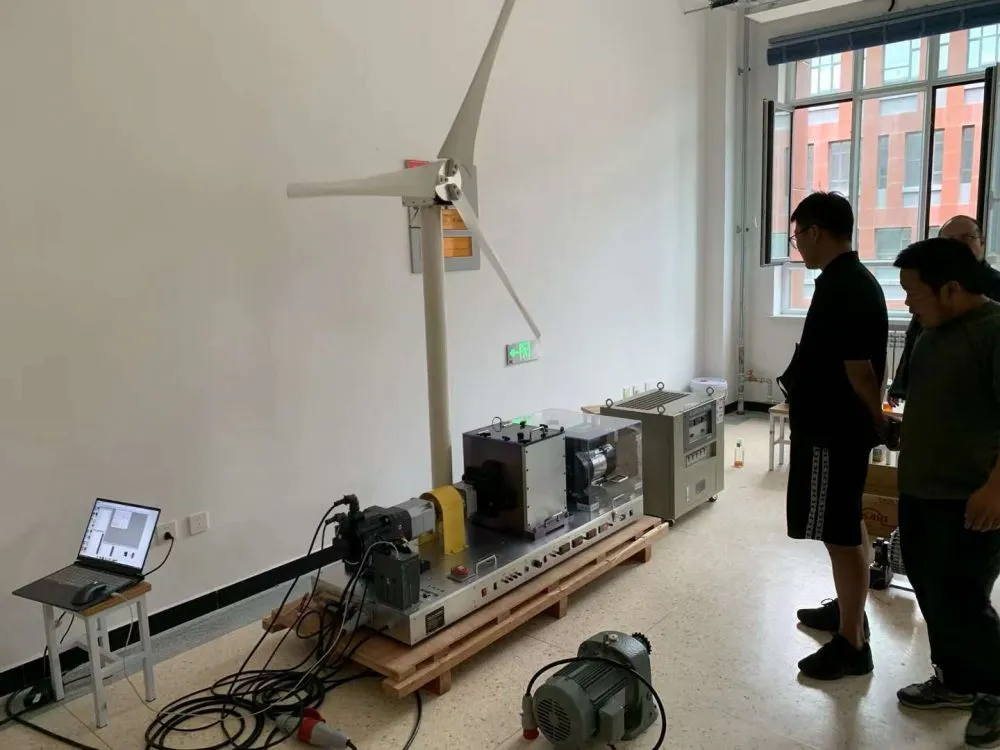

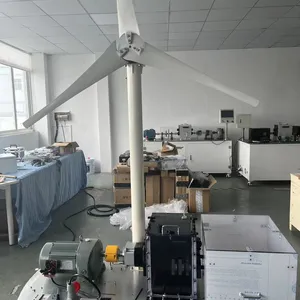

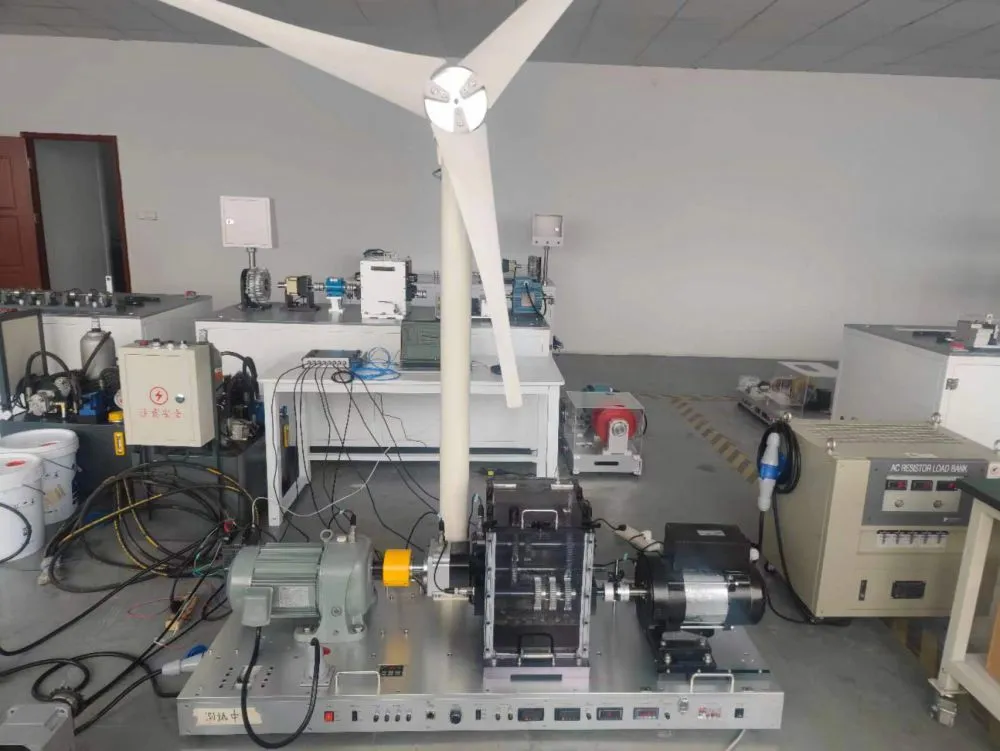

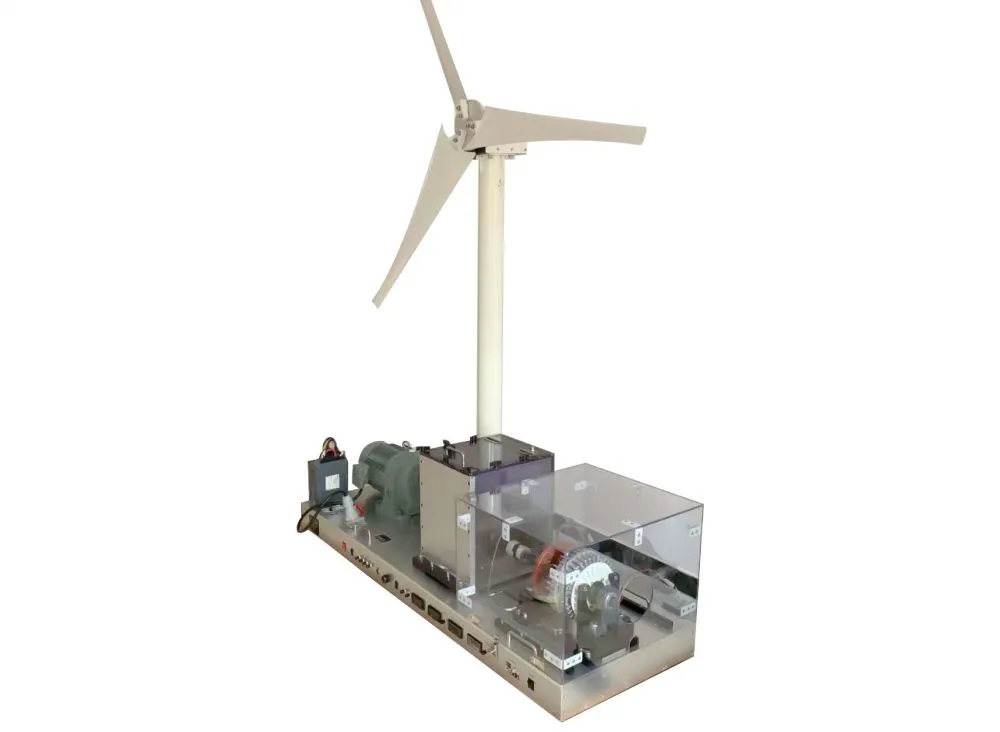

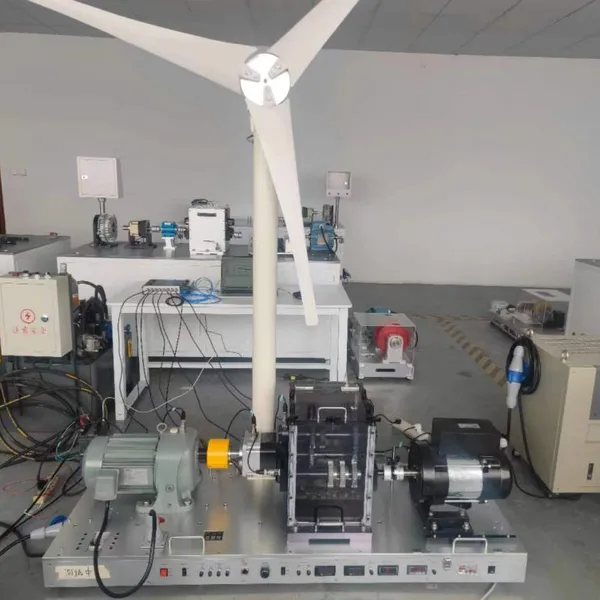

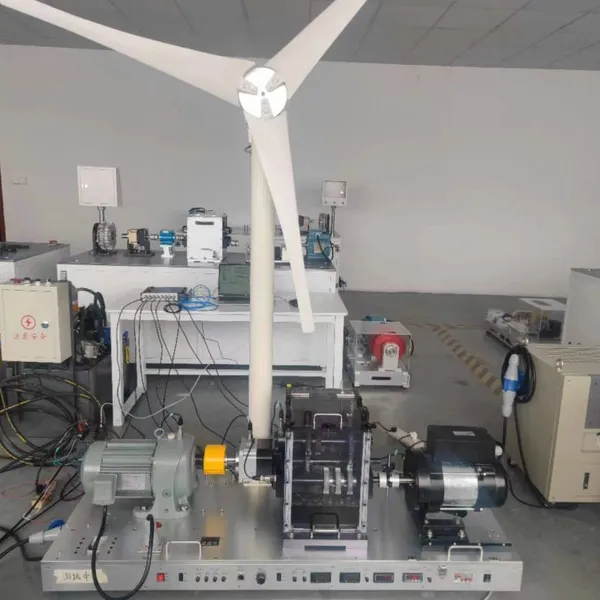

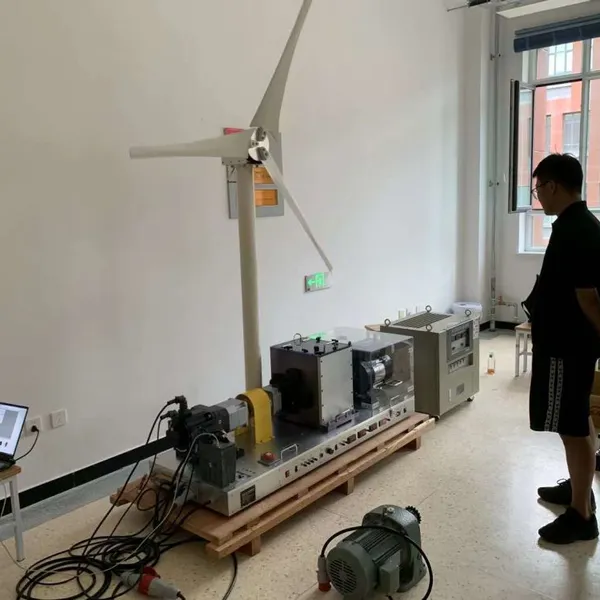

It mainly consists of low-speed blade stage, three-phase asynchronous reduction motor or servo reduction motor, two-stage parallel shaft gearbox, double support test bearing seat unit, planetary gearbox, magnetic powder brake, speed regulation and display module, current display module, temperature display module, load display adjustment module, speed pulse output module, safety protection magnetic suction power-off protection switch system, RUZ frequency converter communication module, resistance energy consumption unit, permanent magnet generator, and DC motor simulated blade.
Function：
•Basic vibration measurement.
•The optimal choice for the position of vibration sensors.
•Research on the misalignment effect.
•Discovery and correction of soft feet.
•Research on bearing failure.
•Gear failure analysis.
•Oil fluid analysis & Debris analysis.
•Analysis of planetary gear failure.
•Practice of mechanical condition monitoring.
•Generator fault analysis.
•Low speed bearing fault detection.
•Research on gear backlash effect.
•Time domain waveform, frequency analysis.
•Practice of multistage shaft alignment.
•Start stop test.
•Time domain frequency signal analysis of bearing faults.
Basic Technical Parameters：
Three-phase asynchronous drive geared motors |
Three-phase AC motor, power 3.7KW, 110V-220V |
Servo drive motors and drives |
3.5KW, 2000 rpm, reduction ratio: 1:50 |
Parallel gearbox |
Gearbox 2 stage 3-axis spur gearbox, reduction ratio: 1:4.05 |
Planetary gear parameters |
Single-stage drive, reduction ratio:10:1 |
Fault bearings |
Ball bearing, UCPH206, inner diameter 30 mm, 5 types of failure (bearing inner ring, outer ring, ball, cage, combined failure) |
Adjustable magnetic powder brake parameters |
Rated torque: 50Nm |
Magnetic powder control display module |
7-segment LED display of current value, and loading voltage value |
Permanent magnet generator |
Frequency, 50Hz, rated power 4KW, rated voltage 110V-220V, maximum power 4.2kW |
Resistive energy consumption unit |
Load capacity: AC 3.7kW, load input voltage: AC 110V-220Vac single-phase |
Simulated blades |
Three blades, blade length 1.5 meters, 24V DC motor drive |
Size/Weight |
1700mm x 600 mm x 600mm，500kg |
