PT400MINI Machinery Fault Simulator Micro Version

Product Description：

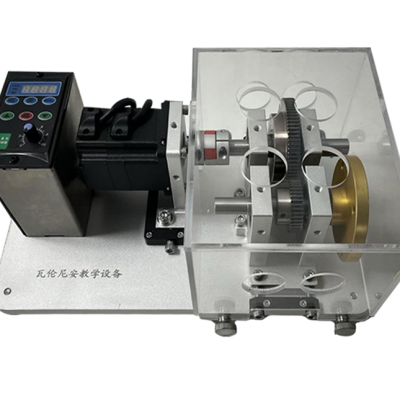

The Valenian PT400 Mini is a compact, modular vibration fault simulation platform designed for educational and research purposes in mechanical fault diagnostics. It enables users to simulate and analyse various common faults in rotating machinery.

Configuration：

Modular Design: The PT400 Mini features a modular setup that allows for quick configuration between different rotor types, including simply supported and cantilevered rotors.

The PT400mini can be customized into different styles for installing acceleration sensors or eddy current displacement sensors according to user needs. Users can also choose to connect it using a plug-in power supply or a portable power bank.

Function：

Static, couple, and dynamic unbalance

Misalignment

Looseness

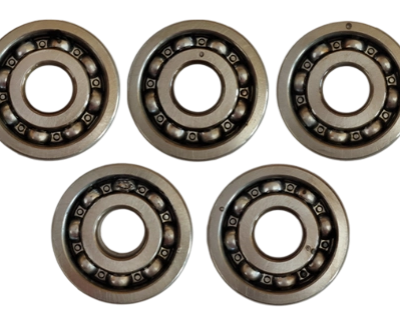

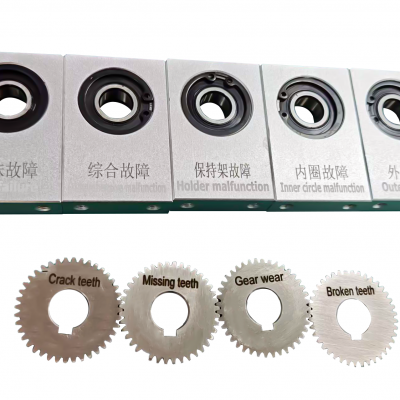

Bearing defects (inner ring, outer ring, rolling element, cage)

Gear fault simulation:（missing gear, broken gear, wear, cracks）

Eccentricity

Resonance conditions

Sensor Integration: The platform supports various sensors, including vibration acceleration sensors, photoelectric phase sensors, and eddy current probes, facilitating comprehensive data collection and analysis.

Basic Technical Parameters：

Power Supply: Single-phase 0-220V AC, 50Hz/60Hz

Power Consumption: Less than 120W

Speed Range: 0–3000 RPM, adjustable via a knob with LCD display

Material: Aluminium alloy with anodized surface treatment

Dimensions: 350 x 120 x 120 mm

Weight: Approximately 6.5 kg
