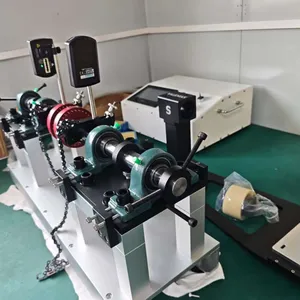

Help CenterSAT-500-2 Tabletop Mechanical Shaft Alignment Trainer
Related Products
-
Vibration Analysis Training SystemNegotiableMOQ: 1 Combo -
Rotating Machinery Vibration Analysis and Fault Diagnosis Experimental PlatformNegotiableMOQ: 1 Barrel
-
Vibration Monitoring and Diagnostics LabNegotiableMOQ: 1 Barrel
-
Gear Drive SimulatorNegotiableMOQ: 1 Blade
-
Vibration Test Bench Drivetrain Diagnostics Simulator PT500miniUS$ 21 - 120MOQ: 1 Carton
VALENIAN-SAT500-Multiple Machine Train Shaft Alignment Trainer
I. Introduction to the Test Bench
Misalignment is one of the most common causes of mechanical equipment failure. Machines with poorly aligned shafts can cause unplanned plant downtime, premature part failure, and a 20% to 30% increase in energy costs.
Impacts of Misalignment
Increased Downtime: Frequent breakdowns and repairs lead to increased equipment downtime.
Increased Maintenance Costs: Frequent part replacement and repairs increase maintenance costs.
Increased Energy Consumption: Misaligned machines are generally less efficient and consume more energy.
Shorter Equipment Life: Continuous misalignment causes premature wear on equipment, shortening its service life.
SAT-500 |
（Used for laser alignment instrument、Dial gauge centering mode） |
1 Basic installation base plate 2 bracket 4 rolling bearing 4 Digital display dial indicator 2 flange coupling shim 8 left and right position adjustment bolts 8 Tightening bolts at the bottom corner 2 shaft |
SAT-500 |

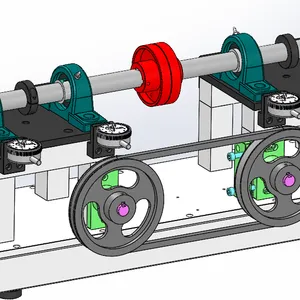

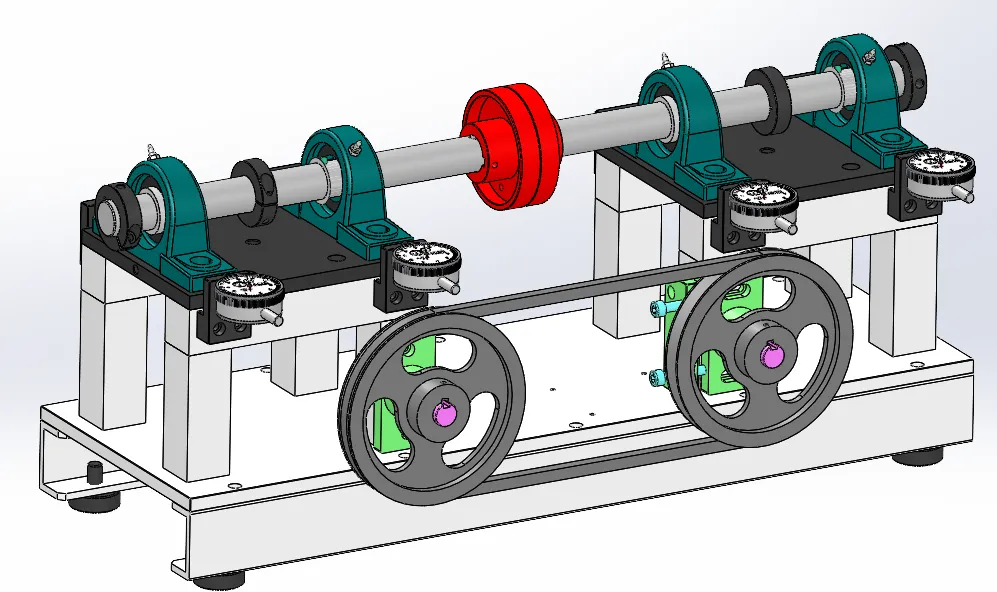

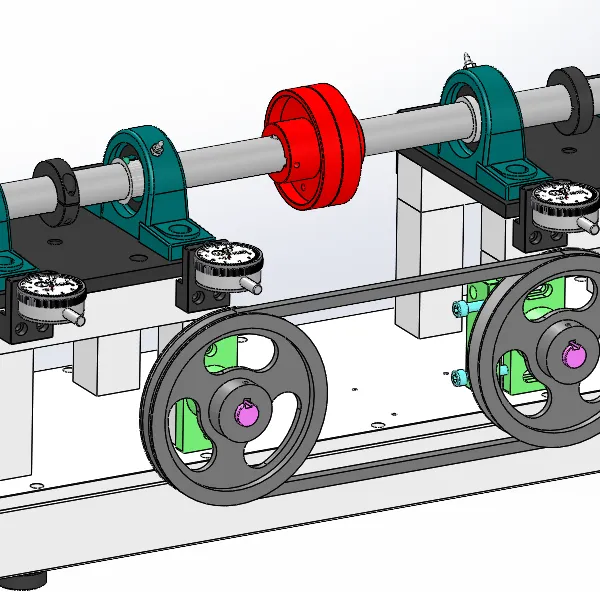

（Used for laser alignment instrument、Dial gauge centering mode、equipped with belt pulley simulation alignment function） |
1 Basic installation base plate 2 bracket 4 rolling bearing 4 Digital display dial indicator 2 flange coupling shim 8 left and right position adjustment bolts 8 Tightening bolts at the bottom corner 2 shaft 2 pulley 1 belt 1 Belt pulley adjustment structure |

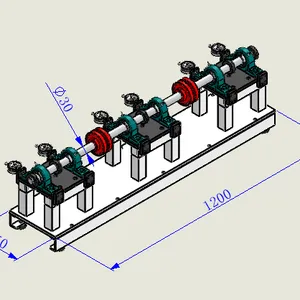

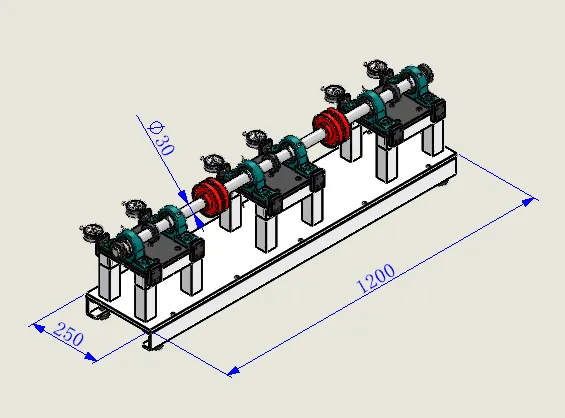

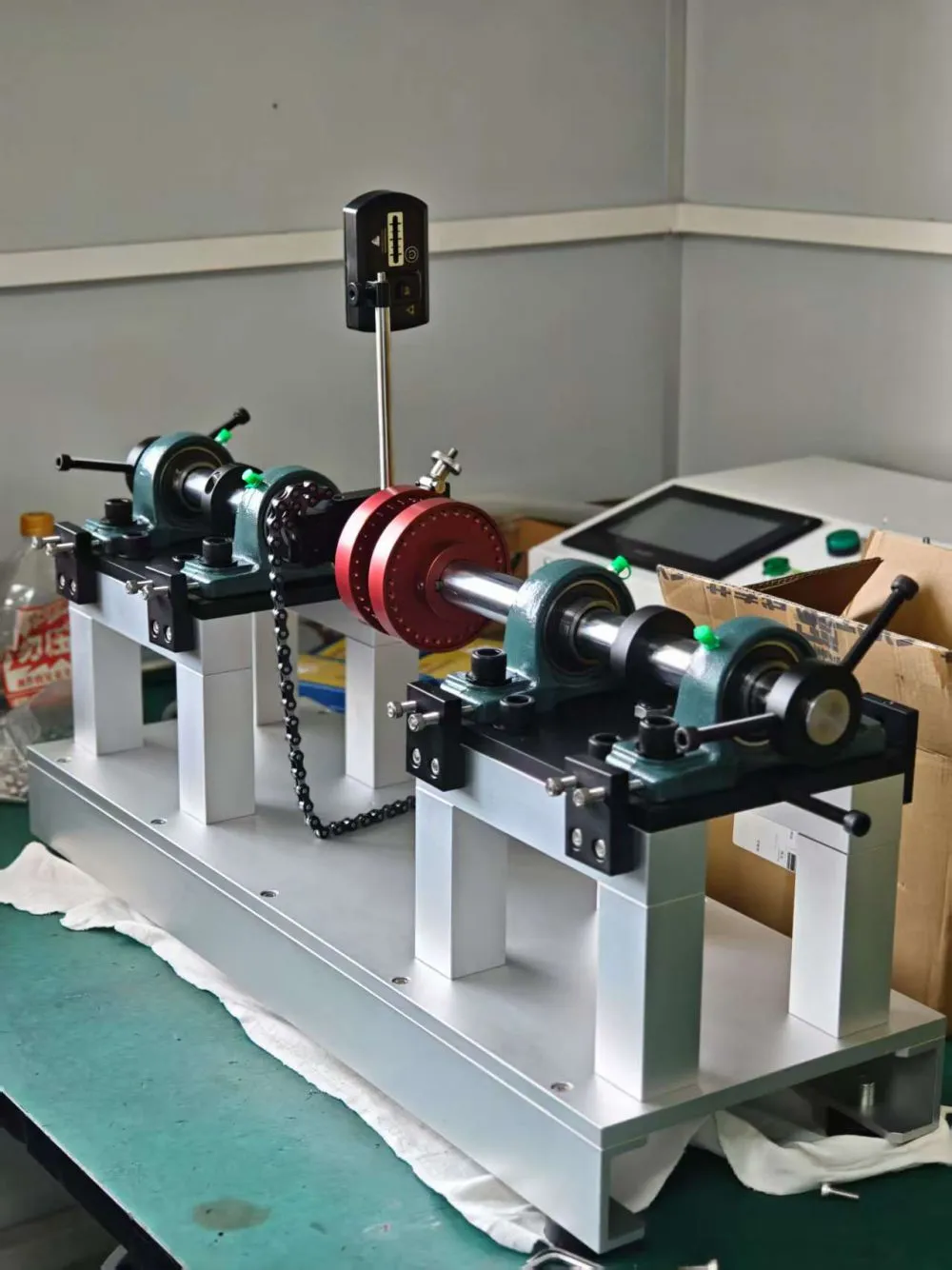

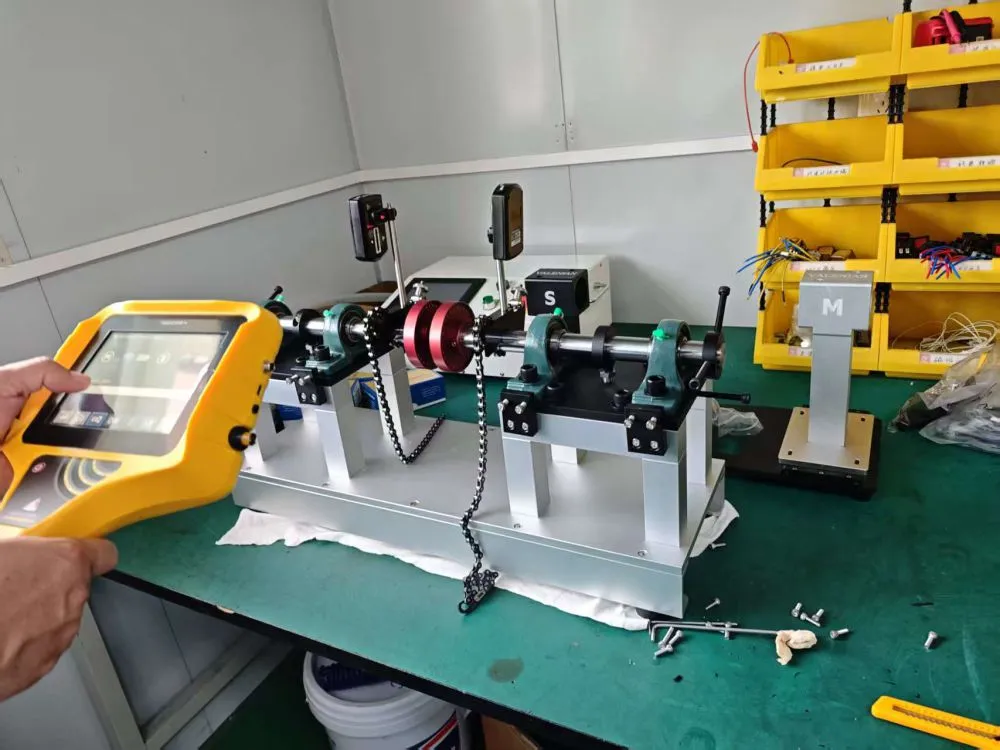

SAT-500-2 |
（Used for laser alignment instrument、Dial gauge centering mode、Dual span axis centering simulator） |
1 Basic installation base plate 3 bracket 6 rolling bearing 6 Digital display dial indicator 4 flange coupling shim 12 left and right position adjustment bolts 12Tightening bolts at the bottom corner 3 shaft |
SAT-500-2P |
（Used for laser alignment instrument、Dial gauge centering mode、equipped with belt pulley simulation alignment function、Dual span axis centering simulator） |
1 Basic installation base plate 3 bracket 6 rolling bearing 6 Digital display dial indicator 4 flange coupling shim 12 left and right position adjustment bolts 12Tightening bolts at the bottom corner 3 shaft 2 pulley 1 belt 1 Belt pulley adjustment structure |
